Inspection [03/2018 - ]: Procedure

  1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH
    1. Apply battery voltage to the rear combination light assembly LH and check that the lights come on.

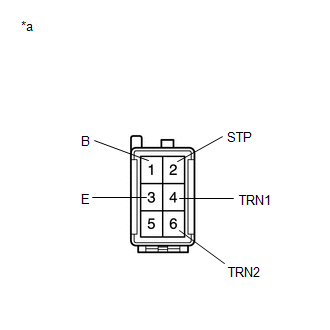

      GTY633403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Rear Combination Light Assembly LH)

      OK

      Condition Specified Condition
      Battery positive (+) → Terminal 1 (B)
      Battery negative (-) → Terminal 3 (E)      		 Taillight comes on
      Battery positive (+) → Terminal 2 (STP)
      Battery negative (-) → Terminal 3 (E)      		 Stop light comes on
      Battery positive (+) → Terminal 4 (TRN)
      Battery negative (-) → Terminal 3 (E)      		 Turn signal light comes on*1
      Battery positive (+) → Terminal 4 (TRN1) and 6 (TRN2)
      Battery negative (-) → Terminal 3 (E)      		 Turn signal light comes on*2
      1. *1: for Turn Signal Light Bulb Type
      2. *2: for Turn Signal Light LED Type

      If the result is not as specified, replace the rear combination light assembly LH.

  2. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH
    1. Apply battery voltage to the rear combination light assembly RH and check that the lights come on.
      GTY633398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Rear Combination Light Assembly RH)

      OK

      Condition Specified Condition
      Battery positive (+) → Terminal 1 (B)
      Battery negative (-) → Terminal 3 (E)      		 Taillight comes on
      Battery positive (+) → Terminal 2 (STP)
      Battery negative (-) → Terminal 3 (E)      		 Stop light comes on
      Battery positive (+) → Terminal 4 (TRN1)
      Battery negative (-) → Terminal 3 (E)      		 Turn signal light comes on*1
      Battery positive (+) → Terminal 4 (TRN1) and 6 (TRN2)
      Battery negative (-) → Terminal 3 (E)      		 Turn signal light comes on*2
      1. *1: for Turn Signal Light Bulb Type
      2. *2: for Turn Signal Light LED Type

      If the result is not as specified, replace the rear combination light assembly RH.
