Removal [08/2019 - ]: Procedure

Refer to REMOVAL [08/2019 - ]

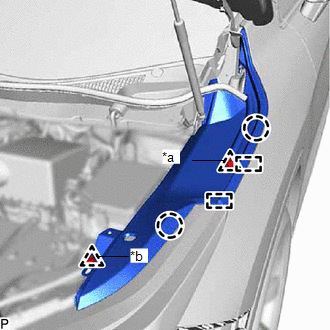

1. Remove the center hood cushion and clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Center Hood Cushion
   *b	Clip

2. Disengage the 2 claws and 2 guides to disconnect the front fender reinforcement sub-assembly top.

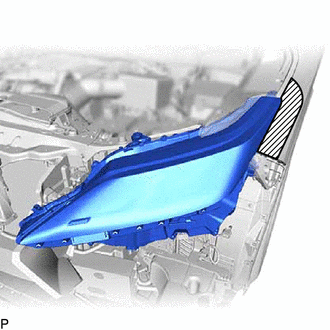

1. Apply protective tape around the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

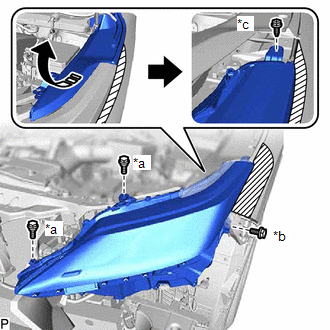

2. Remove the 2 bolts <A> and bolt <B>.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt <A>
   *b	Bolt <B>
   *c	Screw
   	Pull Back in this Direction

3. Pull back the front fender reinforcement sub-assembly top and remove the screw as shown in the illustration.

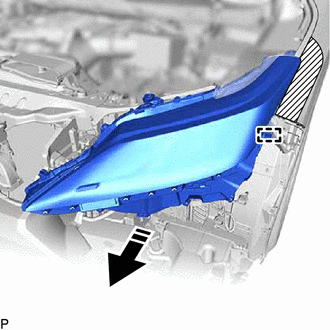

4. Disengage the guide to separate the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Separate in this Direction

5. w/o Automatic Headlight Beam Level Control System:

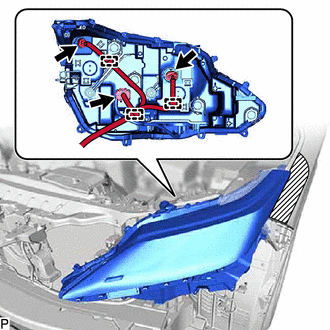

   1. Disengage the 3 clamps.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Disconnect the 3 connectors to remove the headlight assembly.
6. w/ Automatic Headlight Beam Level Control System:

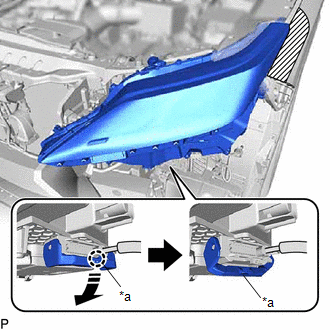

   1. Disengage the claw, pull down the connector lock lever as shown in the illustration and disconnect the connector.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Connector Lock Lever
      	Disconnect in this Direction

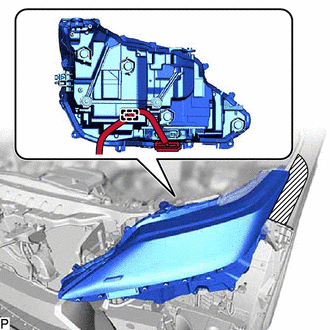

   2. Disengage the clamp to remove the headlight assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
