Reassembly [08/2019 - ]: Procedure

  1. INSTALL HEADLIGHT UNIT
  2. INSTALL HEADLIGHT GASKET (w/ Automatic Headlight Beam Level Control System)

    Refer to PROCEDURE - Step 1

  3. INSTALL NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (w/ Automatic Headlight Beam Level Control System)

    Refer to PROCEDURE - Step 2

  4. INSTALL FRONT SIDE MARKER LIGHT SOCKET (for Bulb Type Turn Signal Light)
  5. INSTALL FRONT SIDE MARKER LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Install the front side marker light bulb to the front side marker light socket.

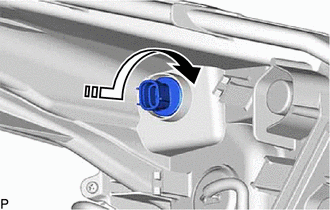

    2. Turn the front side marker light socket with the front side marker light bulb as shown in the illustration to install them as a unit.
      GTY960591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Connect the connector.
  6. INSTALL FRONT TURN SIGNAL LIGHT SOCKET (for Bulb Type Turn Signal Light)
  7. INSTALL FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Install the front turn signal light bulb to the front turn signal light socket.

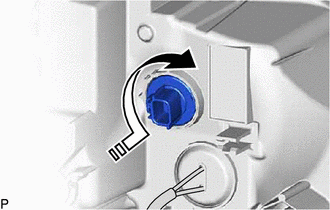

    2. Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.
      GTY960808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Connect the connector.
