Components [08/2019 - ]

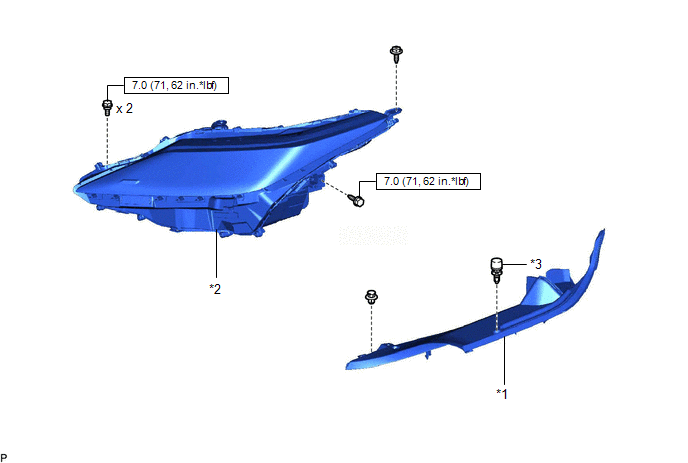

Fig 1: Headlight Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP	*2	HEADLIGHT ASSEMBLY
*3	CENTER HOOD CUSHION	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

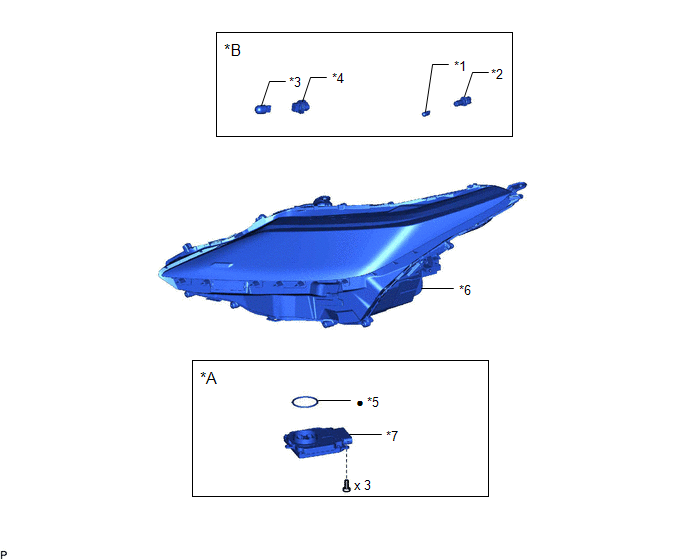

Fig 2: Headlight Assembly Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Automatic Headlight Beam Level Control System	*B	for Bulb Type Turn Signal Light
*1	FRONT SIDE MARKER LIGHT BULB	*2	FRONT SIDE MARKER LIGHT SOCKET
*3	FRONT TURN SIGNAL LIGHT BULB	*4	FRONT TURN SIGNAL LIGHT SOCKET
*5	HEADLIGHT GASKET	*6	HEADLIGHT UNIT
*7	NO. 1 HEADLIGHT ECU SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

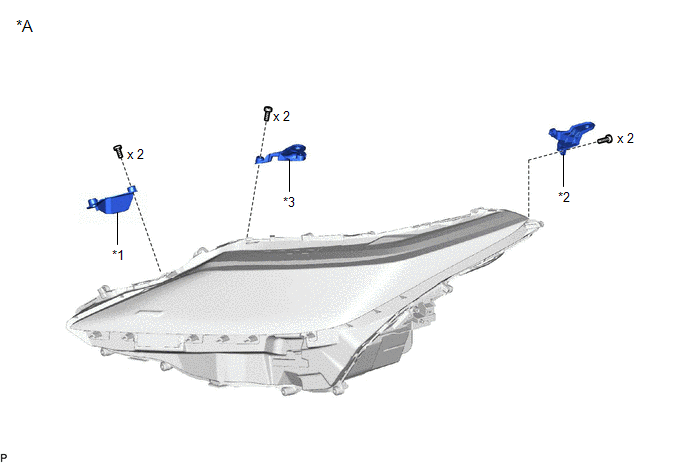

Fig 3: Headlight Assembly Replacement Components (3 Of 3)

*A	Bracket for Repair	-	-
*1	LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER	*2	UPPER HEADLIGHT PROTECTOR RETAINER
*3	UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER	-	-
