DTC B2410: Headlight Swivel Motor LH Communication Malfunction; DTC B2411: Headlight Swivel Motor RH Communication Malfunction [10/2015 - 08/2019]: Wiring Diagram

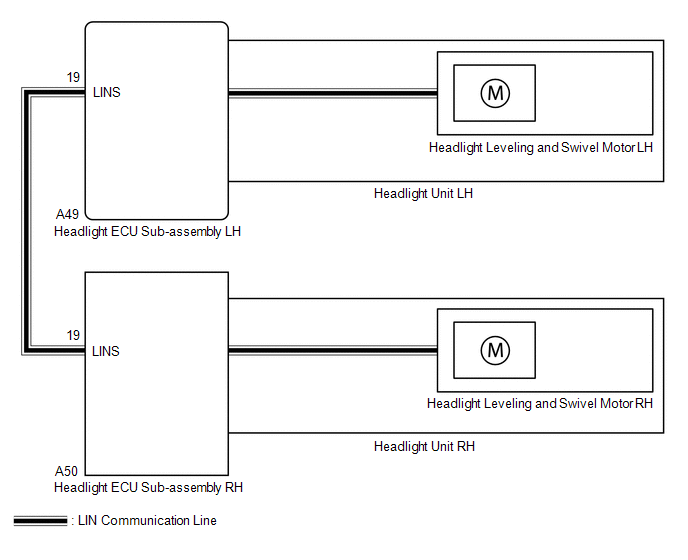

Fig 1: Headlight ECU Sub-Assembly Wiring Diagram
GTY616673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
