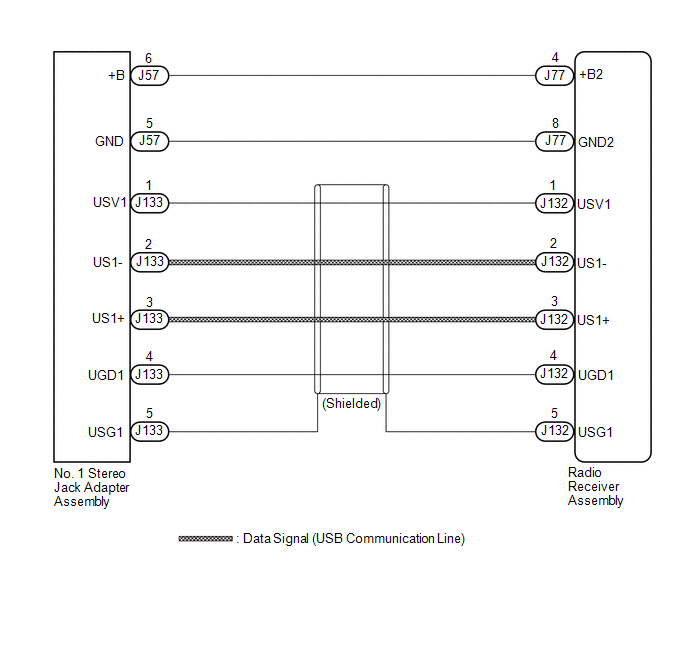

USB Audio System Recognition/Play Error [12/2017 - 08/2019]: Wiring Diagram

GTY676023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
