Components [10/2015 - 12/2017]

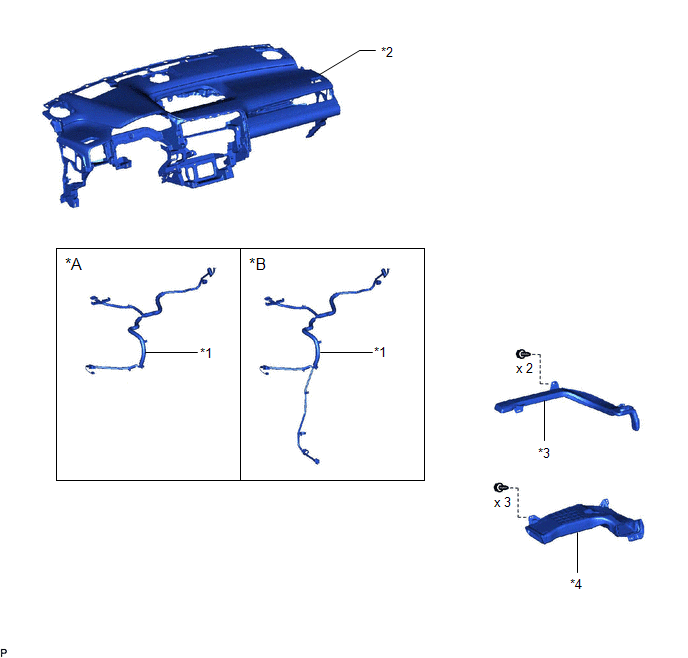

Fig 1: Radio Antenna Cord (w/o Rear No. 2 Seat) Replacement Components [10/2015 - 12/2017] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Manual (SOS) Switch	*B	w/ Manual (SOS) Switch
*1	ANTENNA CORD SUB-ASSEMBLY	*2	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*3	NO. 2 SIDE DEFROSTER NOZZLE DUCT	*4	NO. 4 HEATER TO REGISTER DUCT

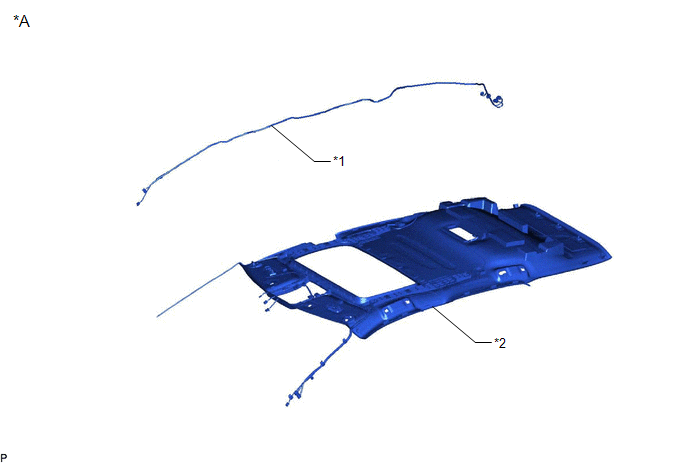

Fig 2: Radio Antenna Cord (w/o Rear No. 2 Seat) Replacement Components [10/2015 - 12/2017] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Sliding Roof	-	-
*1	NO. 2 ANTENNA CORD SUB-ASSEMBLY	*2	ROOF HEADLINING ASSEMBLY

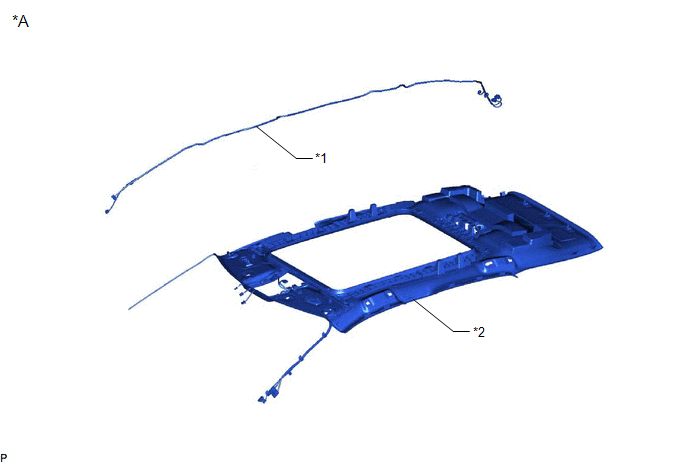

Fig 3: Radio Antenna Cord (w/o Rear No. 2 Seat) Replacement Components (3 Of 4)

*A	for Panoramic Moon Roof	-	-
*1	NO. 2 ANTENNA CORD SUB-ASSEMBLY	*2	ROOF HEADLINING ASSEMBLY

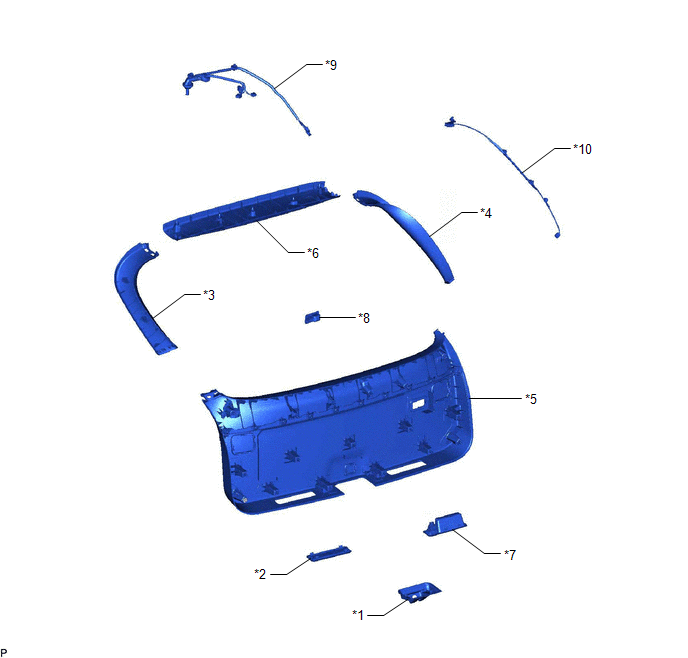

Fig 4: Radio Antenna Cord (w/o Rear No. 2 Seat) Replacement Components (4 Of 4)

*1	BACK DOOR LOCK COVER	*2	BACK DOOR TRIM BASE
*3	BACK DOOR TRIM COVER LH	*4	BACK DOOR TRIM COVER RH
*5	BACK DOOR TRIM PANEL ASSEMBLY	*6	BACK WINDOW UPPER PANEL TRIM
*7	DOOR PULL HANDLE	*8	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
*9	NO. 3 ANTENNA CORD SUB-ASSEMBLY	*10	NO. 4 ANTENNA CORD SUB-ASSEMBLY
