Components [03/2018 - 08/2019]
| *A | w/o Manual (SOS) Switch | *B | w/ Manual (SOS) Switch |
| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *3 | NO. 2 SIDE DEFROSTER NOZZLE DUCT | *4 | NO. 4 HEATER TO REGISTER DUCT |

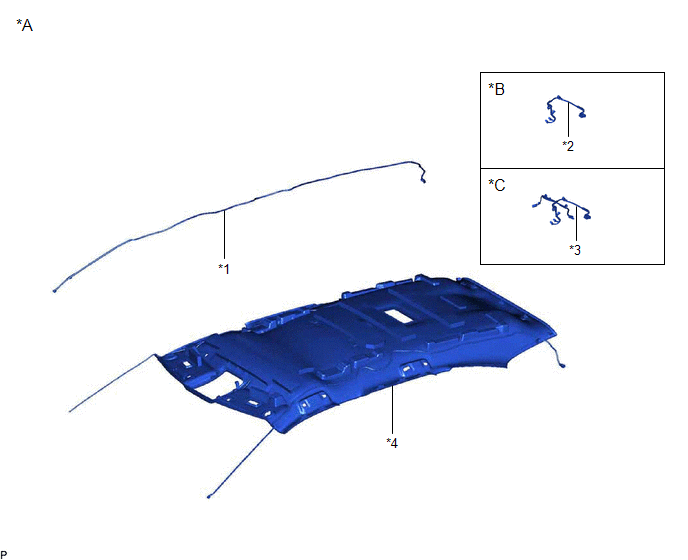

| *A | for Standard Roof | *B | w/o Satellite Radio |
| *C | w/ Satellite Radio | - | - |
| *1 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *2 | NO. 5 ANTENNA CORD SUB-ASSEMBLY |
| *3 | NO. 6 ANTENNA CORD SUB-ASSEMBLY | *4 | ROOF HEADLINING ASSEMBLY |

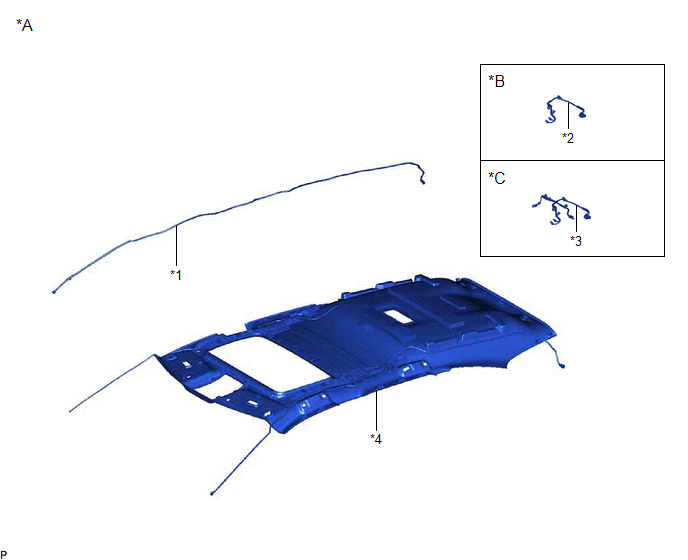

| *A | for Sliding Roof | *B | w/o Satellite Radio |
| *C | w/ Satellite Radio | - | - |
| *1 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *2 | NO. 5 ANTENNA CORD SUB-ASSEMBLY |
| *3 | NO. 6 ANTENNA CORD SUB-ASSEMBLY | *4 | ROOF HEADLINING ASSEMBLY |

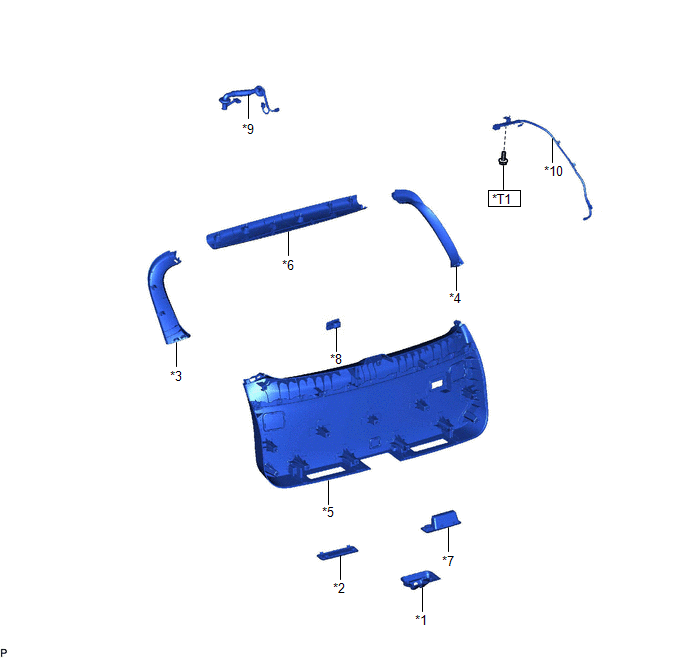

Fig 4: Radio Antenna Cord (w/ Rear No. 2 Seat) Replacement Components With Torque Specifications [03/2018 - 08/2019] (4 Of 4)
| Callout | Description | Callout | Description |
| *1 | BACK DOOR LOCK COVER | *2 | BACK DOOR TRIM BASE |
| *3 | BACK DOOR TRIM COVER LH | *4 | BACK DOOR TRIM COVER RH |
| *5 | BACK DOOR TRIM PANEL ASSEMBLY | *6 | BACK WINDOW UPPER PANEL TRIM |
| *7 | DOOR PULL HANDLE | *8 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *9 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *10 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - | |
| *T1 | for Type A: 8.35 (85, 74 in.*lbf) for Type B: 10 (102, 7) |
- | - |
