Components [10/2015 - ]

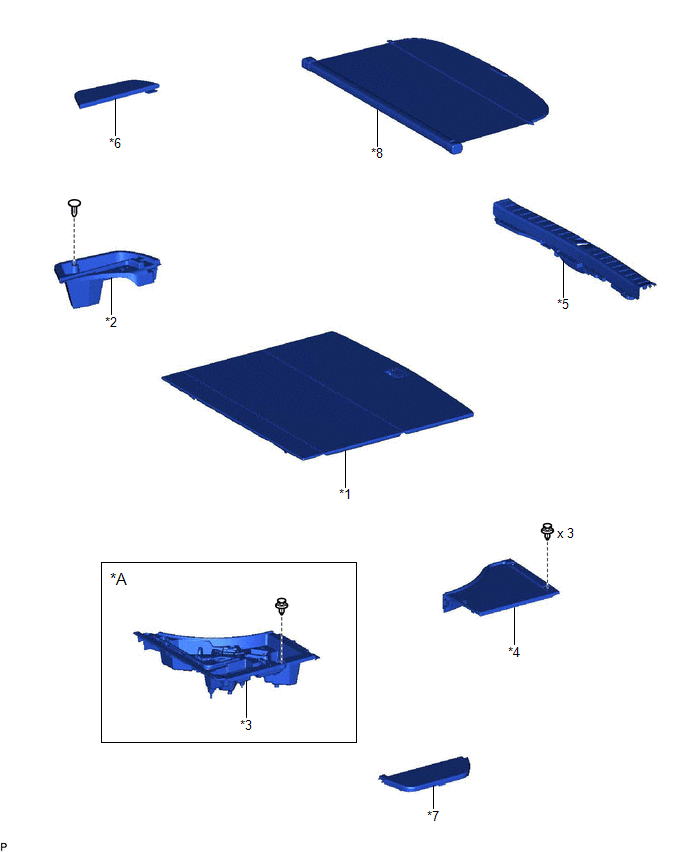

| *A | for LH Side | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX RH |
| *3 | FRONT DECK FLOOR BOX | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | *6 | REAR NO. 3 FLOOR BOARD |
| *7 | REAR NO. 4 FLOOR BOARD | *8 | TONNEAU COVER ASSEMBLY |

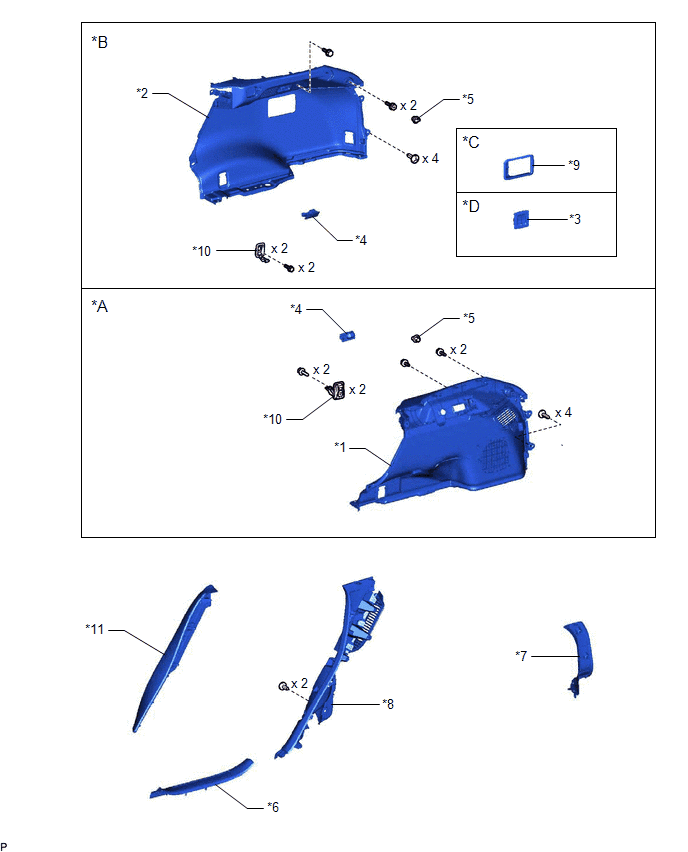

| *A | for LH Side | *B | for RH Side |
| *C | w/o Rear Power Seat System | *D | w/ Rear Power Seat System |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | DECK TRIM SIDE PANEL ASSEMBLY RH |
| *3 | FOLD SEAT SWITCH ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | REAR DOOR SCUFF PLATE LH |
| *7 | REAR FLOOR FINISH SIDE PLATE LH | *8 | REAR SEAT SIDE GARNISH LH |
| *9 | RECLINING REMOTE CONTROL BEZEL RH | *10 | ROPE HOOK ASSEMBLY |
| *11 | UPPER QUARTER TRIM PAD LH | - | - |

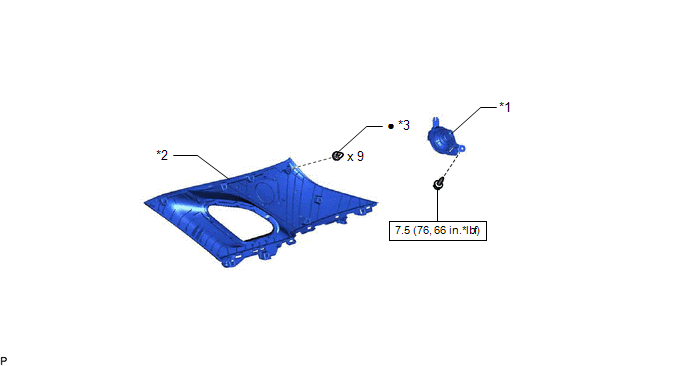

Fig 3: Quarter Trim Speaker (w/o Rear No. 2 Seat) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | QUARTER SIDE SPEAKER ASSEMBLY | *2 | ROOF SIDE INNER GARNISH ASSEMBLY LH |
| *3 | CLIP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
