Removal [03/2018 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  3. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 3 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  4. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 4 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  5. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 5 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  6. REMOVE NO. 1 DECK BOARD

    Refer to PROCEDURE - Step 6 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  7. DISCONNECT REAR NO. 2 SEAT ASSEMBLY

    Refer to PROCEDURE - Step 7 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  8. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 8 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  9. REMOVE FRONT DECK FLOOR BOX

    Refer to PROCEDURE - Step 9 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  10. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 10 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 10 [08/2019 - ]

  11. REMOVE REAR NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

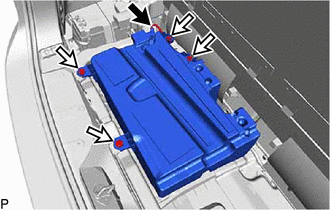

    1. Disconnect the connector.
      GTY814847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and rear No. 3 speaker assembly.
