Removal [03/2018 - ]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM

    Refer to PROCEDURE - Step 2 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  2. REMOVE BACK DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 4 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 7 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  5. REMOVE BACK DOOR TRIM BASE

    Refer to PROCEDURE - Step 8 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  6. REMOVE DOOR PULL HANDLE

    Refer to PROCEDURE - Step 9 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 12 [03/2018 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  9. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

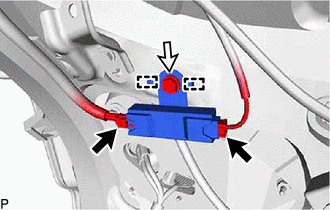

    1. Disconnect 2 connectors.
      GTY814857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the 2 guides to remove the No. 1 amplifier antenna assembly.
