Diagnosis System [08/2018 - 08/2019]

CHECK FOR INSTALLED SYSTEMS (ECUS AND SENSORS) THAT USE CAN COMMUNICATION

The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed to the vehicle.

Bus	ECU/Sensor Name	Techstream Display	Applicability
V bus	Network gateway ECU	CAN Gateway1	Installed on all vehicles
Bus 1	Clearance warning ECU assembly	Clearance Warning (Intuitive Parking Assist)	Installed on all vehicles
	Parking assist ECU	Panoramic View Monitor	Vehicles with panoramic view monitor system
	Forward recognition camera	Front Camera Module	Installed on all vehicles
	Millimeter wave radar sensor assembly	Front Radar	Installed on all vehicles
	Front television camera assembly	Front Camera	Installed on all vehicles
	Driving support ECU assembly	Driving Support (Cruise Control-ACC)	Installed on all vehicles
	Side camera RH (outer rear view mirror assembly RH)	Side Camera RH	Vehicles with panoramic view monitor system
	Side camera LH (outer rear view mirror assembly LH)	Side Camera LH	Vehicles with panoramic view monitor system
	Rear television camera assembly	Parking Assist Monitor System	Installed on all vehicles
	Blind spot monitor sensor LH	Blind Spot Monitor Master	Installed on all vehicles
Bus 2	ECM assembly	ECM (Engine)	Installed on all vehicles
	Hybrid vehicle control ECU assembly	Hybrid Vehicle Control	Installed on all vehicles
	Skid control ECU assembly	Skid Control (ABS/VSC/TRAC)	Installed on all vehicles
Bus 3	Telematics transceiver	DCM	Vehicles with manual (SOS) switch
Bus 3	Radio receiver assembly	Display and Navigation (AVN)	Installed on all vehicles
Bus 4	Skid control ECU assembly	Skid Control (ABS/VSC/TRAC)	Installed on all vehicles
	ECM assembly	ECM (Engine)	Installed on all vehicles
	Tire pressure warning ECU and receiver	Tire Pressure	Installed on all vehicles
	Absorber control ECU	Suspension Control (Air Suspension)	Vehicles with AVS
	Hybrid vehicle control ECU assembly	Hybrid Vehicle Control	Installed on all vehicles
	Parking brake ECU assembly	Electric Parking Brake	Installed on all vehicles
	Power steering ECU assembly	Power Steering (EPS)	Installed on all vehicles
	Steering sensor	Spiral cable (Steering Angle Sensor)	Installed on all vehicles
	Occupant detection ECU	Occupant Detection	Installed on all vehicles
	Yaw rate sensor assembly	Yaw Rate Sensor	Installed on all vehicles
	Airbag sensor assembly	Airbag	Installed on all vehicles
Bus 5	Certification ECU (smart key ECU assembly)	Certification (Smart)	Installed on all vehicles
	Combination meter mirror ECU (headup display)	Head Up Display	Vehicles with headup display system
	Headlight ECU sub-assembly LH	Headlight swivel (AFS)	Vehicles with automatic headlight beam level control system
	Combination meter assembly	Combination Meter	Installed on all vehicles
	Air conditioning amplifier assembly	Air Conditioning Amplifier	Installed on all vehicles
	Main body ECU (multiplex network body ECU)	Main Body	Installed on all vehicles
Sub bus 1	Main body ECU (multiplex network body ECU)	-	Installed on all vehicles
	Outer mirror control ECU assembly (for front passenger side)	Outer Mirror Control (R Seat)	Installed on all vehicles
	Outer mirror control ECU assembly (for driver side)	Outer Mirror Control (L Seat)	Installed on all vehicles
	Position control ECU and switch assembly LH	D-Seat	Installed on all vehicles
	Multiplex tilt and telescopic ECU	Multiplex Tilt and Telescopic	Installed on all vehicles
	Multiplex network door ECU	Back Door	Installed on all vehicles

HINT:

The names of ECUs and sensors shown on the Techstream display may differ from those shown in the DTC Table by ECU information.

CAN BUS CHECK

HINT:

The ECUs and sensors that are properly connected to the CAN communication system can be displayed using the Techstream.

Using the Techstream, select the CAN Bus Check screen.

NOTE:

It may be possible to select buses that do not have ECUs or sensors from the bus selection pull-down menu. This is not a malfunction. (This occurs when optional devices are not on a sub bus that is monitored by a gateway function equipped ECU.)
In the bus selection pull down menu, all buses applicable to the model are displayed (e.g. LIN communication buses are also displayed). Therefore, refer to the wiring diagrams to check the names of sub buses for CAN communication.
Refer to SYSTEM DIAGRAM [12/2017 - 08/2019]

HINT:

Different connection statuses are indicated by the background color of ECUs and sensors that are displayed.

EXPLANATION OF CAN BUS CHECK SCREEN

Bus Type	Background Color	Connection Status
Bus 2	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Non-bus 2 (gateway function equipped ECU that does not have history of connected ECUs)*2	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Non-bus 2 (gateway function equipped ECU that has history of connected ECUs)*3	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Currently not communicating (either of the following): Communication stop has continued since the start of the CAN bus check. Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring.
	Not displayed	Either of the following: If a gateway function equipped ECU cannot communicate, the non-bus 2 and ECUs connected to the non-bus 2 will not be displayed. If no ECUs are connected to the non-bus 2, "There is no system found on the Communication Bus" will be displayed.

HINT:

Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
*1: ECUs that are present in the vehicle but are not displayed on the CAN Bus Check screen.
*2: Gateway function equipped ECU that does not memorize the non-bus 2 ECUs that are connected to it.
*3: Gateway function equipped ECU that memorizes the non-bus 2 ECUs that are connected to it.
If none of the connected ECUs are displayed, or there is no response from the vehicle to the Techstream, check the central gateway ECU and the V bus branch lines for a malfunction.

Observe the connection response screen for approximately 2 minutes to check for a change in connection status of the connected ECUs and sensors.
HINT:
- If an open occurs in one of the lines of a CAN branch (except DLC3), output from the other branch line (the line that is not open) will be unstable and it may interfere with the response (display) of other ECUs and sensors.
- If the connection status changes during the inspection, repair the open in the branch line of the ECU or sensor that does not respond (is not detected) and then perform the CAN bus check again.

HOW TO INTERPRET CAN BUS CHECK SCREEN

When a communication stop is currently occurring, the probable malfunctioning part can be determined from the CAN bus check and by using the following methods.
NOTE:
The following CAN bus wiring diagram is provided only as an example. This wiring diagram is different from the actual wiring diagram for this vehicle.

HINT:
- When a communication stop is currently occurring, it is easier to determine the probable malfunctioning part from the CAN bus check rather than from communication DTCs.
- Wait for approximately 2 minutes after turning the power switch on (IG) (or simulating the driving conditions that enable the malfunction to be reproduced) and select "CAN Bus Check". Then observe the communication status of each ECU on the screen.

If a communication error of only 1 ECU or sensor is indicated on the CAN Bus Check screen, a communication stop of the ECU or sensor is suspected.

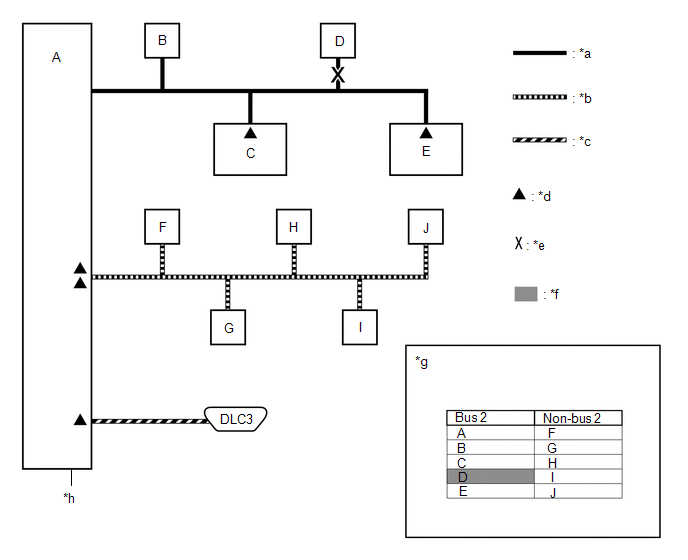

Open in both CAN branch lines of ECU D on the bus 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Bus 2	*b	Non-bus 2
*c	V Bus	*d	Terminating Resistor
*e	Location of Malfunction	*f	Not displayed or background color changes to red or yellow
*g	CAN Bus Check Screen	*h	Network Gateway ECU

HINT:

When there are communication stops, ECUs that are present in the vehicle may not be displayed on the CAN Bus Check screen.

If communication errors for multiple ECUs or sensors are indicated on the CAN Bus Check screen, then a communication stop of the ECU or sensor that shows a more serious communication stop (an ECU or sensor which is not displayed) is suspected.

Example: Open in a CAN branch line for ECU B on the bus 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Background color periodically changes to yellow or red
*b	Not displayed or background color is yellow or red
*c	Not displayed

EXPLANATION OF CAN BUS CHECK SCREEN

Bus Type	Background Color	Connection Status
Bus 2	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Non-bus 2 (gateway function equipped ECU that does not have history of connected ECUs)*2	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Non-bus 2 (gateway function equipped ECU that has history of connected ECUs)*3	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Currently not communicating (either of the following): Communication stop has continued since the start of the CAN bus check. Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring.
	Not displayed	Either of the following: If a gateway function equipped ECU cannot communicate, the non-bus 2 and ECUs connected to the non-bus 2 will not be displayed. If no ECUs are connected to the non-bus 2, "There is no system found on the Communication Bus" will be displayed.

HINT:

Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
*1: ECUs that are present in the vehicle but are not displayed on the CAN Bus Check screen.
*2: Gateway function equipped ECU that does not memorize the non-bus 2 ECUs that are connected to it.
*3: Gateway function equipped ECU that memorizes the non-bus 2 ECUs that are connected to it.
The example of the CAN Bus Check screen in the illustration shows the result of electrical noise on the CAN bus which is caused by an open in a CAN branch line of ECU B (output from the other branch line is unstable) and the communication of ECU A is also unstable. In addition, in this example, ECU A is equipped with a gateway function. Therefore, communication is also unstable between the non-bus 2 ECUs of ECU A and the bus 2.
The example in the illustration shows that ECU B is not displayed on the CAN Bus Check screen. This indicates a more significant communication stop. In this case, a communication stop of ECU B is suspected.

If a communication error is indicated on both the bus 2 and non-bus 2 on the CAN Bus Check screen, suspect any communication stop displayed for the bus 2 first.

Example: Open in both CAN branch lines of ECU A on the bus 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Not displayed or background color changes to red

HINT:

In the CAN bus check, it is possible to confirm the communication status of ECUs connected to the bus 2 after connecting the Techstream to the DLC3. As for non-bus 2, it is possible to confirm which non-bus 2 connected ECUs can communicate with a gateway function equipped ECU on the bus 2.
If a gateway function equipped ECU has a communication error, ECUs connected to the gateway function equipped ECU are also affected, and communication stops will be indicated.
The CAN Bus Check screen in the illustration shows that ECU A has a gateway function and a communication stop in ECU A is suspected.

If the CAN Bus Check screen indicates a communication stop only in the non-bus 2, a communication stop in the non-bus 2 is suspected.

Example: Open in both CAN branch lines of ECU G on the non-bus 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Background color changes to red

HINT:

A communication error in a non-bus 2 does not affect the bus 2 or other buses.
When a gateway function equipped ECU has memorized the ECUs that are connected to the non-bus 2, if any of the ECUs connected to the gateway function equipped ECU has a communication error, the background color changes to yellow or red. (The displayed name will not disappear.)

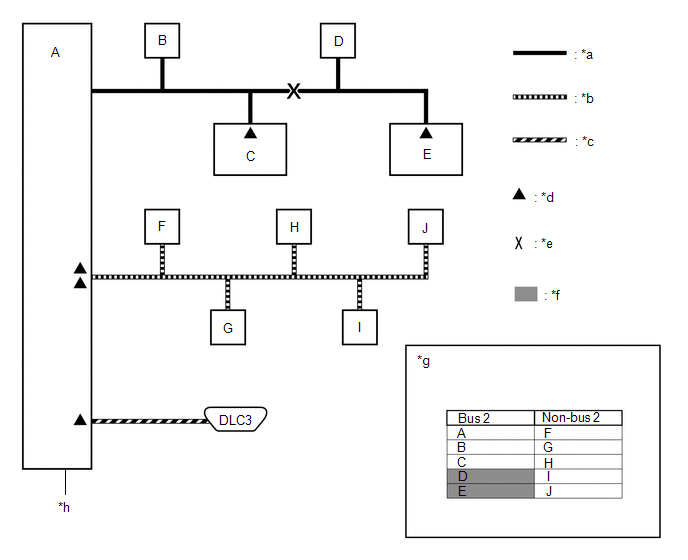

If both of the bus 2 main bus lines are open, ECUs or sensors that are located farther away from the network gateway ECU than the open part will be displayed as a communication stop on the CAN Bus Check screen.

(In this case, ECU D and E are not displayed or their background color changes to red.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Bus 2	*b	Non-bus 2
*c	V Bus	*d	Terminating Resistor
*e	Location of Malfunction	*f	Not displayed or background color is red
*g	CAN Bus Check Screen	*h	Network Gateway ECU

HINT:

If a communication error occurs in an ECU, it is not displayed on the CAN Bus Check screen even though the ECU is present.

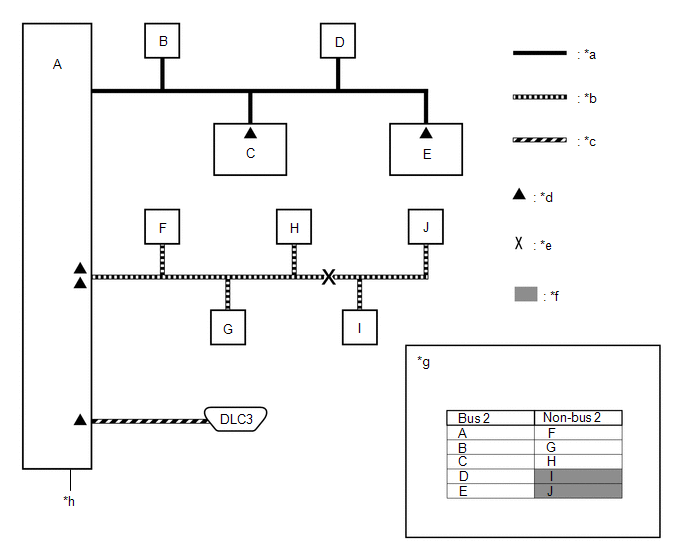

If both of the non-bus 2 main bus lines are open, ECUs that are located farther away from the network gateway ECU than the open part will be displayed as a communication stop on the CAN Bus Check screen.

(In this case, ECU I and J are not displayed or their background color changes to red.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Bus 2	*b	Non-bus 2
*c	V Bus	*d	Terminating Resistor
*e	Location of Malfunction	*f	Not displayed or background color is red
*g	CAN Bus Check Screen	*h	Network Gateway ECU

When any of the following malfunctions occur, CAN communication cannot be established and almost all ECUs and sensors on the bus show a communication error on the CAN Bus Check screen.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	When any of the following malfunctions occur on the bus 2
*b	When any of the following malfunctions occur on a non-bus 2
*c	Not displayed

DETAILS OF MALFUNCTION

Short between CAN lines (CANH and CANL)

Short between a CAN line (CANH or CANL) and +B

Short between a CAN line (CANH or CANL) and ground

Open in a CAN main bus line

HINT:

When a malfunction occurs on the bus 2, almost all ECUs and sensors in the bus 2 and non-bus 2 indicate a communication error (almost all ECUs are not displayed). As communication with the gateway function equipped ECU that is connected to the bus 2 stops, communication from the ECUs connected to the non-bus 2 that is monitored by the gateway function equipped ECU also stops (these ECUs are not displayed).
When a malfunction occurs in a non-bus 2, almost all ECUs connected to the non-bus 2 indicate a communication error.
A communication error in a non-bus 2 does not affect the bus 2 or other buses.
The malfunctioning part can be determined by checking for a short circuit between CAN bus lines or between a CAN bus line and ground or +B short using an electrical tester.

DTC TABLE BY ECU

HINT:

In the CAN communication system, the CAN communication DTCs of each ECU can be displayed using the Techstream.
If CAN communication system DTCs are output, the malfunction cannot be determined only by the DTCs. Perform troubleshooting according to How to Proceed with Troubleshooting.
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - 08/2019]
If the system function temporarily returns to normal, DTCs may not be output again even if the following DTC check procedures are used.

ECM Assembly / Techstream Display "Engine and ECT"

Powertrain > Engine and ECT > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

ECM ASSEMBLY / TECHSTREAM DISPLAY "ENGINE AND ECT"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0129	Lost Communication with Brake System Control Module	The ECM assembly does not receive data from the skid control ECU assembly for 4.98 seconds or more.	Both conditions are met: The power switch is on (IG) for 2.1 seconds or more. The power source voltage of the ECM assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 9.96 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with HV ECU	The ECM assembly does not receive data from the hybrid vehicle control ECU assembly for 0.576 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the ECM assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 1.576 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.

Hybrid Vehicle Control ECU Assembly / Techstream Display "Hybrid Control"

Powertrain > Hybrid Control > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*1: Refer to Hybrid Control System.
Refer to DIAGNOSTIC TROUBLE CODE CHART [03/2018 - 08/2019]
*2: Refer to Hybrid Battery System.
Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2017 - 08/2019]

HYBRID VEHICLE CONTROL ECU ASSEMBLY / TECHSTREAM DISPLAY "HYBRID CONTROL"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The hybrid vehicle control ECU assembly does not receive data from the ECM assembly for 0.576 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 1.576 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0110*1	Lost Communication with Drive Motor Control Module "A"	One of the following conditions is met: The response sent to the hybrid vehicle control ECU assembly from the inverter with converter assembly is invalid for 0.04 seconds or more. The hybrid vehicle control ECU assembly does not receive data from the inverter with converter assembly for 0.11 seconds or more. Error in reception from inverter with converter assembly (MG ECU) via serial communication (out of communication standard) (1 trip detection logic) Error in reception from inverter with converter assembly (MG ECU) via serial communication (out of communication standard) Error in reception from inverter with converter assembly (MG ECU) via serial communication (no reception) (1 trip detection logic)	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 0.21 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0125	Lost Communication with Multi-axis Acceleration Sensor Module	The hybrid vehicle control ECU assembly does not receive data from the yaw rate sensor assembly for 6 seconds or more.	Both conditions are met: The power switch is on (IG) for 6 seconds or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 12 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The hybrid vehicle control ECU assembly does not receive data from the steering sensor for 0.72 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 1.72 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	Either condition is met: The hybrid vehicle control ECU assembly does not receive data from the skid control ECU assembly for 2.22 seconds or more. The hybrid vehicle control ECU assembly does not receive data from the skid control ECU assembly for 2.34 seconds or more.	Both conditions are met: The power switch is on (IG) for 2.1 seconds or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 4.44 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0140	Communication Error from Body ECU to HV ECU	The hybrid vehicle control ECU assembly does not receive data from the main body ECU (multiplex network body ECU) for 3.6 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 4.6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0151	Communication Error from Airbag ECU to HV ECU	The hybrid vehicle control ECU assembly does not receive data from the airbag sensor assembly for 10.6 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11.6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0164	Communication Error from A/C ECU to HV ECU	The hybrid vehicle control ECU assembly does not receive data from the air conditioning amplifier assembly for 10.6 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11.6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U029A*2	Lost Communication with Hybrid Battery Pack Sensor Module	The response sent to the hybrid vehicle control ECU assembly from the battery smart unit is invalid for 0.52 seconds or more.	Both conditions are met: The power switch is on (IG) for 0.5 seconds or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 1.02 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0424*1	Invalid Data Received From HVAC Control Module	The hybrid vehicle control ECU assembly receives an abnormal operation value command from the air conditioning amplifier assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 0.5 seconds or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 3.5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1107	Lost Communication with Power Management Module	The hybrid vehicle control ECU assembly does not receive data from the certification ECU (smart key ECU assembly) for 3.6 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the hybrid vehicle control ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 4.6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Hybrid Vehicle Control ECU Assembly / Techstream Display "Radar Cruise1"

Powertrain > Radar Cruise1 > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

HYBRID VEHICLE CONTROL ECU ASSEMBLY / TECHSTREAM DISPLAY "RADAR CRUISE1"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0122	Lost Communication with Vehicle Dynamics Control Module	The hybrid vehicle control ECU assembly does not receive data from the skid control ECU assembly for 2.65 seconds or more.	Both conditions are met: The power switch is on (IG). The radar cruise control system (vehicle control mode) is operating.	Allow the radar cruise control system (vehicle control mode) to operate for 2.65 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The skid control ECU assembly does not receive data from the hybrid vehicle control ECU assembly for 1 second or more.	Both conditions are met: The power switch is on (IG). The radar cruise control system (vehicle control mode) is operating.	Allow the radar cruise control system (vehicle control mode) to operate for 1 second or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1104	Lost Communication with Driving Support ECU	The driving support ECU assembly data sent to the hybrid vehicle control ECU assembly is lost for 0.92 seconds or more.	Both conditions are met: The power switch is on (IG). The radar cruise control system (vehicle control mode) is operating.	Allow the radar cruise control system (vehicle control mode) to operate for 0.92 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Skid Control ECU Assembly / Techstream Display "ABS/VSC/TRAC"

Chassis > ABS/VSC/TRAC > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

SKID CONTROL ECU ASSEMBLY / TECHSTREAM DISPLAY "ABS/VSC/TRAC"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus OFF	One of the following conditions is met: Delayed reception of data from the yaw rate sensor assembly and steering sensor continues for 1 second or more. The following condition occurs 10 times or more within 60 seconds: Delayed reception of data from the yaw rate sensor assembly and steering sensor occurs once or more within 5 seconds. A communication error (bus-off status) with the skid control ECU assembly occurs 10 times consecutively within 5 seconds.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 61 seconds.	ABS warning light illuminates. Slip indicator light illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication With ECM/PCM "A"	Either of the following conditions is met: The skid control ECU assembly does not receive data from the ECM for 2 seconds or more. The following condition occurs 10 times or more within 60 seconds: The skid control ECU assembly does not receive data from the ECM once or more within 5 seconds.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 61 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0120	Lost Communication with Starter / Generator Control Module	The skid control ECU assembly does not receive data from the certification ECU (smart key ECU assembly) for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 4 seconds.	Brake warning light (yellow) illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0123	Lost Communication with Yaw Rate Sensor Module	Either of the following conditions is met: The skid control ECU assembly does not receive data from the yaw rate sensor assembly for 1 second or more. The following condition occurs 10 times or more within 60 seconds: The skid control ECU assembly does not receive data from the yaw rate sensor assembly once or more within 5 seconds.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 61 seconds.	ABS warning light illuminates. Slip indicator light illuminates. Brake warning light (yellow) illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0124	Lost Communication with Lateral Acceleration Sensor Module	Either of the following conditions is met: The skid control ECU assembly does not receive data from the yaw rate sensor assembly for 1 second or more. The following condition occurs 10 times or more within 60 seconds: The skid control ECU assembly does not receive data from the yaw rate sensor assembly once or more within 5 seconds.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 61 seconds.	ABS warning light illuminates. Slip indicator light illuminates. Brake warning light (yellow) illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	Either of the following conditions is met: The skid control ECU assembly does not receive data from the steering sensor for 1 second or more. The following condition occurs 10 times or more within 60 seconds: The skid control ECU assembly does not receive data from the steering sensor once or more within 5 seconds.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 61 seconds.	Slip indicator light illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0128	Lost Communication with Park Brake Control Module	The skid control ECU assembly does not receive data from the parking brake ECU assembly for 1 second or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 2 seconds.	Brake hold operated indicator light blinks.	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The skid control ECU assembly does not receive data from the main body ECU (multiplex network body ECU) for 2 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0293	Communication Error from HV ECU	Either of the following conditions is met: The skid control ECU assembly does not receive data from the hybrid vehicle control ECU assembly for 2 seconds or more. The following condition occurs 10 times or more: The skid control ECU assembly does not receive data from the hybrid vehicle control ECU assembly once or more within 5 seconds.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the skid control ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 51 seconds.	Slip indicator light illuminates. Brake warning light (yellow) illuminates.	-	DTC is stored until it is cleared using the Techstream.

Power Steering ECU Assembly / Techstream Display "EMPS"

Chassis > EMPS > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

POWER STEERING ECU ASSEMBLY / TECHSTREAM DISPLAY "EMPS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0129	Lost Communication with Brake System Control Module	The power steering ECU assembly does not receive data from the skid control ECU assembly for 2.34 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the power steering ECU assembly is 9 V or more.	Turn the power switch on (IG) and wait for at least 5.34 seconds.	EPS warning light illuminates.	-	DTC remains stored only while malfunction is occurring.
U023A	Lost Communication with Front Camera Module	The power steering ECU assembly does not receive data from the forward recognition camera for 1.34 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the power steering ECU assembly is 9 V or more.	Turn the power switch on (IG) and wait for at least 4.34 seconds.	-	-	DTC remains stored only while malfunction is occurring.
U0293	Lost Communication with Hybrid Control Module	Both conditions are met: Vehicle speed is 20 km/h (12 mph) or more. The power steering ECU assembly does not receive data from the hybrid vehicle control ECU assembly for 5 minutes or more.	All conditions are met: The power switch is on (IG) for 3 seconds or more. Vehicle speed is 20 km/h (12 mph) or more. The power source voltage of the power steering ECU assembly is 9 V or more.	Drive the vehicle at a speed of 20 km/h (12 mph) or more for 5 minutes or more.	-	-	DTC remains stored only while malfunction is occurring.

Main Body ECU (Multiplex Network Body ECU) / Techstream Display "Main Body"

Body Electrical > Main Body > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) / TECHSTREAM DISPLAY "MAIN BODY"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The main body ECU (multiplex network body ECU) does not receive data from the ECM assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 10 seconds or more. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0101	Lost Communication with TCM	The main body ECU (multiplex network body ECU) does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 10 seconds or more. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0120	Lost Communication with Starter / Generator Control Module	The main body ECU (multiplex network body ECU) does not receive data from the certification ECU (smart key ECU assembly) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The main body ECU (multiplex network body ECU) does not receive data from the skid control ECU assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0151	Lost Communication with Restraints Control Module	The main body ECU (multiplex network body ECU) does not receive data from the airbag sensor assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 10 seconds or more. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The main body ECU (multiplex network body ECU) does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0164	Lost Communication with HVAC Control Module	The main body ECU (multiplex network body ECU) does not receive data from the air conditioning amplifier assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0182	Lost Communication with AFS	The main body ECU (multiplex network body ECU) does not receive data from the headlight ECU sub-assembly LH for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 10 seconds or more. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0199	Lost Communication with "Door Control Module A"	The main body ECU (multiplex network body ECU) does not receive data from the outer mirror control ECU assembly (for front passenger side) for 10 seconds or more.	Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 11 seconds or more elapse.	Turn the power switch on (IG) and wait for at least 21 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0200	Lost Communication with "Door Control Module B"	The main body ECU (multiplex network body ECU) does not receive data from the outer mirror control ECU assembly (for driver side) for 10 seconds or more.	Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 11 seconds or more elapse.	Turn the power switch on (IG) and wait for at least 21 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0208	Lost Communication with "Seat Control Module A"	The main body ECU (multiplex network body ECU) does not receive data from the position control ECU and switch assembly LH for 10 seconds or more.	Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0230	Lost Communication with Rear Gate Module	The main body ECU (multiplex network body ECU) does not receive data from the multiplex network door ECU for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U023A	Lost Communication with Image Processing Module "A"	The main body ECU (multiplex network body ECU) does not receive data from the forward recognition camera for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0265	Lost Communication with Parking Assist Monitor Module	The main body ECU (multiplex network body ECU) does not receive data from the rear television camera assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication With Hybrid Powertrain Control Module	The main body ECU (multiplex network body ECU) does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0327	Software Incompatibility with Vehicle Security Control Module	The main body ECU (multiplex network body ECU) does not receive data from the certification ECU (smart key ECU assembly) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1002	Lost Communication with Gateway Module	The main body ECU (multiplex network body ECU) detects communication errors between itself and the position control ECU and switch assembly LH, outer mirror control ECU assembly (for front passenger side), outer mirror control ECU assembly (for driver side), multiplex network door ECU and multiplex tilt and telescopic ECU.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1106	Lost Communication with Electric Parking Brake Module	The main body ECU (multiplex network body ECU) does not receive data from the parking brake ECU assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1115	Lost Communication with Tilt & Telescopic Module	The main body ECU (multiplex network body ECU) does not receive data from the multiplex tilt and telescopic ECU for 10 seconds or more.	Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 11 seconds or more elapse.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1126	Lost Communication with Parking Assist Monitor Module	The main body ECU (multiplex network body ECU) does not receive data from the rear television camera assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Certification ECU (Smart Key ECU Assembly) / Techstream Display "Smart Access"

Body Electrical > Smart Access > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) / TECHSTREAM DISPLAY "SMART ACCESS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0142	Lost Communication with Main Body ECU	The certification ECU (smart key ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The certification ECU (smart key ECU assembly) does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The certification ECU (smart key ECU assembly) does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Certification ECU (Smart Key ECU Assembly) / Techstream Display "Power Source Control"

Body Electrical > Power Source Control > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) / TECHSTREAM DISPLAY "POWER SOURCE CONTROL"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0140	Lost Communication with Main Body ECU	The certification ECU (smart key ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for 3 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the certification ECU (smart key ECU assembly) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The certification ECU (smart key ECU assembly) does not receive data from the combination meter assembly for 3.1 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the certification ECU (smart key ECU assembly) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 3.1 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The certification ECU (smart key ECU assembly) does not receive data from the hybrid vehicle control ECU assembly for 3.1 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the certification ECU (smart key ECU assembly) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 3.1 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Air Conditioning Amplifier Assembly / Techstream Display "Air Conditioner"

Body Electrical > Air Conditioner > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

AIR CONDITIONING AMPLIFIER ASSEMBLY / TECHSTREAM DISPLAY "AIR CONDITIONER"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0131	Lost Communication with Electric Power Steering ECU	The air conditioning amplifier assembly does not receive data from the power steering ECU assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Main Body ECU	The air conditioning amplifier assembly does not receive data from the main body ECU (multiplex network body ECU) for 5 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0151	Lost Communication with Restraints Control Module	The air conditioning amplifier assembly does not receive data from the airbag sensor assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The air conditioning amplifier assembly does not receive data from the combination meter assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The air conditioning amplifier assembly does not receive data from the radio receiver assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with HV ECU	The air conditioning amplifier assembly does not receive data from the hybrid vehicle control ECU assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Telematics Transceiver (w/ Manual (SOS) Switch) / Techstream Display "Telematics"

Body Electrical > Telematics > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

TELEMATICS TRANSCEIVER / TECHSTREAM DISPLAY "TELEMATICS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0142	Lost Communication with Body Control Module "B"	The telematics transceiver does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The telematics transceiver does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 10 seconds or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The telematics transceiver does not receive data from the radio receiver assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Radio Receiver Assembly (w/ Navigation System) / Techstream Display "Navigation System"

Body Electrical > Navigation System > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

RADIO RECEIVER ASSEMBLY / TECHSTREAM DISPLAY "NAVIGATION SYSTEM"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Sending Malfunction (Navigation to APGS)	The radio receiver assembly does not send/receive data for 5 seconds or more.	The power switch is on (IG).	Turn the power switch on (IG) and wait for at least 6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0100	Engine ECU Communication	The radio receiver assembly does not receive data from the ECM assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	VSC (ECB) ECU Communication	The radio receiver assembly does not receive data from the skid control ECU assembly for 4 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The radio receiver assembly does not receive data from the main body ECU (multiplex network body ECU) for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 4 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Meter ECU Communication	The radio receiver assembly does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 31 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The radio receiver assembly does not receive data from the telematics transceiver for 3 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0164	Air Conditioner ECU Communication	The radio receiver assembly does not receive data from the air conditioning amplifier assembly for 15 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 15 seconds.	-	-	DTC remains stored only while malfunction is occurring.
U0198	Lost Communication with Telematic Control Module	The radio receiver assembly does not receive data from the telematics transceiver for 3 seconds or more.	The power switch is on (ACC).	Turn the power switch on (ACC) and wait for at least 3 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0233	Lost Communication with Blind Spot Monitor Master Module	The radio receiver assembly does not receive data from the blind spot monitor sensor LH for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	HV ECU Communication	The radio receiver assembly does not receive data from the hybrid vehicle control ECU assembly for 4 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1110	Clearance Sonar ECU Communication	The radio receiver assembly does not receive data from the clearance warning ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Radio Receiver Assembly (w/ Audio and Visual System) / Techstream Display "Navigation System"

Body Electrical > Navigation System > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

RADIO RECEIVER ASSEMBLY / TECHSTREAM DISPLAY "NAVIGATION SYSTEM"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Sending Malfunction (Navigation to APGS)	The radio receiver assembly does not send/receive data for 5 seconds or more.	The power switch is on (IG).	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0100	Engine ECU Communication	The radio receiver assembly does not receive data from the ECM assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	VSC(ECB)ECU Communication	The radio receiver assembly does not receive data from the skid control ECU assembly for 4 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The radio receiver assembly does not receive data from the main body ECU (multiplex network body ECU) for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 4 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Meter ECU Communication	The radio receiver assembly does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 31 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0164	Air Conditioner ECU Communication	The radio receiver assembly does not receive data from the air conditioning amplifier assembly for 15 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 15 seconds.	-	-	DTC remains stored only while malfunction is occurring.
U0233	Lost Communication with Blind Spot Monitor Master Module	The radio receiver assembly does not receive data from the blind spot monitor sensor LH for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	HV ECU Communication	The radio receiver assembly does not receive data from the hybrid vehicle control ECU assembly for 4 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1110	Clearance Sonar ECU Communication	The radio receiver assembly does not receive data from the clearance warning ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 11 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Combination Meter Assembly / Techstream Display "Combination Meter"

Body Electrical > Combination Meter > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

COMBINATION METER ASSEMBLY / TECHSTREAM DISPLAY "COMBINATION METER"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The combination meter assembly does not receive data from the ECM assembly for 2 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 2 seconds.	MIL illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The combination meter assembly does not receive data from the skid control ECU assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	ABS warning light illuminates. Slip indicator light illuminates. Brake warning light illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0131	Lost Communication with Power Steering Control Module	The combination meter assembly does not receive data from the power steering ECU assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	EPS warning light illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The combination meter assembly does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0151	Lost Communication with Restraints Control Module	The combination meter assembly does not receive data from the airbag sensor assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	SRS warning light illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The combination meter assembly does not receive data from the radio receiver assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0182	Lost Communication with Lighting Control Module Front	The combination meter assembly does not receive data from the headlight ECU sub-assembly LH for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	Displays messages on the multi-information display.	-	DTC is stored until it is cleared using the Techstream.
U023A	Lost Communication with Front Camera Module	The combination meter assembly does not receive data from the forward recognition camera for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1104	Lost Communication with Driving Support ECU	The combination meter assembly does not receive data from the driving support ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the combination meter assembly is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	PCS warning light blinks.	-	DTC is stored until it is cleared using the Techstream.

Outer Mirror Control ECU Assembly (for Front Passenger Side) / Techstream Display "Mirror R"

Body Electrical > Mirror R > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

OUTER MIRROR CONTROL ECU ASSEMBLY (FOR FRONT PASSENGER SIDE) / TECHSTREAM DISPLAY "MIRROR R"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0142	Lost Communication with Main Body ECU	The outer mirror control ECU assembly (for front passenger side) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the outer mirror control ECU assembly (for front passenger side) is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Outer Mirror Control ECU Assembly (for Driver Side) / Techstream Display "Mirror L"

Body Electrical > Mirror L > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

OUTER MIRROR CONTROL ECU ASSEMBLY (FOR DRIVER SIDE) / TECHSTREAM DISPLAY "MIRROR L"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0142	Lost Communication with Main Body ECU	The outer mirror control ECU assembly (for driver side) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the outer mirror control ECU assembly (for driver side) is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Multiplex Tilt and Telescopic ECU / Techstream Display "Tilt & Telescopic"

Body Electrical > Tilt&Telescopic > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

MULTIPLEX TILT AND TELESCOPIC ECU / TECHSTREAM DISPLAY "TILT & TELESCOPIC"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0142	Lost Communication with Main Body ECU	The multiplex tilt and telescopic ECU does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the multiplex tilt and telescopic ECU is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC remains stored only while malfunction is occurring.
U0208	Lost Communication with "Seat Control Module A"	The multiplex tilt and telescopic ECU does not receive data from the position control ECU and switch assembly LH for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the multiplex tilt and telescopic ECU is 10 V or more.	Turn the power switch on (IG) and wait for at least 20 seconds.	-	-	DTC remains stored only while malfunction is occurring.

Driving Support ECU Assembly / Techstream Display "Radar Cruise2"

Powertrain > Radar Cruise2 > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Dynamic Radar Cruise Control System.
Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2018 - 08/2019]

DRIVING SUPPORT ECU ASSEMBLY / TECHSTREAM DISPLAY "RADAR CRUISE2"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0125	Lost Communication with Yaw Rate Sensor Module	The driving support ECU assembly does not receive data from the yaw rate sensor assembly for 0.72 seconds or more.	All conditions are met: The power switch is on (IG) for 3 seconds or more. Vehicle speed is 36 km/h (22 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 36 km/h (22 mph) or more for 3.72 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The driving support ECU assembly does not receive data from the steering sensor for 0.72 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. Vehicle speed is 36 km/h (22 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 36 km/h (22 mph) or more for 1.72 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The driving support ECU assembly does not receive data from the skid control ECU assembly for 1.08 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 36 km/h (22 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 36 km/h (22 mph) or more for 3.08 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0235*	Lost Communication with Cruise Control Front Distance Range Sensor	The driving support ECU assembly does not receive data from the millimeter wave radar sensor assembly for 1.6 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. Vehicle speed is 36 km/h (22 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 36 km/h (22 mph) or more for 2.6 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The driving support ECU assembly does not receive data from the hybrid vehicle control ECU assembly for 1 second or more.	All conditions are met: The power switch is on (IG) for 1 second or more. Vehicle speed is 36 km/h (22 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 36 km/h (22 mph) or more for 2 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1104*	Lost Communication with Driving Support ECU	The driving support ECU assembly does not receive data from the millimeter wave radar sensor assembly for 0.144 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. Vehicle speed is 36 km/h (22 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 36 km/h (22 mph) or more for 1.144 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Driving Support ECU Assembly / Techstream Display "Pre-Collision 2"

Body Electrical > Pre-Collision 2 > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Pre-collision System.
Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2018 - 08/2019]

DRIVING SUPPORT ECU ASSEMBLY / TECHSTREAM DISPLAY "PRE-COLLISION 2"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0125	Lost Communication with Yaw Rate Sensor Module	The driving support ECU assembly does not receive data from the yaw rate sensor assembly for 0.076 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 3.076 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0126	Lost Communication with Steering Angle Sensor Module	The driving support ECU assembly does not receive data from the steering sensor for 3.02 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 6.02 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0129	Lost Communication with Brake System Control Module	The driving support ECU assembly does not receive data from the skid control ECU assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0235*	Lost Communication with Cruise Control Front Distance Range Sensor	The driving support ECU assembly does not receive data from the millimeter wave radar sensor assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U023A*	Lost Communication with Front Camera Module	The driving support ECU assembly does not receive data from the forward recognition camera for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0293	Lost Communication with HV ECU	The driving support ECU assembly does not receive data from the skid control ECU assembly for 3 seconds or more.	All conditions are met: The power switch is on (IG) for 3 second or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 6 seconds or more.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U1002*	Lost Communication with Gateway Module	The driving support ECU assembly does not receive data from the millimeter wave radar sensor assembly and forward recognition camera for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U1104*	Lost Communication with Driving Support ECU	Either of the following conditions is met: The millimeter wave radar sensor assembly or forward recognition camera does not receive data from the driving support ECU assembly for 3 seconds or more. The skid control ECU assembly does not receive data from the driving support ECU assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the driving support ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	PCS indicator light blinks.	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.

Clearance Warning ECU Assembly / Techstream Display "Advanced Parking Guidance/ICS/Intuitive P/A"

Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*1: Intelligent Clearance Sonar System.
Refer to DTC U0232: Lost Communication with Blind Spot Monitor Slave Module; DTC U0233: Lost Communication with Blind Spot Monitor Master Module [08/2016 - 08/2019]
*2: Refer to Intuitive Parking Assist System (w/ Intelligent Clearance Sonar System).
Refer to DTC U1000: CAN Communication Failure (Message Registry) [08/2016 - ]

CLEARANCE WARNING ECU ASSEMBLY / TECHSTREAM DISPLAY "IPA/ICS/CLEARANCE SONAR"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus "A" Off	Either of the following conditions is met: The clearance warning ECU assembly does not receive data from an ECU or sensor to which it sent data, for 1.24 seconds or more. The clearance warning ECU assembly does not send/receive data consecutively 10 times or more within 5 seconds.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM/PCM "A"	The clearance warning ECU assembly does not receive data from the ECM assembly for 5.12 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8.12 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0124	Lost Communication with Lateral Acceleration Sensor Module	The clearance warning ECU assembly does not receive data from the yaw rate sensor assembly for 0.72 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 3.72 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The clearance warning ECU assembly does not receive data from the steering sensor for 5.04 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8.04 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The clearance warning ECU assembly does not receive data from the skid control ECU assembly for 4.92 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 7.92 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The clearance warning ECU assembly does not receive data from the main body ECU (multiplex network body ECU) for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The clearance warning ECU assembly does not receive data from the combination meter assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0164	Lost Communication with HVAC Control Module	The clearance warning ECU assembly does not receive data from the air conditioning amplifier assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0232*1	Lost Communication with Blind Spot Monitor Slave Module	The clearance warning ECU assembly does not receive data from the blind spot monitor sensor RH for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0233*1	Lost Communication with Blind Spot Monitor Master Module	The clearance warning ECU assembly does not receive data from the blind spot monitor sensor LH for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1000*2	CAN Communication Failure (Message Registry)	CAN communication malfunction (message register)	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the clearance warning ECU assembly is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	ICS OFF indicator light blinks.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Blind Spot Monitor Sensor LH / Techstream Display "Blind Spot Monitor Master"

Body Electrical > Blind Spot Monitor Master > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*1: Refer to Blind Spot Monitor System.
Refer to DTC U0232: Lost Communication with Blind Spot Monitor Slave Module [08/2016 - 08/2019]
*2: Refer to Blind Spot Monitor System.
Refer to DTC U1331: Software Incompatibility with Body Control Module "B" [10/2015 - 08/2019]

BLIND SPOT MONITOR SENSOR LH / TECHSTREAM DISPLAY "BLIND SPOT MONITOR MASTER"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0125	Lost Communication with Yaw Rate Sensor Module	The blind spot monitor sensor LH does not receive data from the yaw rate sensor assembly for 3.06 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 4.06 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The blind spot monitor sensor LH does not receive data from the steering sensor for 3.06 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 4.06 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The blind spot monitor sensor LH does not receive data from the skid control ECU assembly for 3.15 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 5.15 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The blind spot monitor sensor LH does not receive data from the main body ECU (multiplex network body ECU) for 10.6 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 11.6 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0232*1	Lost Communication with Blind Spot Monitor Slave Module	The blind spot monitor sensor LH does not receive data from the blind spot monitor sensor RH for 10.6 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 11.6 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Control Module	The blind spot monitor sensor LH does not receive data from the Hybrid vehicle control ECU assembly for 10.84 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 11.84 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1331*2	Software Incompatibility with Body Control Module "B"	Destination information of the main body ECU (multiplex network body ECU) and blind spot monitor sensor do not match.	All conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the blind spot monitor sensor LH is 10 V or more.	Turn the power switch on (IG) and wait for at least 1 second.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Forward Recognition Camera / Techstream Display "LKA/LDA"

Chassis > LKA/LDA > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to LKA/LDA System.
Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2018 - 08/2019]

FORWARD RECOGNITION CAMERA / TECHSTREAM DISPLAY "LKA/LDA"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0101	Lost Communication with TCM	The forward recognition camera does not receive data from the hybrid vehicle control ECU assembly for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 8 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0123	Lost Communication with Yaw Rate Sensor Module	The forward recognition camera does not receive data from the yaw rate sensor assembly for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0126	Lost Communication with Steering Angle Sensor Module	The forward recognition camera does not receive data from the steering sensor for 0.2 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 2.2 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0129	Lost Communication with Brake System Control Module	The forward recognition camera does not receive data from the skid control ECU assembly for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0131	Lost Communication with Power Steering Control Module	The forward recognition camera does not receive data from the rear steering control ECU for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0142	Lost Communication with Body Control Module "B"	The forward recognition camera does not receive data from the main body ECU (multiplex network body ECU) for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0155	Lost Communication with Combination Meter	The forward recognition camera does not receive data from the combination meter assembly for 50 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 52 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0235*	Lost Communication with Cruise Control Front Distance Range Sensor	The forward recognition camera does not receive data from the millimeter wave radar sensor assembly for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U023A*	Lost Communication with Front Camera Module	The forward recognition camera does not receive data from the power steering ECU assembly for 5 seconds or more.	The power switch is on (IG) for 2 seconds or more.	Turn the power switch on (IG) and wait for at least 7 seconds.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U0293	Lost Communication with HV ECU	The forward recognition camera does not receive data from the hybrid vehicle control ECU assembly for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 8 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.
U1104*	Lost Communication with Driving Support ECU	The forward recognition camera does not receive data from the driving support ECU assembly for 5 seconds or more.	All conditions are met: The power switch is on (IG) for 2 seconds or more. Vehicle speed is 5 km/h (3 mph) or more. The power source voltage of the forward recognition camera is 8 V or more.	Drive the vehicle at a speed of 5 km/h (3 mph) or more for 7 seconds or more.	-	Displays messages on the multi-information display.	DTC remains stored only while malfunction is occurring.

Forward Recognition Camera / Techstream Display "Front Recognition Camera"

Chassis > Front Recognition Camera > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Front Recognition Camera System.
Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2018 - 08/2019]

FORWARD RECOGNITION CAMERA / TECHSTREAM DISPLAY "FRONT RECOGNITION CAMERA"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0101	Lost Communication with TCM	The forward recognition camera does not receive data from the hybrid vehicle control ECU assembly for 5 seconds or more.	Both conditions are met: Vehicle speed is 1 km/h (or 1 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 1 km/h (or 1 mph) or more for 5 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0123	Lost Communication with Yaw Rate Sensor Module	The forward recognition camera does not receive data from the yaw rate sensor assembly for 5 seconds or more.	Both conditions are met: Vehicle speed is 1 km/h (or 1 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 1 km/h (or 1 mph) or more for 5 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The forward recognition camera does not receive data from the skid control ECU assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 2 seconds or more. The power source voltage of the forward recognition camera is 10 V or more.	Turn the power switch on (IG) and wait for at least 7 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The forward recognition camera does not receive data from the main body ECU (multiplex network body ECU) for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 2 seconds or more. The power source voltage of the forward recognition camera is 10 V or more.	Turn the power switch on (IG) and wait for at least 7 seconds.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0235*	Lost Communication with Cruise Control Front Distance Range Sensor	The forward recognition camera does not receive data from the millimeter wave radar sensor assembly for 1 second or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the forward recognition camera is 10 V or more.	Turn the power switch on (IG) and wait for at least 1 second.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with HV ECU	The forward recognition camera does not receive data from the hybrid vehicle control ECU assembly for 5 seconds or more.	Both conditions are met: Vehicle speed is 1 km/h (or 1 mph) or more. The power source voltage of the forward recognition camera is 10 V or more.	Drive the vehicle at a speed of 1 km/h (or 1 mph) or more for 5 seconds or more.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1104*	Lost Communication with Driving Support ECU	The forward recognition camera does not receive data from the driving support ECU assembly for 1 second or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the forward recognition camera is 10 V or more.	Turn the power switch on (IG) and wait for at least 1 second.	-	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Headlight ECU Sub-assembly LH (for Single Beam Headlight w/o AFS) / Techstream Display "HL AutoLeveling"

Body Electrical > HL AutoLeveling > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Lighting System (w/ Automatic Headlight Beam Level Control System).
Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2019]

HEADLIGHT ECU SUB-ASSEMBLY LH / TECHSTREAM DISPLAY "HL AUTOLEVELING"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus OFF	The headlight ECU sub-assembly LH does not send/receive data.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM / PCM "A"	The headlight ECU sub-assembly LH does not receive data from the ECM assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0101	Lost Communication with TCM	The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The headlight ECU sub-assembly LH does not receive data from the skid control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The headlight ECU sub-assembly LH does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The headlight ECU sub-assembly LH does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 33 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0242*	Lost Communication with Headlamp Control Module "B"	The headlight ECU sub-assembly LH does not receive data from the headlight ECU sub-assembly RH for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	CAN communication malfunction (message register)	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Headlight ECU Sub-assembly LH (for Single Beam Headlight w/ AFS) / Techstream Display "AFS"

Body Electrical > AFS > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Lighting System (w/ Automatic Headlight Beam Level Control System).
Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2019]

HEADLIGHT ECU SUB-ASSEMBLY LH / TECHSTREAM DISPLAY "AFS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus OFF	The headlight ECU sub-assembly LH does not send/receive data.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM / PCM "A"	The headlight ECU sub-assembly LH does not receive data from the ECM assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0101	Lost Communication with TCM	The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The headlight ECU sub-assembly LH does not receive data from the steering sensor for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The headlight ECU sub-assembly LH does not receive data from the skid control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The headlight ECU sub-assembly LH does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The headlight ECU sub-assembly LH does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 33 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0242*	Lost Communication with Headlamp Control Module "B"	The headlight ECU sub-assembly LH does not receive data from the headlight ECU sub-assembly RH for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	CAN communication malfunction (message register)	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Headlight ECU Sub-assembly LH (for Triple Beam Headlight) / Techstream Display "AFS"

Body Electrical > AFS > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Lighting System (w/ Automatic Headlight Beam Level Control System).
Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2019]

HEADLIGHT ECU SUB-ASSEMBLY LH / TECHSTREAM DISPLAY "AFS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus OFF	The headlight ECU sub-assembly LH does not send/receive data.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM / PCM "A"	The headlight ECU sub-assembly LH does not receive data from the ECM assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0101	Lost Communication with TCM	The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The headlight ECU sub-assembly LH does not receive data from the steering sensor for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The headlight ECU sub-assembly LH does not receive data from the skid control ECU assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The headlight ECU sub-assembly LH does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The headlight ECU sub-assembly LH does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0242*	Lost Communication with Headlamp Control Module "B"	The headlight ECU sub-assembly LH does not receive data from the headlight ECU sub-assembly RH for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The headlight ECU sub-assembly LH does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	When the power switch is turned on (IG), a CAN communication malfunction is detected.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the headlight ECU sub-assembly LH is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	-	-	DTC remains stored only while malfunction is occurring.

Parking Brake ECU Assembly / Techstream Display "Electric Parking Brake"

Chassis > Electric Parking Brake > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

PARKING BRAKE ECU ASSEMBLY / TECHSTREAM DISPLAY "ELECTRIC PARKING BRAKE"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus OFF	The parking brake ECU assembly cannot send/receive data.	Both conditions are met: The power switch is on (IG). The power source voltage of the parking brake ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait several seconds. (The time required to wait varies depending on the communication timing.)	Brake warning light (yellow) illuminates.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0124	Lost Communication with Lateral Acceleration Sensor Module	The parking brake ECU assembly is unable to receive certain data from the skid control ECU assembly or yaw rate sensor assembly.	Both conditions are met: Vehicle speed is 7 km/h (4 mph) or more. The power source voltage of the parking brake ECU assembly is 10 V or more.	Drive the vehicle at a speed of 7 km/h (4 mph) or more.	Brake warning light (yellow) illuminates.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication With Brake System Control Module	Either of the following conditions is met: The parking brake ECU assembly does not receive data from the skid control ECU assembly for 1 second or more. The parking brake ECU assembly does not receive data from the skid control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the parking brake ECU assembly is 10 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	Brake warning light (yellow) illuminates.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with HV ECU	The parking brake ECU assembly does not receive data from the hybrid vehicle control ECU assembly for 10 second or more.	Both conditions are met: Vehicle speed is 15 km/h (9 mph) or more. The power source voltage of the parking brake ECU assembly is 10 V or more.	Drive the vehicle at a speed of 15 km/h (9 mph) or more for 10 seconds or more.	Brake warning light (yellow) illuminates.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Tire Pressure Warning ECU and Receiver / Techstream Display "Tire Pressure Monitor"

Chassis > Tire Pressure Monitor > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

TIRE PRESSURE WARNING ECU AND RECEIVER / TECHSTREAM DISPLAY "TIRE PRESSURE MONITOR"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0129	Lost Communication with Brake System Control Module	The tire pressure warning ECU and receiver does not receive data from the skid control ECU assembly for 60 seconds or more.	The power switch is on (IG) for 3 seconds or more.	Turn the power switch on (IG) and wait for at least 63 seconds.	-	-	DTC remains stored only while malfunction is occurring.

Absorber Control ECU (w/ AVS) / Techstream Display "Air suspension"

Chassis > Air suspension > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

ABSORBER CONTROL ECU / TECHSTREAM DISPLAY "AIR SUSPENSION"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0101	Lost Communication with TCM	The absorber control ECU does not receive data from the hybrid vehicle control ECU assembly for 6 seconds or more.	All conditions are met: The power switch is on (IG) for 1 second or more. Vehicle speed is 30 km/h (19 mph) or more. The power source voltage of the absorber control ECU is 10 V or more.	Drive the vehicle at a speed of 30 km/h (19 mph) or more for 6 seconds or more.	-	-	DTC is stored until it is cleared using the Techstream.
U0122	Lost Communication with Vehicle Dynamics Control Module	The absorber control ECU does not receive data from the skid control ECU assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 2 seconds or more. The power source voltage of the absorber control ECU is 10 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0124	Lost Communication with Lateral Acceleration Sensor Module	The absorber control ECU does not receive data from the yaw rate sensor assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the absorber control ECU is 10 V or more.	Turn the power switch on (IG) and wait for at least 4 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The absorber control ECU does not receive data from the steering sensor for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the absorber control ECU is 10 V or more.	Turn the power switch on (IG) and wait for at least 4 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Vehicle Control System	The absorber control ECU does not receive data from the hybrid vehicle control ECU assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. Vehicle speed is 30 km/h (19 mph) or more. The power source voltage of the absorber control ECU is 10 V or more.	Drive the vehicle at a speed of 30 km/h (19 mph) or more for 3 seconds or more.	-	-	DTC is stored until it is cleared using the Techstream.

Parking Assist ECU (w/ Panoramic View Monitor System) / Techstream Display "Panoramic View Monitor"

Chassis > Panoramic View Monitor > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: The parking assist ECU stores U1000 if an internal error related to the CAN communication system is detected.
Refer to DTC U1000: CAN Communication Failure (Message Registry) [10/2015 - 08/2019]

PARKING ASSIST ECU / TECHSTREAM DISPLAY "PANORAMIC VIEW MONITOR"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0073	Control Module Communication Bus Off	The parking assist ECU does not send/receive data for 12.9 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 15.9 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM/PCM "A"	The parking assist ECU does not receive data from the hybrid vehicle control ECU for 11.24 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 14.24 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The parking assist ECU does not receive data from the steering sensor for 1.12 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 4.12 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The parking assist ECU does not receive data from the skid control ECU assembly for 1.12 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 4.12 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Main Body ECU	The parking assist ECU does not receive data from the main body ECU (multiplex network body ECU) for 4 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 7 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The parking assist ECU does not receive data from the radio receiver assembly for 11 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0233	Lost Communication with Blind Spot Monitor Master Module	The parking assist ECU does not receive data from the blind spot monitor sensor LH for 11 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0265	Lost Communication with Image Processing Sensor A	The parking assist ECU does not receive data from the rear television camera assembly for 2 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0266	Lost Communication with Image Processing Sensor B	The parking assist ECU does not receive data from the side camera LH (outer rear view mirror assembly LH) for 2 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0267	Lost Communication with Image Processing Sensor C	The parking assist ECU does not receive data from the front television camera assembly for 2 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0268	Lost Communication with Image Processing Sensor D	The parking assist ECU does not receive data from the side camera RH (outer rear view mirror assembly RH) for 2 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	The parking assist ECU does not send/receive data.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 3 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1110	Lost Communication with Clearance Warning ECU	The parking assist ECU does not receive data from the clearance warning ECU assembly for 11 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the parking assist ECU is 7.5 V or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Rear Television Camera Assembly (w/ Parking Assist Monitor System) / Techstream Display "Parking Assist Camera"

Chassis > Parking Assist Camera > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.
*: The rear television camera assembly stores U1000 if an internal error related to the CAN communication system is detected.
Refer to DTC U1000: CAN Communication Failure (Message Registry) [10/2015 - 08/2019]

REAR TELEVISION CAMERA ASSEMBLY / TECHSTREAM DISPLAY "PARKING ASSIST CAMERA"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The rear television camera assembly does not receive data from the ECM assembly for 11 seconds or more.	The power switch is on (IG) for 3 seconds or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The rear television camera assembly does not receive data from the steering sensor for 0.036 seconds or more.	The power switch is on (IG) for 3 seconds or more.	Turn the power switch on (IG) and wait for at least 3.036 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The rear television camera assembly does not receive data from the skid control ECU assembly for 11 seconds or more.	The power switch is on (IG) for 3 seconds or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The rear television camera assembly does not receive data from the main body ECU (multiplex network body ECU) for 11 seconds or more.	The power switch is on (ACC) for 3 seconds or more.	Turn the power switch on (ACC) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The rear television camera assembly does not receive data from the radio receiver assembly for 11 seconds or more.	The power switch is on (ACC) for 3 seconds or more.	Turn the power switch on (ACC) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0293	Lost Communication with Hybrid Control Module	The rear television camera assembly does not receive data from the hybrid vehicle control ECU assembly for 11 seconds or more.	The power switch is on (IG) for 3 seconds or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	When the power switch is turned on (IG), a CAN communication malfunction is detected.	The power switch is on (IG).	Turn the power switch on (IG).	-	-	DTC remains stored only while malfunction is occurring.
U1110	Lost Communication with Intuitive Parking Assist Module	The rear television camera assembly does not receive data from the clearance warning ECU assembly for 11 seconds or more.	The power switch is on (IG) for 3 seconds or more.	Turn the power switch on (IG) and wait for at least 14 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Combination Meter Mirror ECU (Headup Display) (w/ Headup Display System) / Techstream Display "Head Up Display"

Body Electrical > Head Up Display > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

COMBINATION METER MIRROR ECU (HEADUP DISPLAY) / TECHSTREAM DISPLAY "HEAD UP DISPLAY"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The combination meter mirror ECU (headup display) does not receive data from the ECM assembly for 2 seconds or more.	All conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the combination meter mirror ECU (headup display) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 5 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The combination meter mirror ECU (headup display) does not receive data from the main body ECU (multiplex network body ECU) for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the combination meter mirror ECU (headup display) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The combination meter mirror ECU (headup display) does not receive data from the radio receiver assembly for 3 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the combination meter mirror ECU (headup display) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U023A	Lost Communication with Front Camera Module	The combination meter mirror ECU (headup display) does not receive data from the forward recognition camera for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the combination meter mirror ECU (headup display) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U1104	Lost Communication with Driving Support ECU	The combination meter mirror ECU (headup display) does not receive data from the driving support ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the combination meter mirror ECU (headup display) is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 13 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Multiplex network door ECU / Techstream Display "Back Door"

Body Electrical > Back Door > Trouble Codes

HINT:

DTC communication uses the CAN communication system.

MULTIPLEX NETWORK DOOR ECU / TECHSTREAM DISPLAY "BACK DOOR"

DTC No.	Detection Item	DTC Detection Condition	DTC Detection Precondition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0101	Lost Communication with TCM	The multiplex network door ECU does not receive data from the hybrid vehicle control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the multiplex network door ECU is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0122	Lost Communication with Vehicle Dynamics Control Module	The multiplex network door ECU does not receive data from the skid control ECU assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the multiplex network door ECU is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication With Body Control Module "B"	The multiplex network door ECU does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the multiplex network door ECU is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module (Combination Meter)	The multiplex network door ECU does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the multiplex network door ECU is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.
U0327	Software Incompatibility with Vehicle Security Control Module	The multiplex network door ECU does not receive data from the certification ECU (smart key ECU assembly) for 10 seconds or more.	Both conditions are met: The power switch is on (IG). The power source voltage of the multiplex network door ECU is 10.5 V or more.	Turn the power switch on (IG) and wait for at least 10 seconds.	-	-	DTC is stored until it is cleared using the Techstream.

Airbag Sensor Assembly / Techstream Display "SRS Airbag"

Body Electrical > SRS Airbag > Trouble Codes

HINT:

This ECU uses the CAN communication system for DTC communication.

AIRBAG SENSOR ASSEMBLY / TECHSTREAM DISPLAY "SRS AIRBAG"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0154	Lost Communication with Restraints Occupant Classification System Module	The airbag sensor assembly does not receive data from the occupant detection ECU for 5 seconds or more.	The power switch is on (IG) for 1 seconds or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	SRS warning light illuminates.	-	DTC is stored until it is cleared using the Techstream.

Occupant Detection ECU / Techstream Display "Occupant Detection"

HINT:

This ECU uses the CAN communication system for DTC communication.

Body Electrical > Occupant Detection > Trouble Codes

OCCUPANT DETECTION ECU / TECHSTREAM DISPLAY "OCCUPANT DETECTION"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	Multi-information Display	DTC Storage Method
U0125	Lost Communication with Multi-axis Acceleration Sensor Module	The occupant detection ECU does not receive data from the yaw rate sensor assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 3 seconds or more. The power source voltage of the occupant detection ECU is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 8 seconds.	SRS warning light illuminates.	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The occupant detection ECU does not receive data from the skid control ECU assembly for 5 seconds or more.	Both conditions are met: The power switch is on (IG) for 1 second or more. The power source voltage of the occupant detection ECU is 9.5 V or more.	Turn the power switch on (IG) and wait for at least 6 seconds.	SRS warning light illuminates.	-	DTC is stored until it is cleared using the Techstream.

Network Gateway ECU / Techstream Display "Central Gateway"
HINT:

The network gateway ECU is connected to the CAN communication system, but the network gateway ECU does not store or output CAN communication DTCs.
Steering Sensor
HINT:

The steering sensor is connected to the CAN communication system, but the steering sensor does not store or output CAN communication DTCs.
Position Control ECU and Switch Assembly LH / Techstream Display "Driver Seat"
HINT:

The position control ECU and switch assembly LH is connected to the CAN communication system, but the position control ECU and switch assembly LH does not store or output CAN communication DTCs.
Millimeter Wave Radar Sensor Assembly
HINT:

The millimeter wave radar sensor assembly is connected to the CAN communication system, but the millimeter wave radar sensor assembly does not store or output CAN communication DTCs.
Yaw Rate Sensor Assembly
HINT:

The yaw rate sensor assembly is connected to the CAN communication system, but the yaw rate sensor assembly does not store or output CAN communication DTCs.
Front television camera assembly (w/ Panoramic View Monitor System)
HINT:

The front television camera assembly is connected to the CAN communication system, but the front television camera assembly does not store or output CAN communication DTCs.
Side camera LH (outer rear view mirror assembly LH) (w/ Panoramic View Monitor System)
HINT:

The side camera LH (outer rear view mirror assembly LH) is connected to the CAN communication system, but the side camera LH (outer rear view mirror assembly LH) does not store or output CAN communication DTCs.
Side camera RH (outer rear view mirror assembly RH) (w/ Panoramic View Monitor System)
HINT:

The side camera RH (outer rear view mirror assembly RH) is connected to the CAN communication system, but the side camera RH (outer rear view mirror assembly RH) does not store or output CAN communication DTCs.
Rear Television Camera Assembly (w/ Panoramic View Monitor System)
HINT:

The rear television camera assembly is connected to the CAN communication system, but the rear television camera assembly does not store or output CAN communication DTCs.

CAN BUS WAVEFORMS

HINT:

This waveform is measured between terminals CANH and GND, and terminals CANL and GND of the network gateway ECU. (Use this as a reference for diagnosis of CAN communication lines.)
When malfunctions in multiple ECUs are suspected based on the CAN bus check and DTCs checked using the Techstream, check the resistance of the CAN bus using an ohmmeter first. If no problems are found, check the following waveforms.
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - 08/2019]
If a waveform is not similar to one of the following 3 patterns (Group 1), then an open in a CAN main bus line, an open in a CAN branch line, or a short between a CAN line (CANH or CANL) and ground is suspected (Group 2).
Wiggle the connector and wire harness to check if the waveform changes.

CAN bus waveforms (Group 1)

Normal waveform

Open in both of the lines (CANH and CANL) of a CAN branch

HINT:

Waveforms (waveforms shown using dotted lines) are not present from an ECU or sensor connected to a CAN branch with an open circuit in both lines. (Waveforms from other ECUs or sensors are normal.)
Because this waveform is similar to a normal waveform, instead of using the waveform, the malfunctioning part can be narrowed down by performing a CAN bus check.

Short between the CAN bus lines (CANH and CANL)

HINT:

Waveforms disappear.
If the malfunction is in an ECU, disconnecting the ECU will change the waveform. If the waveform does not change, a malfunction in the wire harness is suspected.

CAN bus waveforms (reference) (Group 2)

NOTE:

The following CAN bus waveforms can be used only as reference. The actual measured waveform may differ significantly depending on the location of the open or short circuit.

Open in a CAN branch line (CANH)

HINT:

An abnormal waveform is output from an ECU with an open in one of its CAN branch lines. Because this abnormal output interferes with the signals from other ECUs, the output of other ECUs will also appear abnormal.
Narrow down the malfunctioning part by checking DTCs or performing a CAN bus check, or by checking waveform changes when ECUs or sensors are disconnected. The waveform will change to one for an open in both sides of a CAN branch when the ECU or sensor with an open CAN branch line is disconnected.

Open in a CAN branch line (CANL)

HINT:

An abnormal waveform is output from an ECU with an open in one of its CAN branch lines. Because this abnormal output interferes with the signals from other ECUs, the output of other ECUs will also appear abnormal.
Narrow down the malfunctioning part by checking DTCs or performing a CAN bus check, or by checking waveform changes when ECUs or sensors are disconnected. The waveform will change to one for an open in both sides of a CAN branch when the ECU or sensor with an open CAN branch line is disconnected.

Open in a CAN main bus line (CANH)

HINT:

Waveforms of ECUs or sensors that are closer to the DLC3 than the open part are almost normal.
Waveforms of ECUs or sensors that are on the opposite side of the DLC3 from the open part are abnormal.
An open in a CAN main bus line can be confirmed by measuring the resistance between the CANH and CANL terminals of any CAN branch.

Short between a CAN bus line (CANH) and ground

HINT:

Narrow down the shorted part by checking for waveform changes when disconnecting connectors from the CAN junction connectors or when disconnecting ECUs or sensors.
A short to ground in the CANH line can be confirmed by measuring the resistance between CANH and ground using an ohmmeter.

Short between a CAN bus line (CANL) and ground

HINT:

Narrow down the shorted part by checking for waveform changes when disconnecting connectors from the CAN junction connectors or when disconnecting ECUs or sensors.
A short to ground in the CANL line can be confirmed by measuring the resistance between CANL and ground using an ohmmeter.

DATA SENDING/RECEIVING TABLE

Data sending/receiving table

HINT:

If Data List items related to sent/received data are not displayed properly, the part for which communication is interrupted can be determined using the table below.

Data Content	Data Detected and Sent by	Data Received by (Can be Checked in the Data List)	Data Received by (Cannot be Checked in the Data List)	Selected System	Relevant Data List Item	Link
Accelerator position	Hybrid vehicle control ECU assembly	Skid control ECU assembly	-	Hybrid Control	Accel Pedal Pos #1	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
Accelerator position	Hybrid vehicle control ECU assembly	Skid control ECU assembly	-	ABS/VSC/TRAC	Accelerator Opening Angle %	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Engine speed	ECM assembly	Hybrid vehicle control ECU assembly	-	Engine and ECT	Engine Speed	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Engine speed	ECM assembly	Hybrid vehicle control ECU assembly	-	Hybrid Control	Engine Revolution	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
Engine coolant temperature	ECM assembly	Combination meter assembly Air conditioning amplifier assembly Hybrid vehicle control ECU assembly	-	Engine and ECT	Coolant Temp	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Combination Meter	Coolant Temperature	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Air Conditioner	Engine Coolant Temp	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Hybrid Control	Engine Coolant Temp	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
Vehicle speed	Skid control ECU assembly	Hybrid vehicle control ECU assembly Radio receiver assembly Driving support ECU assembly Power steering ECU assembly Combination meter assembly*3 Combination meter mirror ECU (headup display) Parking assist ECU Occupant detection ECU Parking brake ECU assembly	Telematics transceiver Forward recognition camera Airbag sensor assembly Main body ECU (multiplex network body ECU)	ABS/VSC/TRAC	Vehicle Speed	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Hybrid Control	Vehicle Spd	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Navigation System	Vehicle Speed*9	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Navigation System	Vehicle Speed*10	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				Radar Cruise2	Vhcl Spd-Brake ECU	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				EMPS	Meter Vehicle Velocity	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Combination Meter	Vehicle Speed Meter	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Head Up Display	Vehicle Speed Meter	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Panoramic View Monitor	Wheel Speed Sensor (4 Wheel)	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Occupant Detection	VSC Vehicle Speed	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Electric Parking Brake	Vehicle Speed	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Vehicle speed	Combination meter assembly*3	Position Control ECU and Switch Assembly LH Certification ECU (smart key ECU assembly)	Telematics transceiver Multiplex network door ECU Main body ECU (multiplex network body ECU) Air conditioning amplifier assembly Multiplex tilt and telescopic ECU	Combination Meter	Vehicle Speed Meter	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Driver Seat	Vehicle Speed	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Power Source Control	Vehicle Speed Signal	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Wheel speed	Skid control ECU assembly	Absorber control ECU Headlight ECU sub-assembly LH Power steering ECU assembly Hybrid vehicle control ECU assembly Parking brake ECU assembly	Parking assist ECU Radio receiver assembly Forward recognition camera Clearance warning ECU assembly Blind spot monitor sensor LH Airbag sensor assembly Driving support ECU assembly	ABS/VSC/TRAC	FR Wheel Speed	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Air suspension	FL Wheel Speed	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				AFS*5	FR Wheel Speed	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				HL AutoLeveling*6	Front Rght Wheel Speed Value	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				EMPS	Wheel Speed Right	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Hybrid Control	FR Wheel Speed	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Electric Parking Brake	FR Wheel Speed	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Shift position	Hybrid vehicle control ECU assembly	Radio receiver assembly Clearance warning ECU assembly Blind spot monitor sensor LH Parking brake ECU assembly Position control ECU and switch assembly LH Certification ECU (smart key ECU assembly) Skid control ECU assembly	Multiplex network door ECU Telematics transceiver Parking assist ECU Forward recognition camera Driving support ECU assembly Tire pressure warning ECU and receiver Airbag sensor assembly Combination meter assembly*2 Combination meter mirror ECU (headup display) Main body ECU (multiplex network body ECU) Headlight ECU sub-assembly LH	Hybrid Control	Shift Sensor SW - PNB	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Navigation System	Reverse Signal*9	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Navigation System	Reverse Signal*10	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				Advanced Parking Guidance/ICS/Intuitive P/A	Parking Signal	Refer to DATA LIST / ACTIVE TEST [08/2016 - 08/2019]
				Blind Spot Monitor Master	Reverse (Only for AT/CVT)	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Electric Parking Brake	Shift Position	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Driver Seat	P Switch	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Power Source Control	Shift P Signal	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				ABS/VSC/TRAC	Shift Lever Position	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Ambient temperature	Air conditioning amplifier assembly	Combination meter assembly Hybrid vehicle control ECU assembly Parking brake ECU assembly	ECM assembly Telematics transceiver Radio receiver assembly Forward recognition camera Driving support ECU assembly Clearance warning ECU assembly Main body ECU (multiplex network body ECU) Combination meter mirror ECU (headup display)	Air Conditioner	Ambient Temp Sensor	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Combination Meter	Ambient Temperature	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Hybrid Control	Ambient Temperature	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Electric Parking Brake	Ambient Temperature	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Driver door courtesy switch	Main body ECU (multiplex network body ECU)	-	Hybrid vehicle control ECU assembly Parking brake ECU assembly Telematics transceiver Radio receiver assembly Parking assist ECU Forward recognition camera Multiplex network door ECU Combination meter assembly*2 Certification ECU (smart key ECU assembly)	Main Body	FL Door Courtesy SW	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Steering angle	Steering sensor	Blind spot monitor sensor LH Skid control ECU assembly Absorber control ECU Hybrid vehicle control ECU assembly Headlight ECU sub-assembly LH Power steering ECU assembly	Radio receiver assembly Parking assist ECU Side camera LH (outer rear view mirror assembly LH) Forward recognition camera Clearance warning ECU assembly Rear television camera assembly Airbag sensor assembly Combination meter assembly Driving support ECU assembly	Blind Spot Monitor Master	Steering Angle	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				ABS/VSC/TRAC	Steering Angle Sensor	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Air suspension	Steering Angle	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Hybrid Control	Steering Angle	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				AFS*5	Steering Sens Signal	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				HL AutoLeveling*6	Steering Sens Signal	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				EMPS	Steering Angle Velocity	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Yaw rate	Yaw rate sensor assembly	Driving support ECU assembly Blind spot monitor sensor LH Hybrid vehicle control ECU assembly Skid control ECU assembly	Radio receiver assembly Forward recognition camera Power steering ECU assembly Airbag sensor assembly	Radar Cruise2	Yaw Rate Sensor	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Blind Spot Monitor Master	Yaw Rate Sensor	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Hybrid Control	Yaw Rate Value	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				ABS/VSC/TRAC	Yaw Rate Sensor	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Acceleration	Yaw rate sensor assembly	Driving support ECU assembly Skid control ECU assembly Hybrid vehicle control ECU assembly Parking brake ECU assembly	Absorber control ECU Radio receiver assembly Forward recognition camera Clearance warning ECU assembly Occupant detection ECU Power steering ECU assembly Airbag sensor assembly Combination meter assembly	Radar Cruise2	Vehicle Acceleration	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				ABS/VSC/TRAC	Deceleration Sensor	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Hybrid Control	Forward and Rearward G	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
				Electric Parking Brake	Deceleration Sensor 1	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Ignition switch condition	Main body ECU (multiplex network body ECU)	Multiplex tilt and telescopic ECU Position control ECU and switch assembly LH Multiplex network door ECU Certification ECU (smart key ECU assembly) Radio receiver assembly	Hybrid vehicle control ECU assembly Side camera RH (outer rear view mirror assembly RH) Side camera LH (outer rear view mirror assembly LH) Front television camera assembly Rear television camera assembly Outer mirror control ECU assembly (for driver side) Outer mirror control ECU assembly (for front passenger side) Combination meter assembly*2 Combination meter mirror ECU (headup display) Headlight ECU sub-assembly LH Parking brake ECU assembly	Main Body	IG SW	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Tilt&Telescopic	IG Switch (CAN)	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Driver Seat	Ignition Switch	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Back Door	IG SW	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
				Power Source Control	Power Supply Condition	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Navigation System	Ignition*9	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Navigation System	Ignition*10	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
Stop light switch signal	Skid control ECU assembly	Absorber control ECU Parking brake ECU assembly Certification ECU (smart key ECU assembly)	Telematics transceiver Radio receiver assembly Driving support ECU assembly Clearance warning ECU assembly Airbag sensor assembly Multiplex network door ECU	ABS/VSC/TRAC	Stop Light SW	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				Air suspension	Stop Light Switch	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
				Electric Parking Brake	Stop Light Switch	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Power Source Control	Stop Light Switch1	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Driver side buckle switch signal	Airbag sensor assembly	-	Telematics transceiver (for G-BOOK) Combination meter assembly2 Main body ECU (multiplex network body ECU)4	SRS Airbag	Left side Buckle SW	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Driver side buckle switch signal	Main body ECU (multiplex network body ECU)*4	-	Telematics transceiver (for G-BOOK) Forward recognition camera Clearance warning ECU assembly Skid control ECU assembly Combination meter assembly*2 Parking brake ECU assembly	-	-	-
Passenger side buckle switch signal	Airbag sensor assembly	-	Telematics transceiver (for G-BOOK) Combination meter assembly	SRS Airbag	Right Side Buckle SW	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Passenger side buckle switch signal	Occupant detection ECU	Airbag sensor assembly	-	Occupant Detection	Passenger Buckle SW	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Side turn signal	Combination meter assembly*2	Forward recognition camera Blind spot monitor sensor LH Driving support ECU assembly	Clearance warning ECU assembly Headlight ECU sub-assembly LH	Combination Meter	Turn Signal Switch (Right)	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
				LKA/LDA	Turn Signal Switch (Right)	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Blind spot monitor Master	Turn Switch State	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
				Pre-Collision 2	Turn Light RH	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
ECM assembly power source voltage*1	ECM assembly	-	-	Engine and ECT	Battery Voltage	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Hybrid vehicle control ECU assembly power source voltage*1	Hybrid vehicle control ECU assembly	-	-	Hybrid Control	+B	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
Combination meter assembly power source voltage*1	Combination meter assembly	-	-	Combination Meter	+B Voltage Value	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Skid control ECU assembly power source voltage*1	Skid control ECU assembly	-	-	ABS/VSC/TRAC	IG1 Voltage Value	Refer to DATA LIST / ACTIVE TEST [08/2018 - 08/2019]
Power steering ECU assembly power source voltage*1	Power steering ECU assembly	-	-	EMPS	IG Power Supply	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Radio receiver assembly power source voltage*1	Radio receiver assembly	-	-	Navigation System	Battery Voltage*9	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Radio receiver assembly power source voltage*1	Radio receiver assembly			Navigation System	Battery Voltage*10	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
Absorber control ECU power source voltage*1	Absorber control ECU	-	-	Air suspension	IG Power Source Voltage	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Solar sensor*1	Air conditioning amplifier assembly	-	-	Air Conditioner	Solar Sensor (D Side)	Refer to DATA LIST / ACTIVE TEST [03/2018 - 08/2019]
Driver door touch sensor*1	Certification ECU (smart key ECU assembly)	-	-	Smart Access	D-Door Touch Sensor	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Clearance sonar main switch condition*1	Clearance warning ECU assembly	-	-	Advanced Parking Guidance/ICS/Intuitive P/A	Main Switch	Refer to DATA LIST / ACTIVE TEST [08/2016 - 08/2019]
Outer mirror control ECU assembly (for driver side) power source voltage*1	Outer mirror control ECU assembly (for driver side)	-	-	Mirror L	+B Voltage Input Value	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Outer mirror control ECU assembly (for front passenger side) power source voltage*1	Outer mirror control ECU assembly (for front passenger side)	-	-	Mirror R	+B Voltage Input Value	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Position control ECU and switch assembly LH power source voltage*1	Position control ECU and switch assembly LH	-	-	Driver Seat	Power Voltage	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Multiplex tilt and telescopic ECU power source voltage*1	Multiplex tilt and telescopic ECU	-	-	Tilt&Telescopic	Power Source Voltage	Refer to DATA LIST / ACTIVE TEST [10/2015 - ]
Headlight ECU sub-assembly LH power source voltage*1	Headlight ECU sub-assembly LH	-	-	HL Auto Leveling*6	+B Voltage Value	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
Headlight ECU sub-assembly LH power source voltage*1	Headlight ECU sub-assembly LH	-	-	AFS*5	+B Voltage Value	Refer to DATA LIST / ACTIVE TEST [12/2017 - 08/2019]
Panoramic view monitor main switch condition*1	Parking assist ECU	-	-	Panoramic View Monitor	Camera Changing SW Signal Status	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Combination meter mirror ECU (headup display) power source voltage*1	Combination meter mirror ECU (headup display)	-	-	Head Up Display	+B Voltage Value	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]
Parking brake ECU assembly power source voltage*1	Parking brake ECU assembly	-	-	Electric Parking Brake	ECU +B1 Voltage	Refer to DATA LIST / ACTIVE TEST [10/2015 - 08/2019]

*1: Whether the ECU that sends data is functioning or not can be judged by using the Techstream to check items such as switches or sensors that send signals to the ECU via direct lines.

*2: Although the received contents cannot be checked in the Data List, whether or not the data is received normally can be checked by observing the combination meter assembly.

*3: The combination meter assembly receives a vehicle speed signal from the skid control ECU assembly and sends the signal to other ECUs.

*4: The main body ECU (multiplex network body ECU) receives a driver seat buckle switch signal from the airbag sensor assembly and sends the signal to other ECUs.

*5: for Triple Beam Headlight or Single Beam Headlight w/ AFS

*6: for Single Beam Headlight w/o AFS

*7: w/o Intelligent Clearance Sonar System

*8: w/ Intelligent Clearance Sonar System

*9: w/ Navigation System

*10: w/ Audio and Visual System
