Check Bus 4 Lines for Short Circuit [10/2015 - 08/2019]: Wiring Diagram

GTY954767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

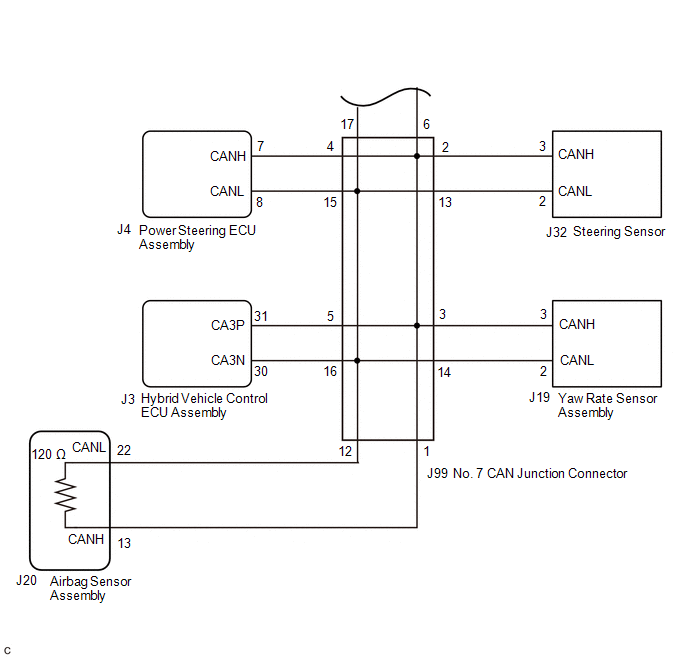

GTY627388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
