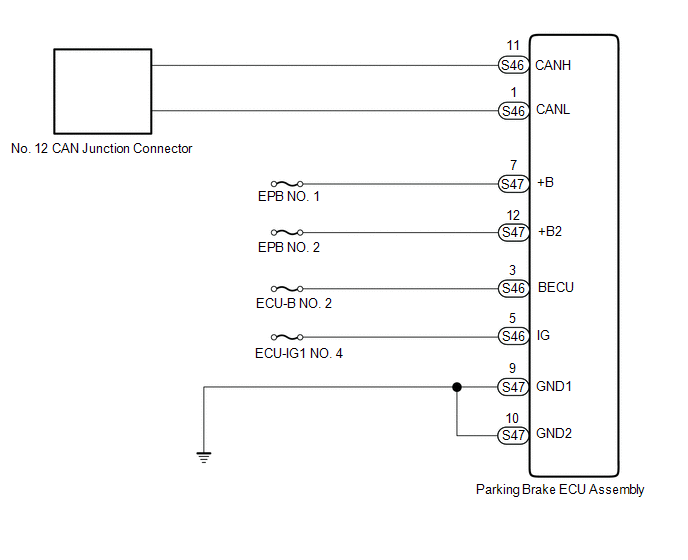

Electric Parking Brake ECU Communication Stop Mode [10/2015 - 03/2018]: Wiring Diagram

GTY627637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
