Parts Location [08/2016 - 08/2019]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

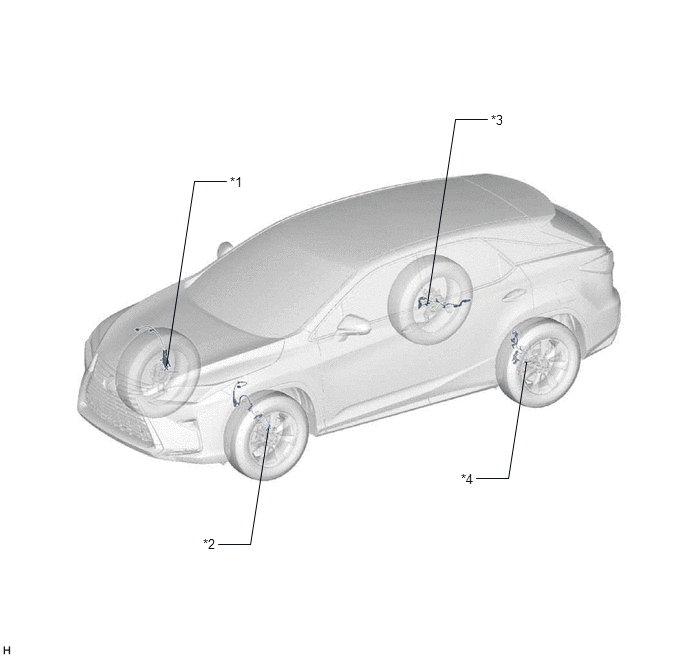

*1	FRONT SPEED SENSOR RH	*2	FRONT SPEED SENSOR LH
*3	REAR SPEED SENSOR RH	*4	REAR SPEED SENSOR LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DRIVING SUPPORT ECU ASSEMBLY	*2	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LKA/LDA INDICATOR - LKA/LDA BUZZER
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH	*4	STEERING PAD SWITCH ASSEMBLY - LKA/LDA MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH)
*5	YAW RATE SENSOR ASSEMBLY	*6	SKID CONTROL ECU ASSEMBLY
*7	HYBRID VEHICLE CONTROL ECU ASSEMBLY	*8	DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	NETWORK GATEWAY ECU
*3	STEERING SENSOR	*4	POWER STEERING ECU ASSEMBLY
*5	STEERING VIBRATION ECU	*6	STEERING VIBRATION MOTOR
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	-	-
