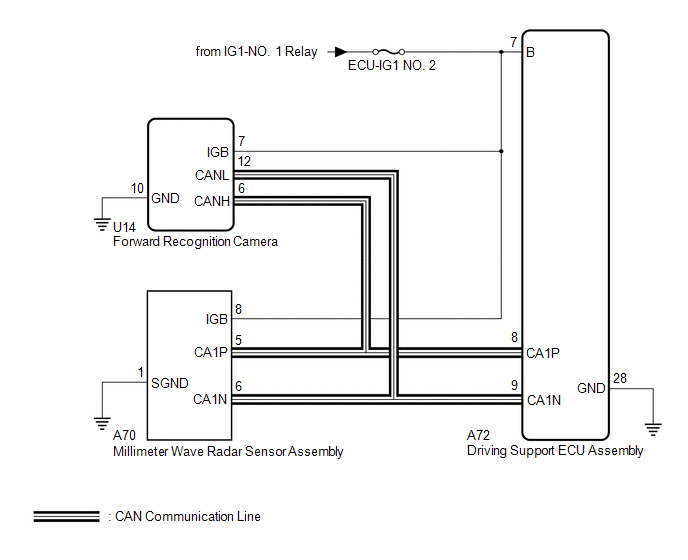

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [10/2015 - 08/2019]: Wiring Diagram

GTY673242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
