Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4[12/2017 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 5[12/2017 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  4. REMOVE DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 6[12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8[12/2017 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9[12/2017 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  8. REMOVE OUTER MIRROR PROTECTOR

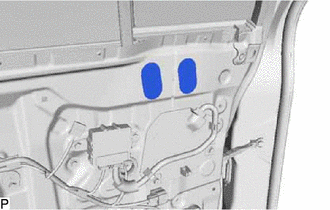

    1. Remove the 2 outer mirror protectors.
      GTY616434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE OUTER MIRROR INSTALL HOLE COVER
    1. w/o Panoramic View Monitor System:

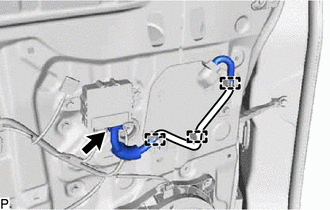

      1. Disconnect the connector.
        GTY616421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 3 clamps.
    2. w/ Panoramic View Monitor System:

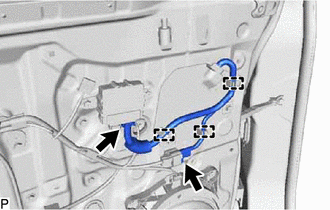

      1. Disconnect the 2 connectors.
        GTY616420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 3 clamps.

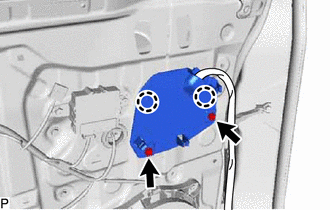

    3. Remove the 2 screws.
      GTY616422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws to remove the outer mirror install hole cover.
  10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

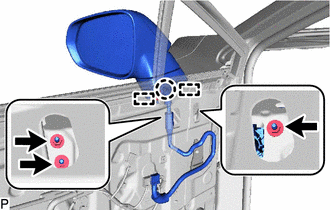

    1. Remove the 3 nuts.
      GTY616423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 2 guides, and remove the outer rear view mirror assembly.
