On-Vehicle Inspection [09/2015 - ]: Procedure

  1. INSPECT HOOD SUB-ASSEMBLY

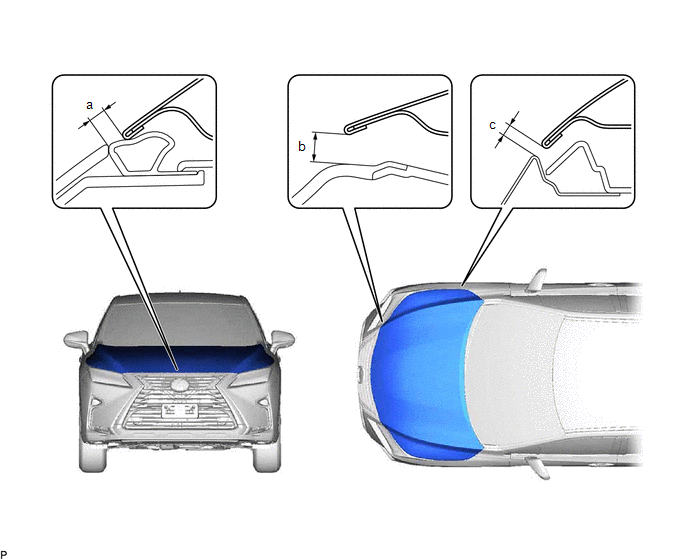

    1. Check that the clearance measurements of areas a through c are within each standard range.
      GTY627335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement Area Measurement
      a 2.95 to 5.95 mm (0.116 to 0.234 in.) b 8.15 mm (0.321 in.)
      c 5.25 mm (0.207 in.) - -
