Removal [08/2016 - 08/2019]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017] Refer to PRECAUTION [12/2017 - 08/2019]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017] Refer to INITIALIZATION [12/2017 - 08/2019]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [08/2016 - 12/2017] Refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] Refer to PROCEDURE - Step 4 [12/2017 - 08/2019]

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [08/2016 - 12/2017] Refer to PROCEDURE - Step 5 [12/2017 - 08/2019]

  6. REMOVE DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6 [08/2016 - 12/2017] Refer to PROCEDURE - Step 6 [12/2017 - 08/2019]

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8 [08/2016 - 12/2017] Refer to PROCEDURE - Step 8 [12/2017 - 08/2019]

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] Refer to PROCEDURE - Step 9 [12/2017 - 08/2019]

  10. REMOVE FRONT DOOR NO. 1 TRIM BRACKET

    Refer to PROCEDURE - Step 20 [08/2016 - 12/2017] Refer to PROCEDURE - Step 20 [12/2017 - 08/2019]

  11. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 21 [08/2016 - 12/2017] Refer to PROCEDURE - Step 21 [12/2017 - 08/2019]

  12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [08/2016 - 12/2017] Refer to PROCEDURE - Step 23 [12/2017 - 08/2019]

  13. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 25 [08/2016 - 12/2017] Refer to PROCEDURE - Step 25 [12/2017 - 08/2019]

  14. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26 [08/2016 - 12/2017] Refer to PROCEDURE - Step 26 [12/2017 - 08/2019]

  15. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 27 [08/2016 - 12/2017] Refer to PROCEDURE - Step 27 [12/2017 - 08/2019]

  16. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 28 [08/2016 - 12/2017] Refer to PROCEDURE - Step 28 [12/2017 - 08/2019]

  17. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

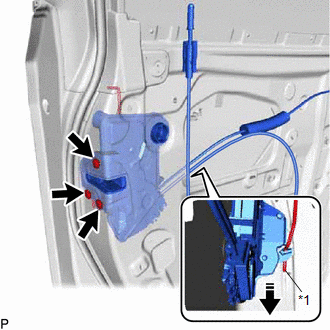

    1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      GTY821529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod
      Remove in this Direction
    2. Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.
    3. When reusing the front door lock with motor assembly:

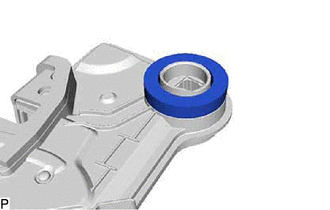

      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
        GTY623736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

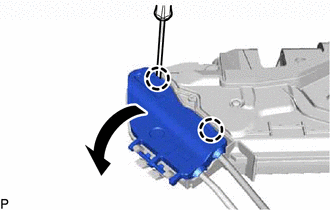

    1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      GTY667229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

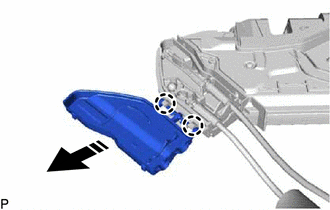

    2. Disengage the 2 claws to remove the front door lock cover sub-assembly as shown in the illustration.
      GTY668623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

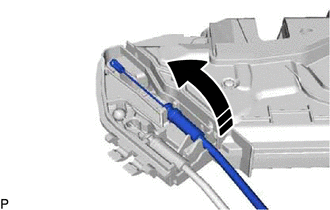

    1. Remove the front door lock remote control cable assembly as shown in the illustration.
      GTY621303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

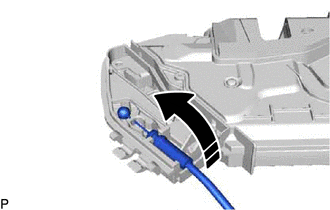

    1. Remove the front door inside locking cable assembly as shown in the illustration.
      GTY632665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
