Removal [12/2017 - 08/2019]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [12/2017 - 08/2019]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- If an SRS part is accidentally deployed, it may cause a serious injury.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2017 - 08/2019]
- REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2017 - ]
- REMOVE REAR DOOR SCUFF PLATE
Refer to PROCEDURE - Step 12
- REMOVE REAR DOOR INSIDE SCUFF PLATE
Refer to PROCEDURE - Step 13
- REMOVE REAR SEAT OUTER TRACK BRACKET COVER LH (for LH Side)
for 60/40 Split Seat Type:
Refer to PROCEDURE - Step 6
for Captain Seat Type:
Refer to PROCEDURE - Step 6
- REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH (for RH Side)
for 60/40 Split Seat Type:
Refer to PROCEDURE - Step 7
for Captain Seat Type:
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 6
- REMOVE FRONT DECK SIDE TRIM COVER
Refer to PROCEDURE - Step 28
- REMOVE REAR SEAT SIDE GARNISH
Refer to PROCEDURE - Step 29
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
Refer to PROCEDURE - Step 26
- REMOVE ROPE HOOK ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 31
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
Refer to PROCEDURE - Step 34
- REMOVE ROPE HOOK ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1
- REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for LH Side)
Refer to PROCEDURE - Step 1
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
Refer to PROCEDURE - Step 35
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
Refer to PROCEDURE - Step 44
- DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

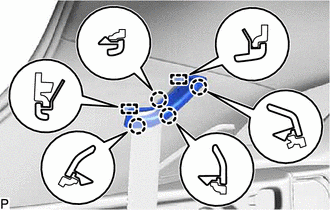

- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY
Refer to PROCEDURE - Step 37
- REMOVE REAR NO. 2 SIDE AIR DUCT (for RH Side)
Refer to PROCEDURE - Step 22
- REMOVE REAR NO. 7 AIR DUCT (for RH Side)
Refer to PROCEDURE - Step 24
- REMOVE REAR NO. 6 AIR DUCT (for RH Side)
Refer to PROCEDURE - Step 25

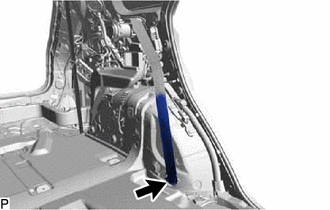

- DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY
- REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

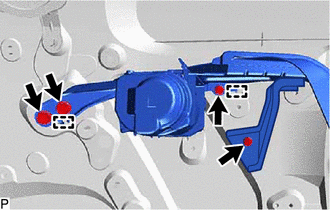

- Remove the 4 bolts.
- Disengage the 2 guides.

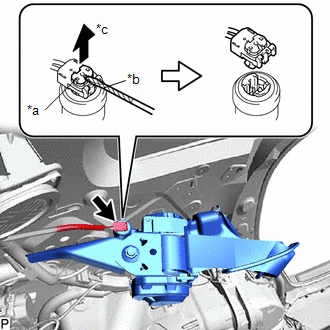

- Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
*a Locking Button *b Protective Tape *c Release HINT:
Tape the screwdriver tip before use.

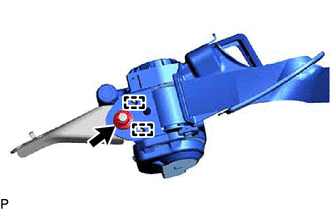

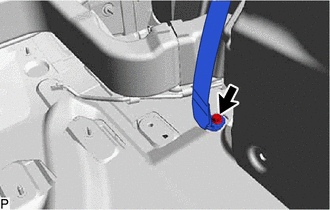

- Remove the nut.
- Disengage the 2 guides to remove the rear No. 1 seat outer belt assembly LH from the outer belt anchor bracket sub-assembly LH.

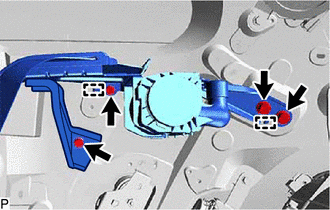

- Remove the 4 bolts.
- REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH

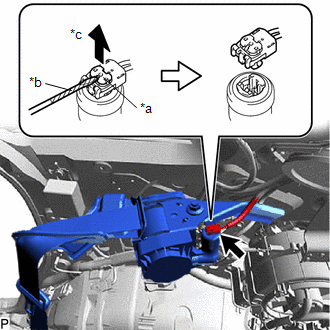

- Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
HINT:
Tape the screwdriver tip before use.
*a Locking Button *b Protective Tape *c Release - Remove the 4 bolts.
- Disengage the 2 guides.

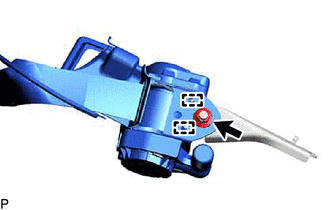

- Remove the nut.
- Disengage the 2 guides to remove the rear No. 1 seat outer belt assembly RH from the outer belt anchor bracket sub-assembly RH.
- Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
