Removal [09/2015 - ]: Procedure

  1. REMOVE V-RIBBED BELT

    Refer to REMOVAL [09/2015 - 08/2016] , or refer to REMOVAL [08/2016 - ]

  2. REMOVE CRANKSHAFT PULLEY
    1. Using SST to hold the crankshaft pulley, loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.

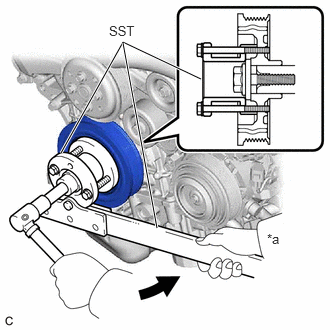

      GTY651566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021
    2. Using SST, remove the crankshaft pulley set bolt and crankshaft pulley.

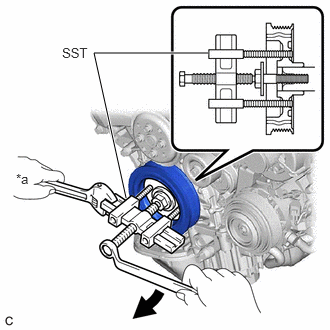

      GTY621276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
      • SST: 09950-50013
        1. 09951-05010
        2. 09952-05010
        3. 09953-05020
        4. 09954-05021
  3. REMOVE TIMING CHAIN CASE OIL SEAL
    1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain case oil seal.

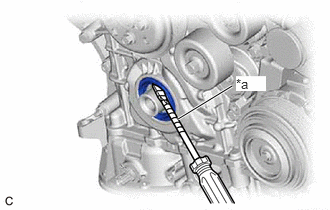

      GTY625866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
