Removal [09/2015 - 08/2016]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2015 - 08/2016]

  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [09/2015 - ]

  4. REMOVE FRONT WHEEL LH

    Refer to PROCEDURE - Step 1

  5. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  6. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  7. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  9. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  10. REMOVE AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 22

  11. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

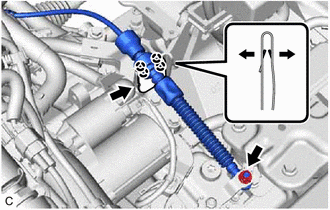

    1. Remove the nut and separate the transmission control cable assembly from the transmission control shaft lever.
      GTY645103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with clip from the No. 1 transmission control cable bracket.
    3. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY444212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT AIR TUBE
    1. Slide the clip and disconnect the air tube from the vacuum pump assembly.

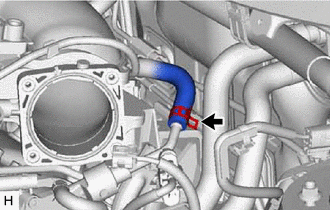

      GTY637347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. DISCONNECT VENTILATION HOSE

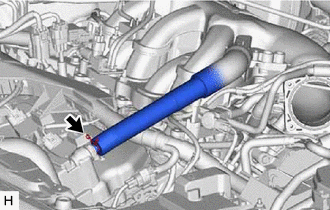

    1. Slide the clip and disconnect the ventilation hose.
      GTY637348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT HEATER WATER HOSE

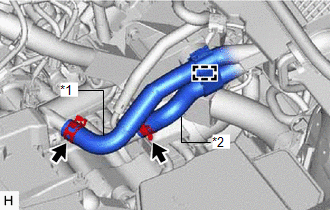

    1. Disengage the clamp.
      GTY628789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Inlet Heater Water Hose
      *2 Outlet Heater Water Hose
    2. Slide the 2 clips and disconnect the inlet heater water hose and outlet heater water hose.
  15. DISCONNECT VACUUM HOSE SUB-ASSEMBLY

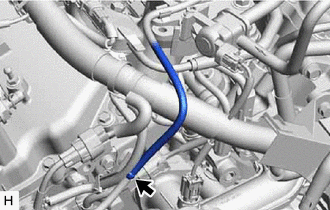

    1. Disconnect the vacuum hose sub-assembly.
      GTY637349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11

  17. SEPARATE ENGINE WIRE
    1. Disconnect the 2 connectors.

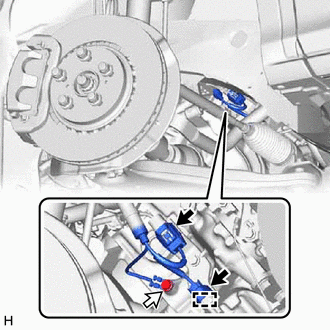

      GTY633001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt
    2. Disengage the clamp.
    3. Remove the bolt.
    4. Disconnect the 8 connectors.

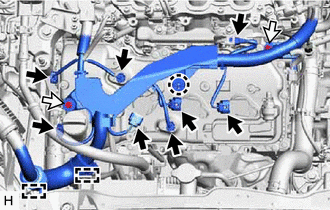

      GTY668621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt

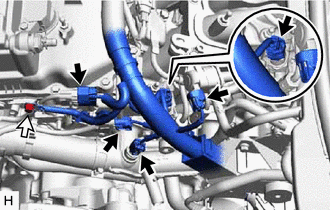

    5. Disengage the 2 clamps and claw.
    6. Remove the 2 bolts.
    7. Disconnect the 5 connectors.
      GTY612413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt

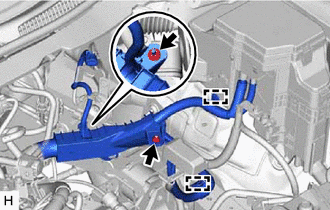

    8. Remove the bolt.
    9. Disengage the 2 clamps.
      GTY637341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the 2 nuts.
    11. Disconnect the 3 connectors.

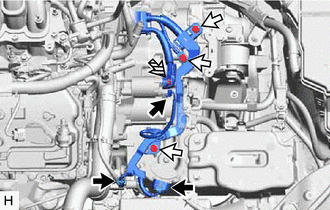

      GTY628105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt
      Nut

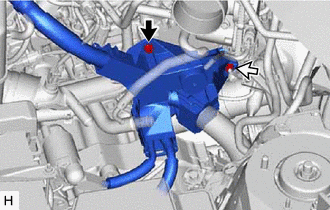

    12. Remove the 3 bolts and nut.
    13. Remove the bolt and nut to separate the engine wire.
      GTY678914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  18. REMOVE VACUUM PUMP ASSEMBLY

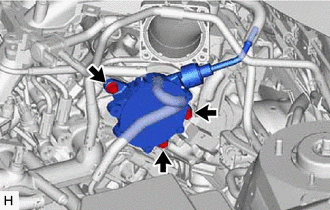

    1. Remove the 3 bolts and vacuum pump assembly from the engine assembly.
      GTY637345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 O-ring and No. 3 O-ring from the vacuum pump assembly.
      GTY653912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 O-ring
      *2 No. 3 O-ring
