Removal [09/2015 - 12/2017]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Lexus Safety System+)

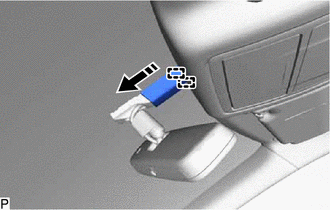

    1. Disengage the 2 guides and slide the inner rear view mirror stay holder cover as shown in the illustration.
      GTY648915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Slide

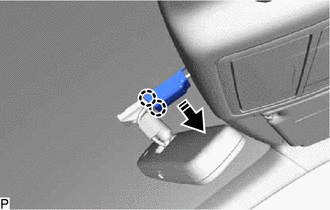

    2. Disengage the 2 claws to remove the inner rear view mirror stay holder cover as shown in the illustration.
      GTY654330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Lexus Safety System+)

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Lexus Safety System+)

    Refer to PROCEDURE - Step 2

  4. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Lexus Safety System+)

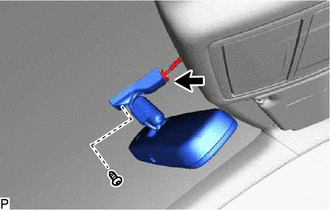

    1. Disconnect the connector.
      GTY684505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T20 "TORX" socket wrench, remove the screw.

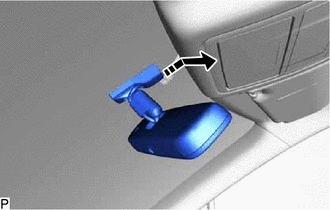

    3. Slide and remove the inner rear view mirror assembly as shown in the illustration.
      GTY623064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Lexus Safety System+)

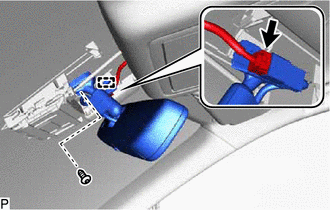

    1. Disconnect the connector.
      GTY666908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Using a T20 "TORX" socket wrench, remove the screw.

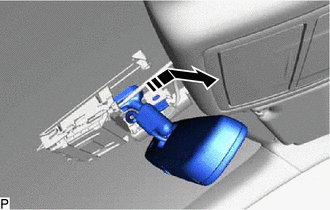

    4. Slide and remove the inner rear view mirror assembly as shown in the illustration.
      GTY677115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
