Removal [08/2016 - 12/2017]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [08/2016 - 12/2017]

  2. REMOVE INSTRUMENT PANEL GARNISH

    Refer to REMOVAL [08/2016 - 12/2017]

  3. REMOVE COWL SIDE TRIM BOARD

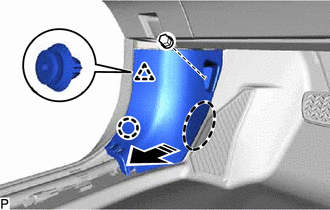

    1. Remove the clip.
      GTY629897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the clip and claw to remove the cowl side trim board as shown in the illustration.
  4. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP

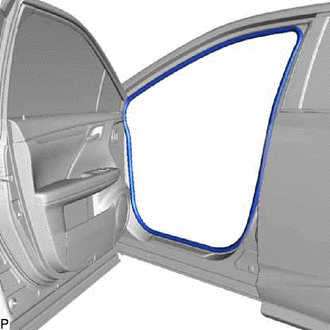

    1. Remove the front door opening trim weatherstrip.
      GTY616258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
