Reassembly [09/2015 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS (for Optitron Meter Type)

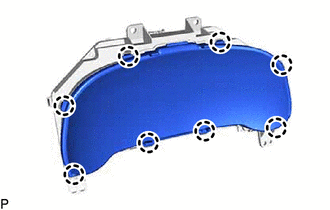

    1. Engage the 8 claws to install the combination meter glass.
      GTY681600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COMBINATION METER GLASS (for TFT Meter Type)

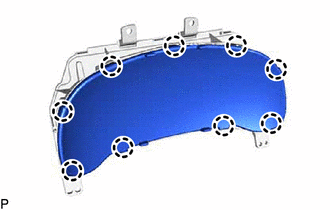

    1. Engage the 9 claws to install the combination meter glass.
      GTY653799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
