Installation [09/2015 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect each connector.
    2. Engage the clamp.
    3. Install the combination meter assembly with the 4 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.

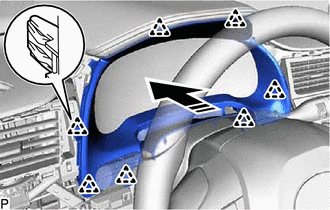

    2. Engage the 7 clips as shown in the illustration.
      GTY652974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the 4 clips and 2 claws to install the instrument cluster finish panel sub-assembly.
  3. INSTALL LOWER INSTRUMENT FINISH PANEL SUB

    Refer to PROCEDURE - Step 32 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 32 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 29 [08/2019 - ]

  4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 6 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 8 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  6. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 9 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 33 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 30 [08/2019 - ]

  8. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 34 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 31 [08/2019 - ]

  9. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 35 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 32 [08/2019 - ]

  10. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 2 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - ]

  11. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 43 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 42 [12/2017 - ]

  12. INSTALL INSTRUMENT PANEL GARNISH LH

    Refer to PROCEDURE - Step 38 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 38 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 35 [08/2019 - ]

  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]

  14. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to CUSTOMIZE PARAMETERS [09/2015 - ]
