Installation [11/2017 - ]: Procedure

  1. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    NOTE:

    If the steering sensor is installed to a misaligned spiral cable sub-assembly, spiral cable with sensor sub-assembly malfunction DTCs will be stored and it will be impossible to clear them. If this happens, replace the spiral cable with sensor sub-assembly with a new one.

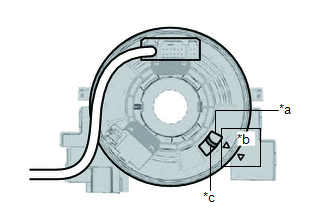

    1. Check if the spiral cable sub-assembly is centered.
      GTY827480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inspection Window
      *b Alignment Mark
      *c Flat Cable

      OK:

      • The connector is positioned at the top.
      • The alignment marks are aligned correctly.
      • The flat cable can be seen in the inspection window.
    2. If the spiral cable sub-assembly is not centered, center it.
      NOTE:

      Make sure to observe the following precautions, otherwise the spiral cable sub-assembly may be damaged.

      • Release the interlock before rotating the spiral cable sub-assembly.
      • Do not rotate the spiral cable sub-assembly using the airbag wire harness.
      • Do not rotate the spiral cable sub-assembly with excessive force.

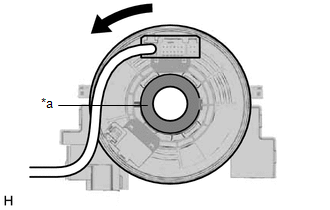

      1. While pushing on the interlock shown in the illustration, rotate the spiral cable sub-assembly counterclockwise slowly by hand until it stops.
        GTY800930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock
        NOTE:

        If the spiral cable sub-assembly is rotated clockwise in this step, it may be damaged and may no longer be able to be centered. Make sure to only rotate the spiral cable sub-assembly counterclockwise.

        HINT:

        If the interlock is engaged, the spiral cable sub-assembly will lock when the connector is near at the top or bottom of the rotation of the spiral cable sub-assembly.

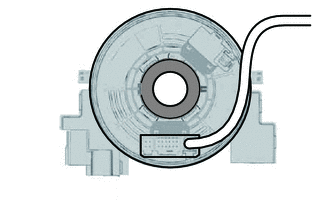

      2. If the connector is not positioned at the bottom of the rotation of the spiral cable sub-assembly when the spiral cable sub-assembly is turned until it stops, turn the spiral cable sub-assembly clockwise until the connector is positioned at the bottom as shown in the illustration.
        GTY796671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

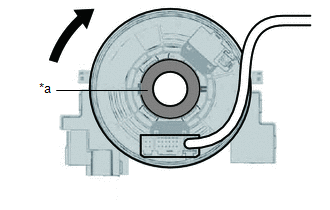

      3. While pushing on the interlock shown in the illustration, rotate the spiral cable sub-assembly clockwise approximately 2.5 times.
        NOTE:

        If the spiral cable sub-assembly is rotated clockwise 5 times or more from the point at which it stops and the connector is positioned at the bottom, the spiral cable sub-assembly may be damaged.

        HINT:

        If the interlock is engaged, the spiral cable sub-assembly will lock when the connector is near at the top or bottom of the rotation of the spiral cable sub-assembly.

        GTY807009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock
      4. Check that the spiral cable sub-assembly is centered.

        OK:

        • The connector is positioned at the top.
        • The alignment marks are aligned correctly.
        • The flat cable can be seen in the inspection window.
        NOTE:

        If the spiral cable sub-assembly cannot be centered, it may be damaged. Replace the spiral cable sub-assembly with a new one.

        GTY827480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Window
        *b Alignment Mark
        *c Flat Cable
  2. INSTALL SPIRAL CABLE SUB-ASSEMBLY
    1. Align the 2 pins and 2 guides, and engage the 6 claws to install the spiral cable sub-assembly to the steering sensor.
      GTY492551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      *b Pin
      *c Lock Pin
      NOTE:
      • Do not remove the lock pin before the spiral cable sub-assembly is installed to the steering sensor.
      • Do not damage the pins of the spiral cable sub-assembly and guides of the steering sensor.
      • The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the spiral cable sub-assembly to the steering sensor.
    2. Remove the lock pin from the steering sensor.
      GTY375894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the engine switch on (IG).
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the front wheels are aligned facing straight ahead.
    4. Engage the 3 claws to install the spiral cable with sensor sub-assembly.
    5. Connect each connector.
  4. INSTALL STEERING COLUMN COVER

    Refer to PROCEDURE - Step 11

  5. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  6. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

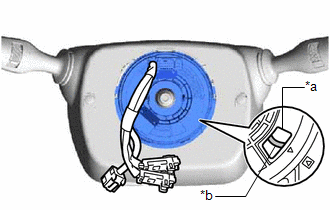

    3. Check if the spiral cable with sensor sub-assembly is centered.
      GTY832314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inspection Window
      *b Flat Cable

      OK:

      • The connector is positioned at the top.
      • The flat cable can be seen in the inspection window.
    4. If the spiral cable with sensor sub-assembly is not centered, center it.
      NOTE:

      Make sure to observe the following precautions, otherwise the spiral cable with sensor sub-assembly may be damaged.

      • Do not rotate the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
      • Release the interlock before rotating the spiral cable with sensor sub-assembly.
      • Do not rotate the spiral cable with sensor sub-assembly using the airbag wire harness.
      • Do not rotate the spiral cable with sensor sub-assembly with excessive force.

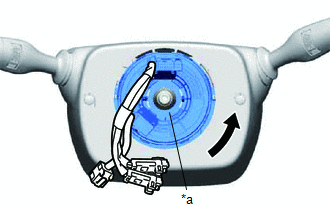

      1. While pushing on the interlock shown in the illustration, rotate the spiral cable with sensor sub-assembly counterclockwise slowly by hand until it stops.
        GTY817615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock
        NOTE:

        If the spiral cable with sensor sub-assembly is rotated clockwise in this step, it may be damaged and may no longer be able to be centered. Make sure to only rotate the spiral cable with sensor sub-assembly counterclockwise.

        HINT:

        If the interlock is engaged, the spiral cable with sensor sub-assembly will lock when the connector is near at the top or bottom of the rotation of the spiral cable with sensor sub-assembly.

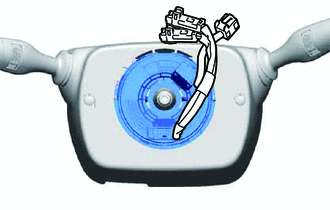

      2. If the connector is not positioned at the bottom of the rotation of the spiral cable with sensor sub-assembly when the spiral cable with sensor sub-assembly is turned until it stops, turn the spiral cable with sensor sub-assembly clockwise until the connector is positioned at the bottom as shown in the illustration.
        GTY796649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

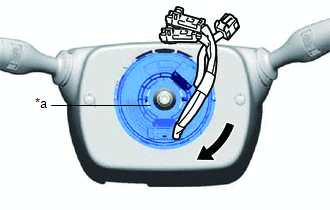

      3. While pushing on the interlock shown in the illustration, rotate the spiral cable with sensor sub-assembly clockwise approximately 2.5 times.
        GTY776914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Interlock
        NOTE:

        If the spiral cable with sensor sub-assembly is rotated clockwise 5 times or more from the point at which it stops and the connector is positioned at the bottom, the spiral cable with sensor sub-assembly may be damaged.

        HINT:

        If the interlock is engaged, the spiral cable with sensor sub-assembly will lock when the connector is near at the top or bottom of the rotation of the spiral cable with sensor sub-assembly.

      4. Check that the spiral cable with sensor sub-assembly is centered.

        OK:

        • The connector is positioned at the top.
        • The flat cable can be seen in the inspection window.
        GTY832314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Inspection Window
        *b Flat Cable
        NOTE:

        If the spiral cable with sensor sub-assembly cannot be centered, it may be damaged. Replace the spiral cable with sensor sub-assembly with a new one.

  7. INSTALL STEERING WHEEL ASSEMBLY

    Refer to PROCEDURE - Step 14

  8. ADJUST PARKING ASSIST SYSTEM

    Refer to CALIBRATION [11/2017 - ]
