System Diagram [10/2018 - ]

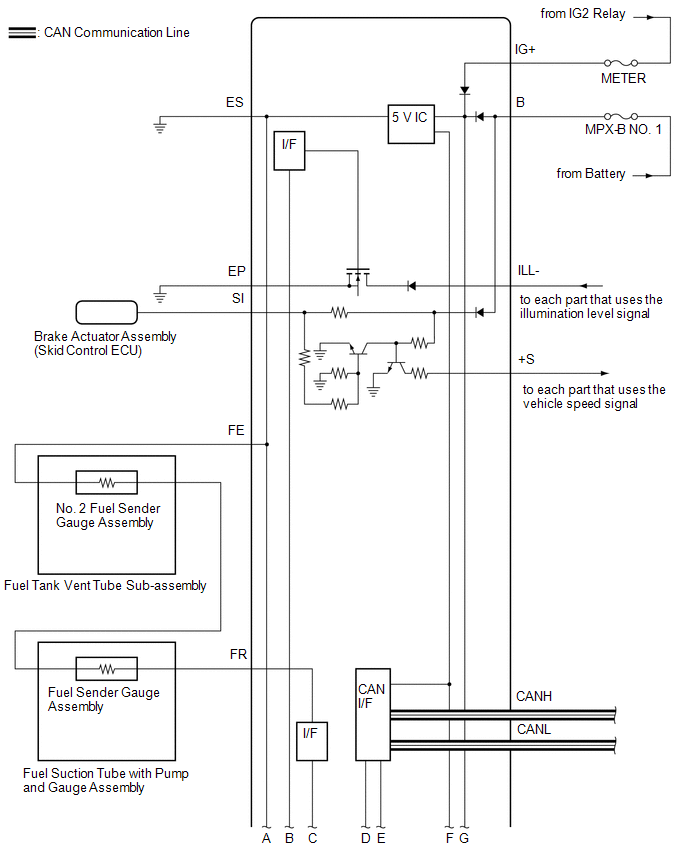

GTY834410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

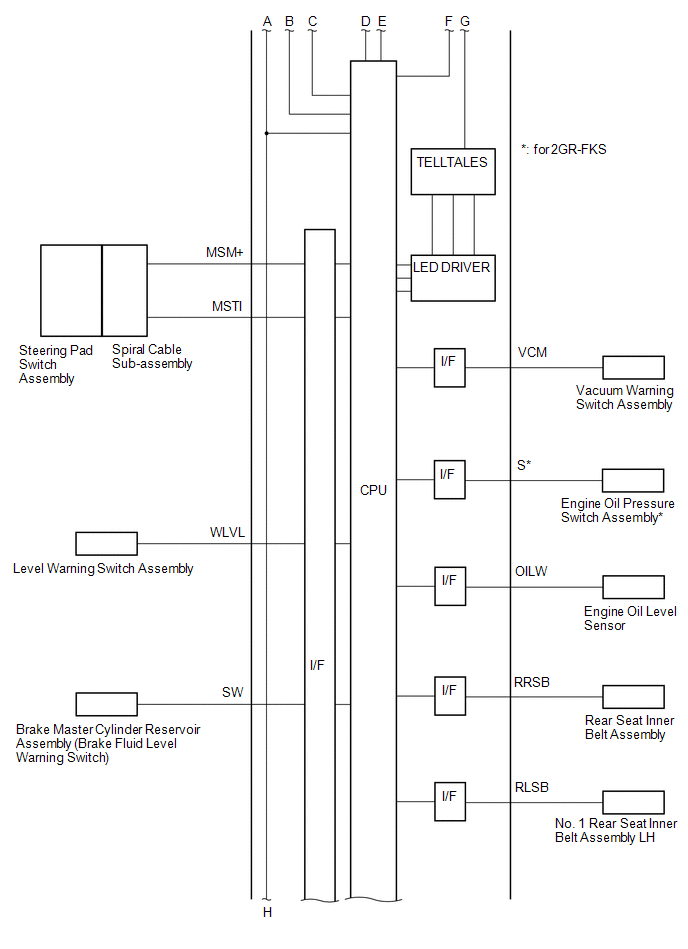

GTY809220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

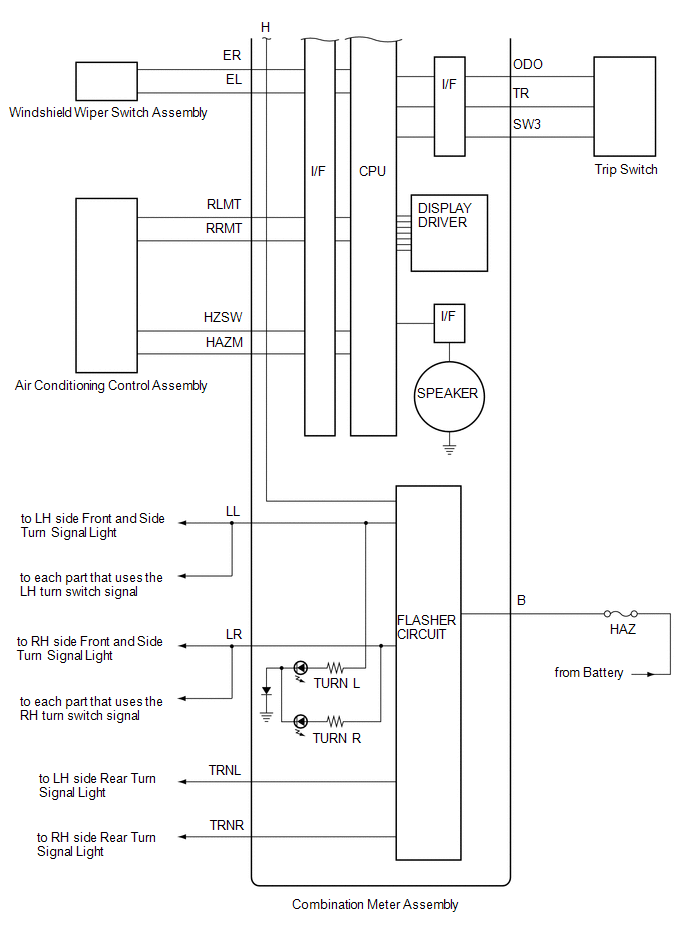

GTY801360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Local Bus Communication Line
    GTY801722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
