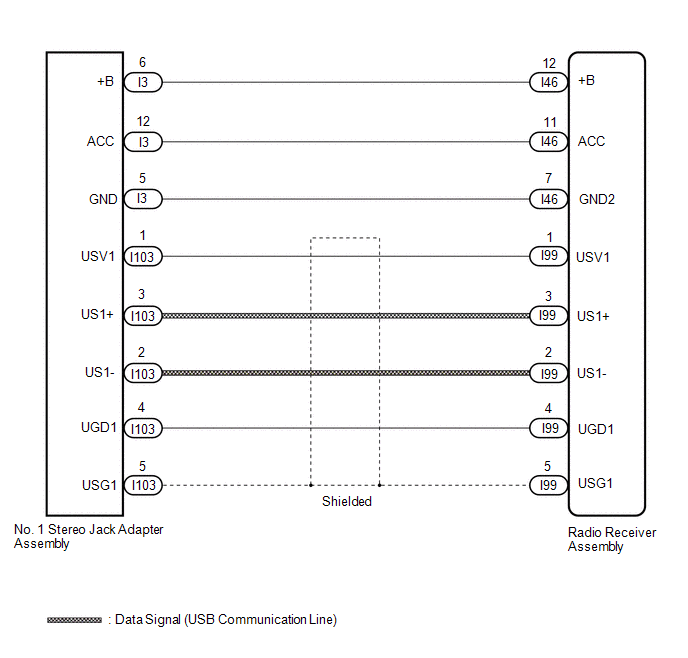

USB Audio System Recognition/Play Error [10/2014 - 09/2016]: Wiring Diagram

GTY513567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
