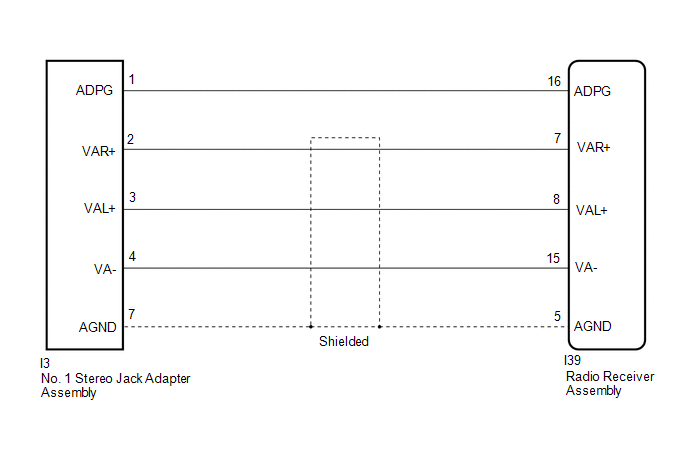

Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter [10/2014 - 09/2017]: Wiring Diagram

GTY519097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
