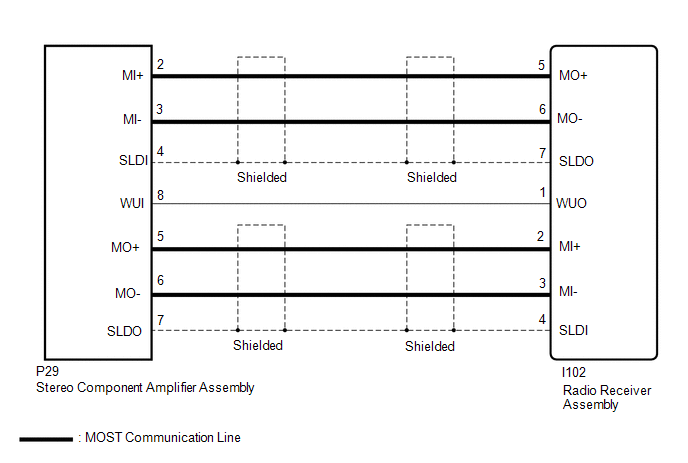

Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier [10/2014 - 09/2017]: Wiring Diagram

GTY498716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
