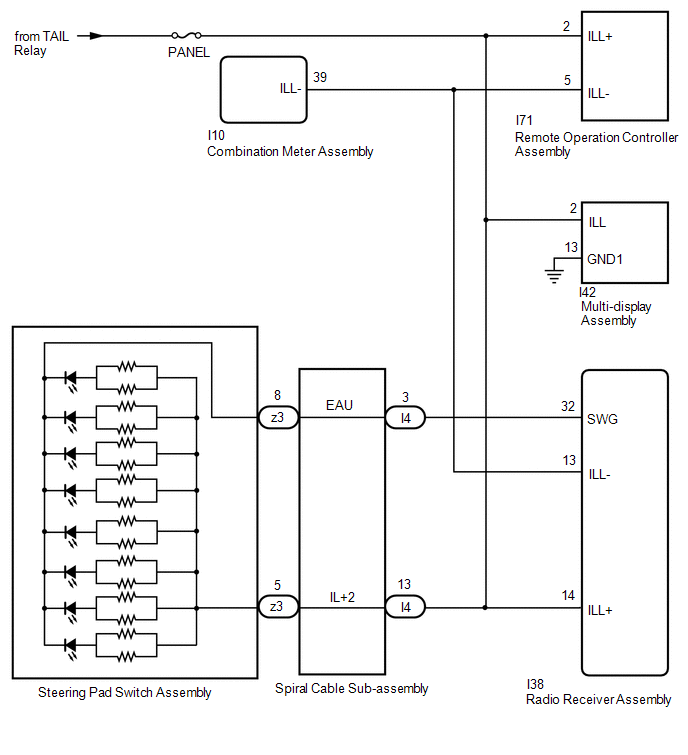

Illumination Circuit [10/2014 - 09/2016]: Wiring Diagram

GTY959159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
