Components [10/2014 - ]

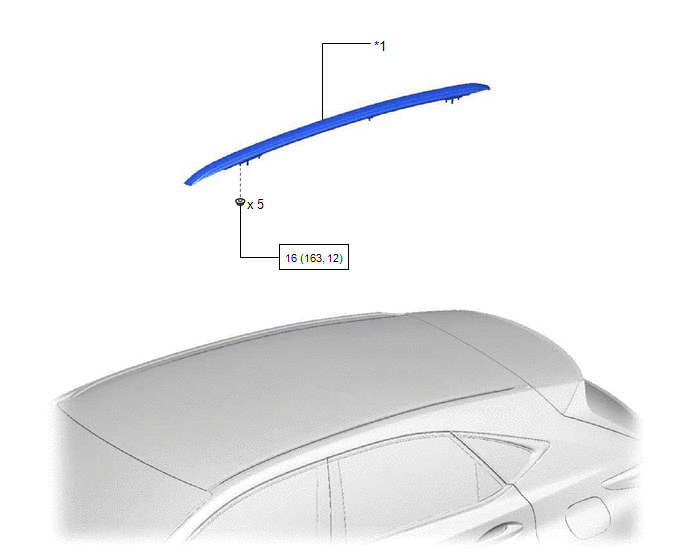

Fig 1: Roof Rack Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ROOF RACK ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

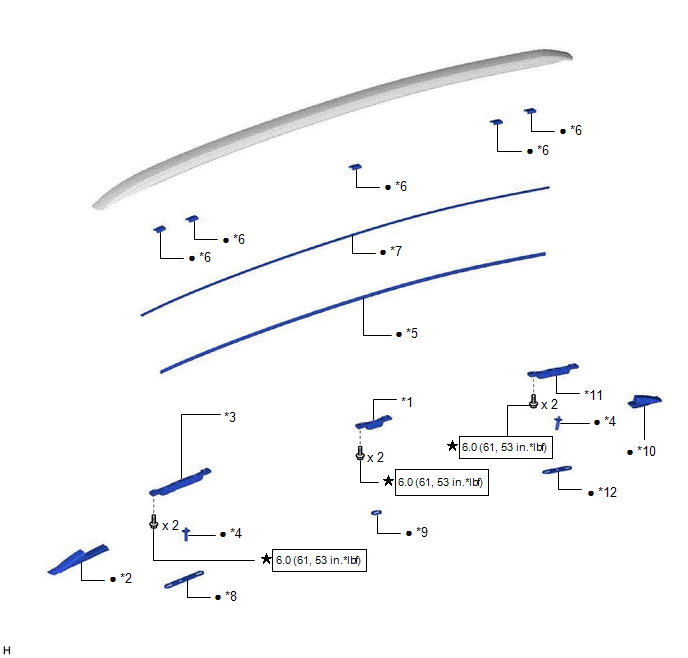

Fig 2: Roof Rack Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	CENTER ROOF RACK SUPPORT LH	*2	FRONT ROOF RACK LEG CUSHION LH
*3	FRONT ROOF RACK LEG LH	*4	FRONT ROOF RACK RETAINER LH
*5	NO. 1 ROOF CARRIER PROTECTOR	*6	NO. 1 ROOF CARRIER SEAL
*7	NO. 2 ROOF CARRIER PROTECTOR	*8	NO. 2 ROOF CARRIER SEAL
*9	NO. 3 ROOF CARRIER SEAL LH	*10	REAR ROOF RACK LEG CUSHION LH
*11	REAR ROOF RACK LEG LH	*12	ROOF CARRIER SEAL
	Nm (kgfcm, ft.*lbf): Specified torque	*	Precoated part
•	Non-reusable part	-	-
