Installation [09/2017 - ]: Procedure

  1. INSTALL CLOCK ASSEMBLY
    1. Attach the 2 claws to install the clock assembly.
      GTY960872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connectors.

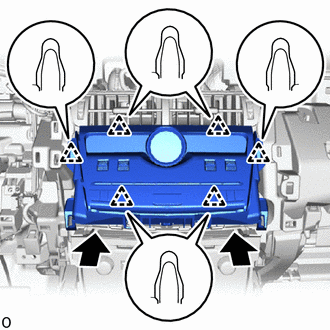

      GTY798428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 6 clips to install the air conditioning control assembly.
  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]

  4. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 3 [05/2019 - ]

  5. INSTALL INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 16 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 16 [05/2019 - ]

  6. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  7. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 18 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - ]

  8. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 19 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 19 [05/2019 - ]

  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 20 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 20 [05/2019 - ]

  10. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 21 [05/2019 - ]

  11. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 22 [05/2019 - ]

  12. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 23 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 23 [05/2019 - ]

  13. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 24 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 24 [05/2019 - ]

  14. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 25 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 25 [05/2019 - ]

  15. INSTALL UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 26 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]

  16. INSTALL CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 27 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 27 [05/2019 - ]
