Removal [10/2017 - 10/2020]: Procedure
- AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)
Refer to PRECAUTION [10/2017 - ]
- REMOVE REAR WHEEL
Refer to REMOVAL [10/2017 - 10/2023]
- REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
- Remove the nut.
- Install 2 SST (spacer A) onto the rear No. 1 suspension arm assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
- SST: 09960-20010
- 09961-02050

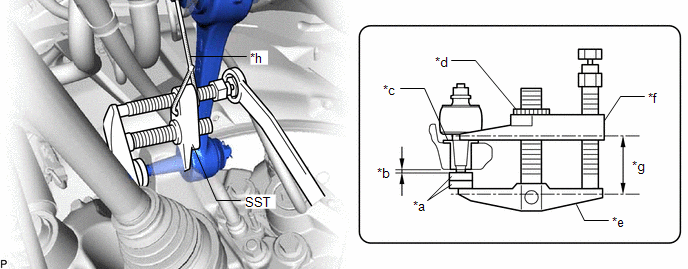

*a SST (Spacer A) *b 1 mm (0.0394 in.) *c Spacer *d Center Nut *e Body *f Claw *g Parallel *h String NOTE:- Make sure to install the spacers (SST spacer A) as the rear axle carrier sub-assembly LH spacer may shift.
- As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
- SST: 09960-20010
- Using SST, disconnect the rear No. 1 suspension arm assembly LH from the rear axle carrier sub-assembly LH.
- SST: 09960-20010
- 09961-02010
NOTE:- Apply molybdenum grease to the bolt threads and end of the SST bolt.
- Do not damage the dust cover.
- As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
- Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
- SST: 09960-20010
- Remove the nut, washer, bolt and rear No. 1 suspension arm assembly LH from the rear suspension member sub-assembly.
Bolt Nut
- Remove the nut.
- REMOVE REAR SHOCK ABSORBER WITH COIL SPRING LH (w/o Air Suspension)
Refer to REMOVAL [10/2017 - 10/2020]
- REMOVE REAR PNEUMATIC CYLINDER WITH SHOCK ABSORBER ASSEMBLY LH (w/ Air Suspension)
Refer to REMOVAL [10/2017 - 10/2020]
- REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
- Remove the nut.
- Install 2 SST (spacer A) onto the rear upper control arm assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
- SST: 09960-20010
- 09961-02050

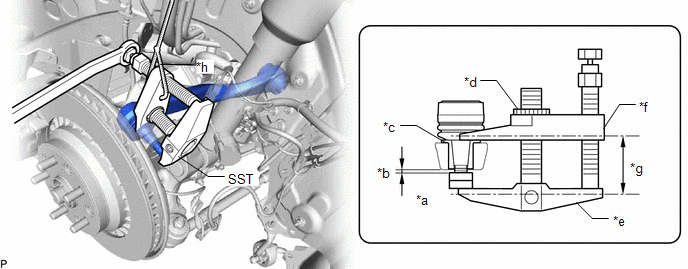

*a SST (Spacer A) *b 1 mm (0.0394 in.) *c Spacer *d Center Nut *e Body *f Claw *g Parallel *h String NOTE:- Make sure to install the spacers (SST spacer A) as the rear axle carrier sub-assembly LH spacer may shift.
- As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
- SST: 09960-20010
- Using SST, disconnect the rear upper control arm assembly LH from the rear axle carrier sub-assembly LH.
- SST: 09960-20010
- 09961-02010
NOTE:- Apply molybdenum grease to the bolt threads and end of the SST bolt.
- Do not damage the dust cover.
- As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
- Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
- SST: 09960-20010
- Remove the nut, washer, bolt and rear upper control arm assembly LH.
Bolt Nut NOTE:Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
- Remove the nut.
