Components [10/2017 - ]

Fig 1: Rear Pneumatic Cylinder Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 CENTER SPEAKER GRILLE SUB-ASSEMEBLY	*2	PACKAGE TRAY TRIM GARNISH LH
*3	PACKAGE TRAY TRIM GARNISH RH	*4	PACKAGE TRAY TRIM SIDE COVER LH

Fig 2: Rear Pneumatic Cylinder Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR WHEEL HOUSE LINER LH	*2	ROCKER PANEL MOULDING PROTECTOR LH
*3	GROMMET	-	-
•	Non-reusable part	-	-

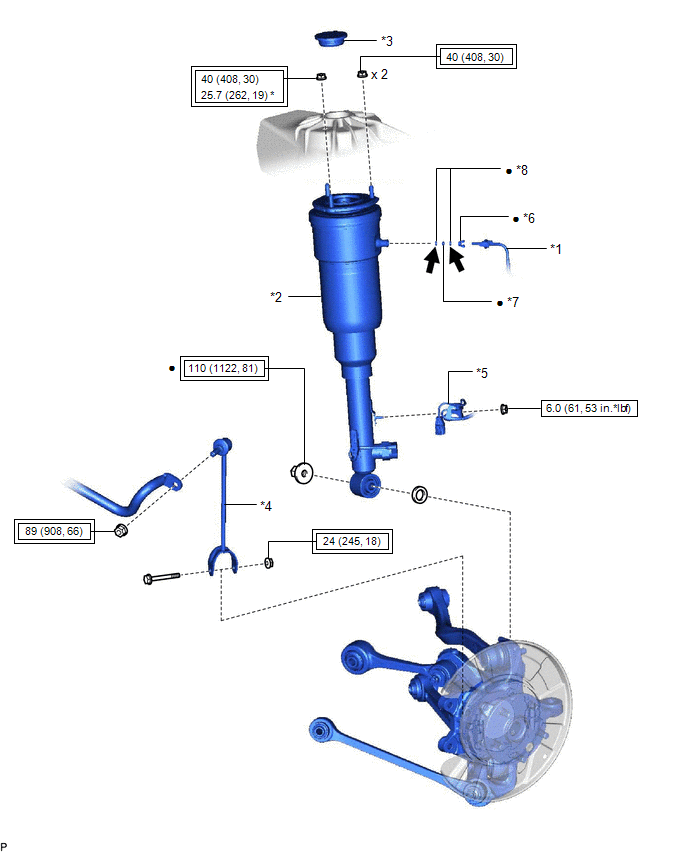

Fig 3: Rear Pneumatic Cylinder Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	NO. 7 HEIGHT CONTROL TUBE	*2	REAR PNEUMATIC CYLINDER WITH SHOCK ABSORBER ASSEMBLY LH
*3	REAR SHOCK ABSORBER CAP LH	*4	REAR STABILIZER LINK ASSEMBLY LH
*5	SKID CONTROL SENSOR WIRE LH	*6	NO. 2 CONNECTOR
*7	PLATE	*8	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		MP grease
