On-Vehicle Inspection [10/2017 - ]: Procedure

  1. INSPECT LOWER CONTROL ARM ASSEMBLY LH
    1. Check for looseness.
      1. Lift up the vehicle.

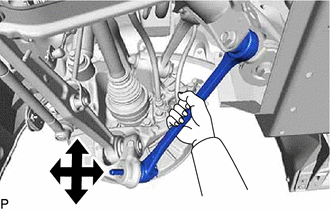

      2. Move the lower control arm assembly LH up and down then left and right by hand to check that there is no looseness at the lower control arm assembly LH.
        GTY805626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
