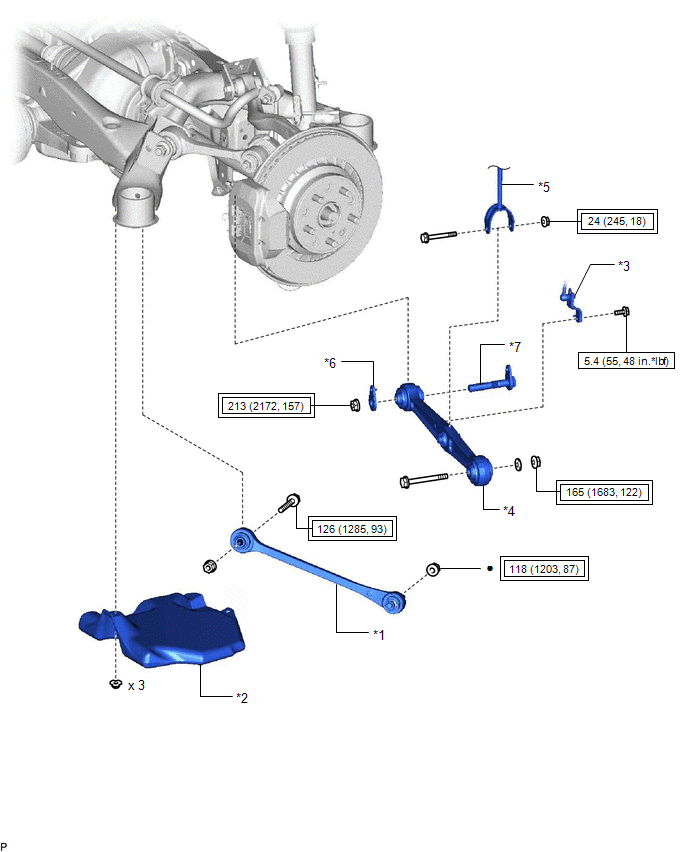

Components [10/2017 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LOWER CONTROL ARM ASSEMBLY LH | *2 | NO. 2 DIFFERENTIAL SUPPORT PROTECTOR |
| *3 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH | *4 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
| *5 | REAR STABILIZER LINK ASSEMBLY LH | *6 | REAR NO. 2 SUSPENSION TOE ADJUST PLATE |
| *7 | REAR SUSPENSION ARM ATTACHMENT SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
