Components [10/2017 - 10/2020]

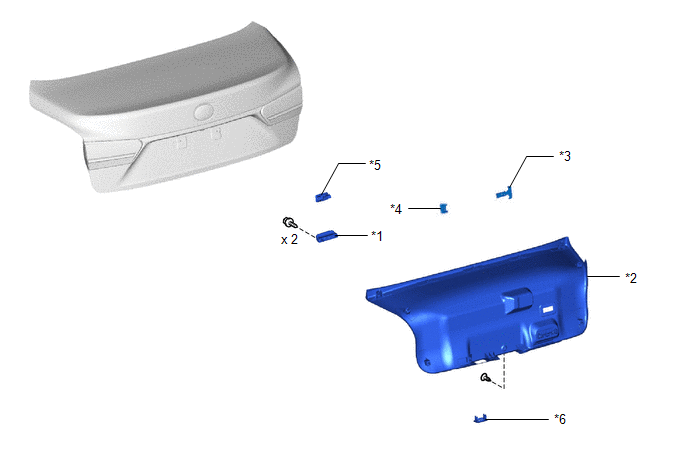

Fig 1: Luggage Door Hinge Torsion Bar Replacement Components [10/2017 - 10/2020] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE COMPARTMENT DOOR ASSIST GRIP	*2	LUGGAGE COMPARTMENT DOOR COVER
*3	LUGGAGE COMPARTMENT DOOR INSIDE HANDLE	*4	LUGGAGE LOCK CONTROL CABLE PLATE
*5	NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	*6	SWITCH BEZEL

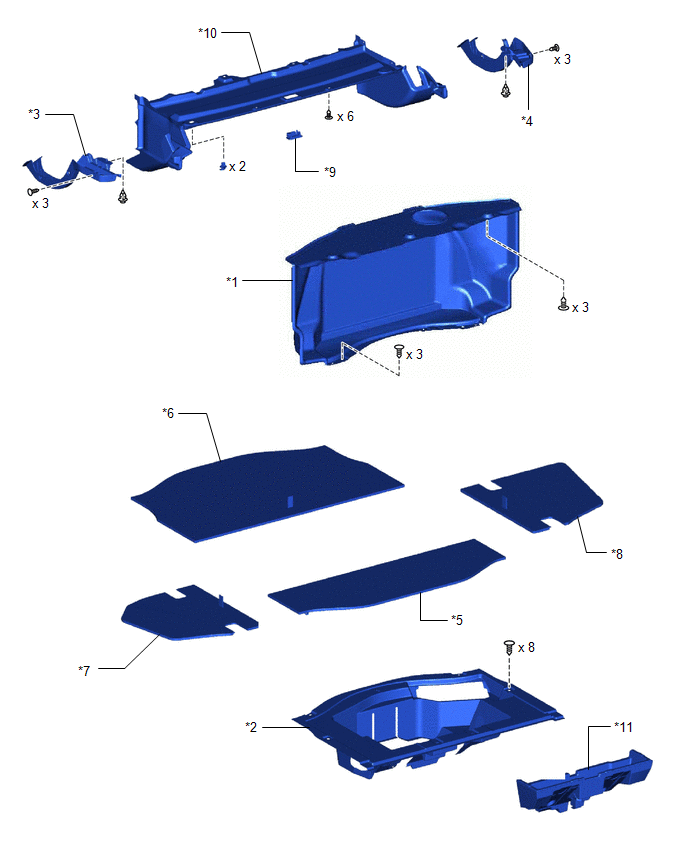

Fig 2: Luggage Door Hinge Torsion Bar Replacement Components [10/2017 - 10/2020] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT LUGGAGE COMPARTMENT TRIM COVER	*2	INNER LOWER LUGGAGE COMPARTMENT TRIM COVER
*3	LUGGAGE COMPARTMENT DOOR HINGE COVER LH	*4	LUGGAGE COMPARTMENT DOOR HINGE COVER RH
*5	LUGGAGE COMPARTMENT FLOOR MAT	*6	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
*7	LUGGAGE COMPARTMENT TRIM COVER LH	*8	LUGGAGE COMPARTMENT TRIM COVER RH
*9	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	*10	REAR LUGGAGE COMPARTMENT TRIM COVER
*11	TOOL BOX	-	-

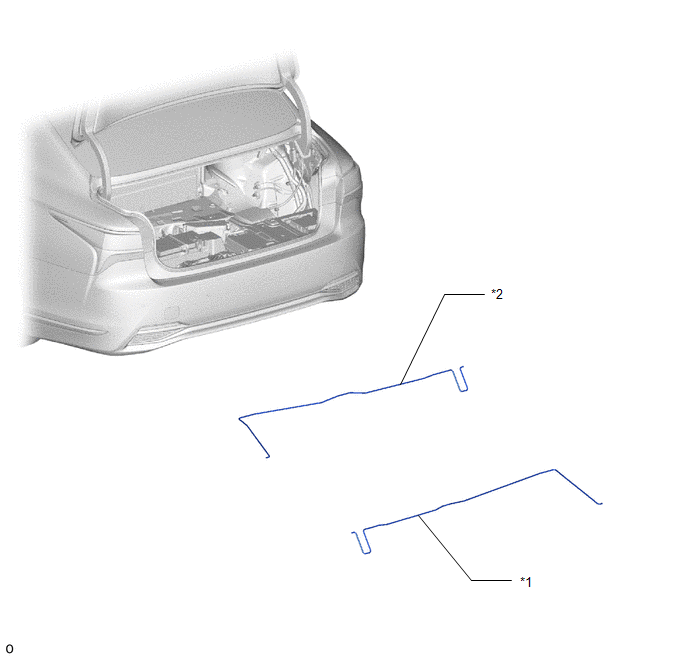

Fig 3: Luggage Door Hinge Torsion Bar Replacement Components [10/2017 - 10/2020] (3 Of 3)

Callout	Description	Callout	Description
*1	LUGGAGE DOOR HINGE TORSION BAR LH	*2	LUGGAGE DOOR HINGE TORSION BAR RH
