Components [10/2017 - 10/2020]

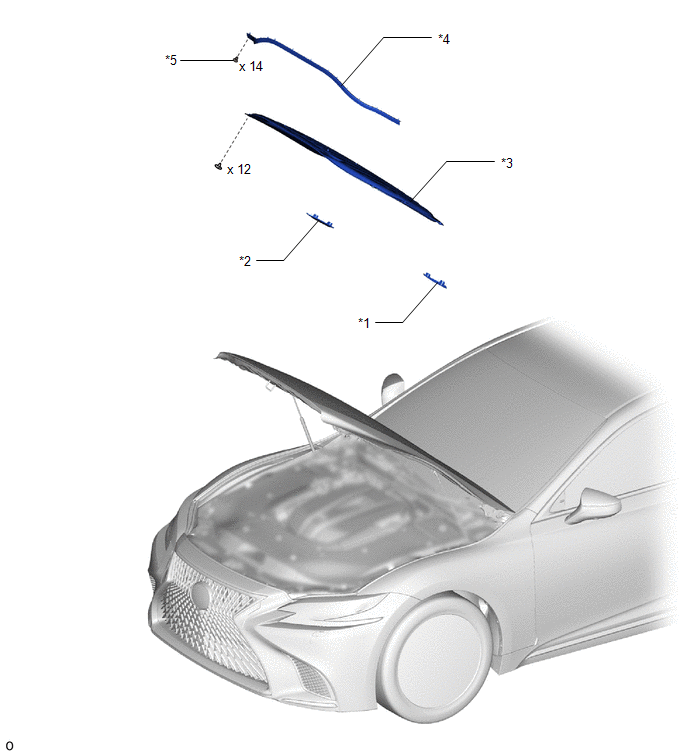

Fig 1: Hood Replacement Components [10/2017 - 10/2020]
GTY823820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HOOD HINGE COVER LH *2 HOOD HINGE COVER RH
*3 HOOD INSULATOR *4 HOOD TO RADIATOR SUPPORT SEAL
*5 HOOD TO COWL TOP SEAL CLIP - -
