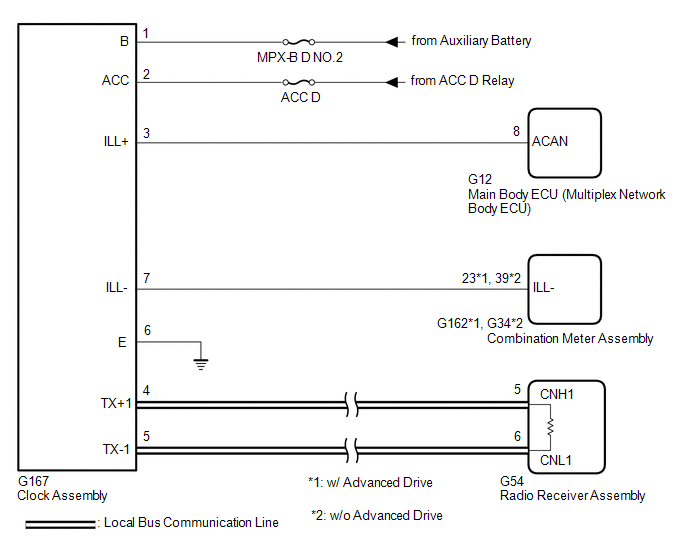

Home >> Lexus >> 2018 >> LS 500h RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Clock System - Diagnostics & Symptom Tests >> Clock System >> System Diagram [10/2020 - 10/2022] >> System Diagram [10/2020 - 10/2022]
