Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500h, 2023 Lexus LS 500h, and 2022 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT LIDAR CLEANER NOZZLE

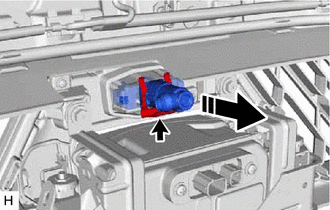

    1. Install the front LiDAR cleaner nozzle with the clamp.
      GTY1085848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

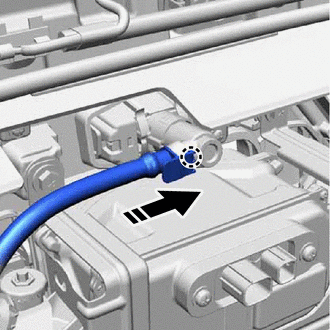

    2. Attach the claw and connect the washer hose to the front LiDAR cleaner nozzle.
      GTY1086070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect in this Direction
  2. INSTALL FRONT LIDAR CLEANER COVER

    See step  1

  3. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [11/2021 - 10/2023] , or refer to INSTALLATION [10/2023 - ]
