Removal [10/2020 - 11/2021]: Procedure

  1. REMOVE FRONT DOOR TRIM UPPER COVER LH

    Refer to PROCEDURE - Step 4

  2. REMOVE FRONT DOOR ARMREST COVER LH

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT DOOR NO. 2 ARMREST COVER LH

    Refer to PROCEDURE - Step 6

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  5. REMOVE OUTER MIRROR INSTALL HOLE COVER LH
    1. GTY783069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the clamp.

    2. Remove the 2 screws.
    3. Detach the claw and remove the outer mirror install hole cover LH.
  6. REMOVE FRONT MULTIPLEX NETWORK DOOR ECU LH

    Refer to PROCEDURE - Step 25

  7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

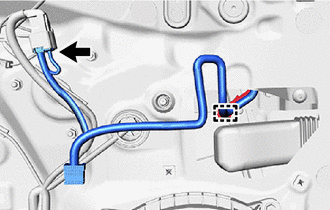

    1. Detach the clamp.
      GTY801016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the 2 hole plugs.
      GTY807298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 nuts.
      GTY807297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Hold the outer rear view mirror assembly LH with one hand so that it does not drop.

    5. Detach the claw and remove the outer rear view mirror assembly LH.
