Components [10/2017 - ]

Fig 1: Rear Door Window Frame Moulding Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

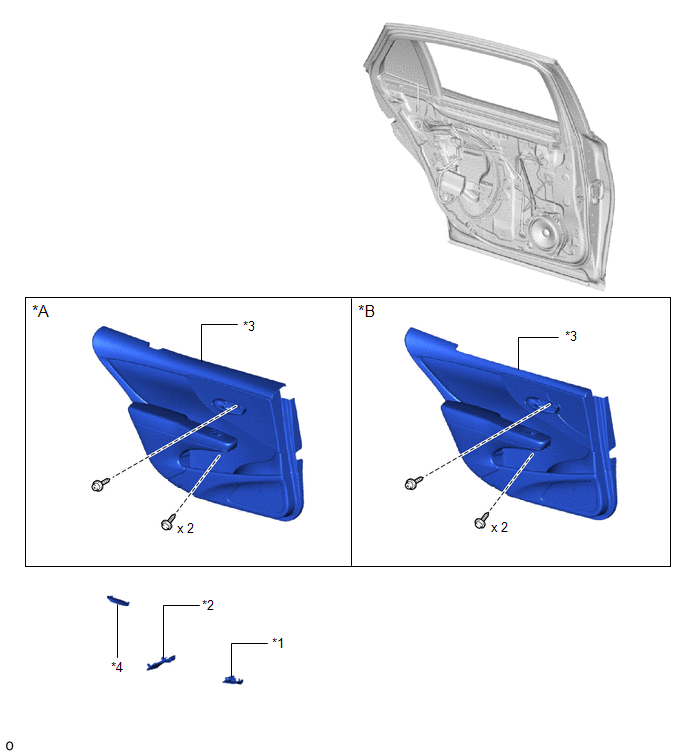

Fig 2: Rear Door Window Frame Moulding Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Rear Door Sunshade	*B	w/ Rear Door Sunshade
*1	REAR DOOR ARMREST COVER LH	*2	REAR DOOR NO. 2 ARMREST COVER LH
*3	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	*4	REAR DOOR TRIM UPPER COVER LH

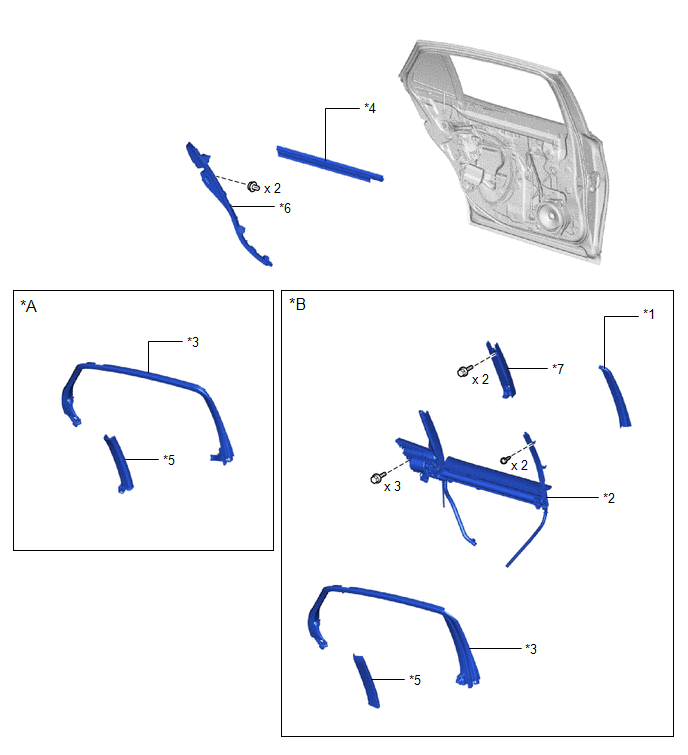

Fig 3: Rear Door Window Frame Moulding Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Rear Door Sunshade	*B	w/ Rear Door Sunshade
*1	CURTAIN RAIL SIDE COVER LH	*2	REAR CURTAIN SUB-ASSEMBLY LH
*3	REAR DOOR FRAME GARNISH LH	*4	REAR DOOR GLASS INNER WEATHERSTRIP LH
*5	REAR DOOR NO. 2 FRAME GARNISH LH	*6	REAR DOOR TRIM COVER LH
*7	REAR SIDE WINDOW COVER LH	-	-

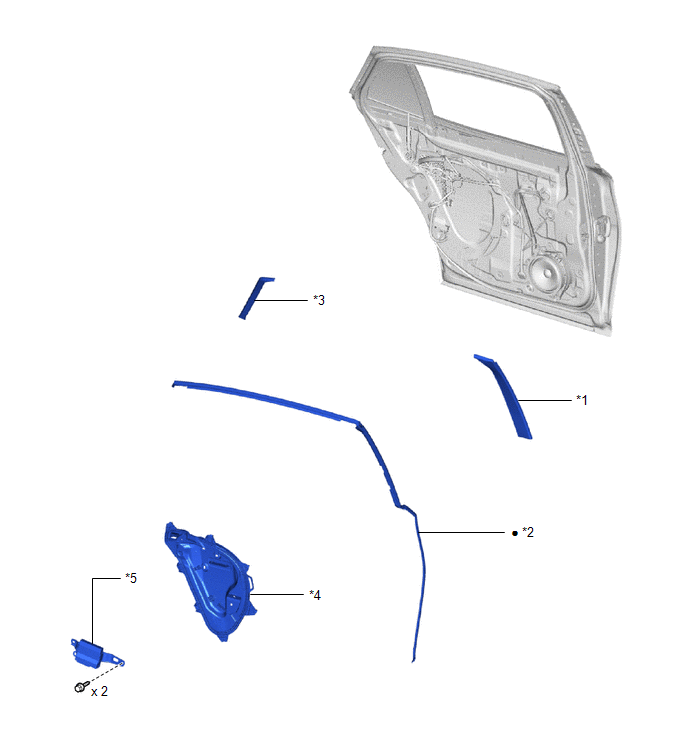

Fig 4: Rear Door Window Frame Moulding Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR FRONT BELT MOULDING END COVER LH	*2	REAR DOOR NO. 2 WEATHERSTRIP LH
*3	REAR DOOR REAR BELT MOULDING END COVER LH	*4	REAR DOOR SERVICE HOLE COVER LH
*5	REAR MULTIPLEX NETWORK DOOR ECU LH	-	-
•	Non-reusable part	-	-

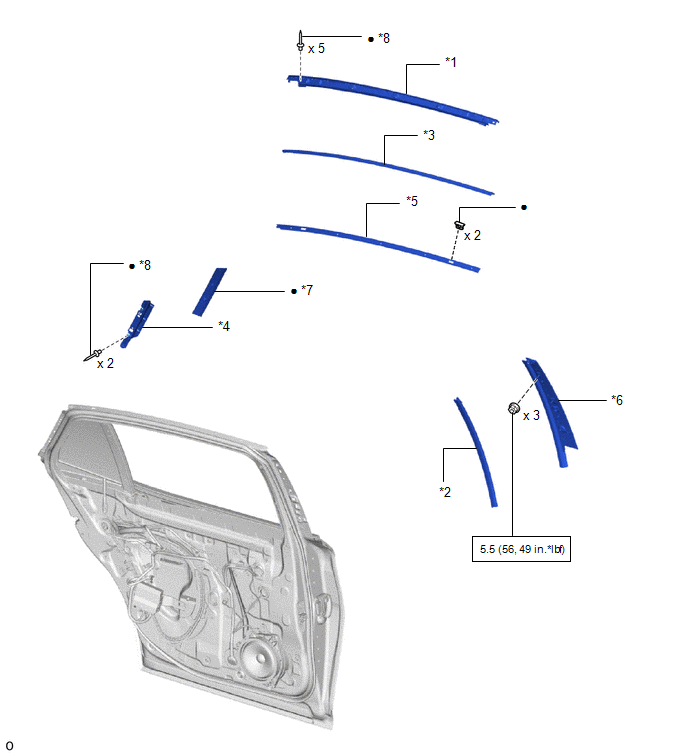

Fig 5: Rear Door Window Frame Moulding Replacement Components With Torque Specifications (5 Of 6)

Callout	Description	Callout	Description
*1	REAR DOOR BELT MOULDING SUB-ASSEMBLY LH	*2	REAR DOOR FRONT GLASS RUN LH
*3	REAR DOOR NO. 3 GLASS RUN LH	*4	REAR DOOR OUTSIDE MOULDING INSERT LH
*5	REAR DOOR UPPER WINDOW FRAME MOULDING LH	*6	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
*7	REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)	*8	RIVET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

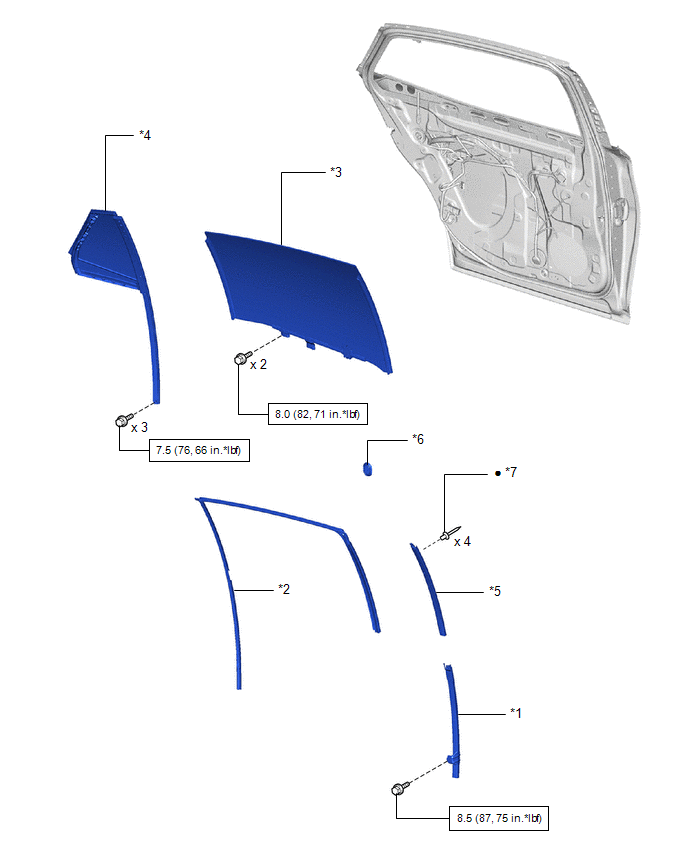

Fig 6: Rear Door Window Frame Moulding Replacement Components (6 Of 6)

Callout	Description	Callout	Description
*1	REAR DOOR FRONT WINDOW GUIDE SUB-ASSEMBLY LH	*2	REAR DOOR GLASS RUN LH
*3	REAR DOOR GLASS SUB-ASSEMBLY LH	*4	REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY LH
*5	REAR DOOR REAR WINDOW FRAME LH	*6	PLUG HOLE
*7	RIVET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
