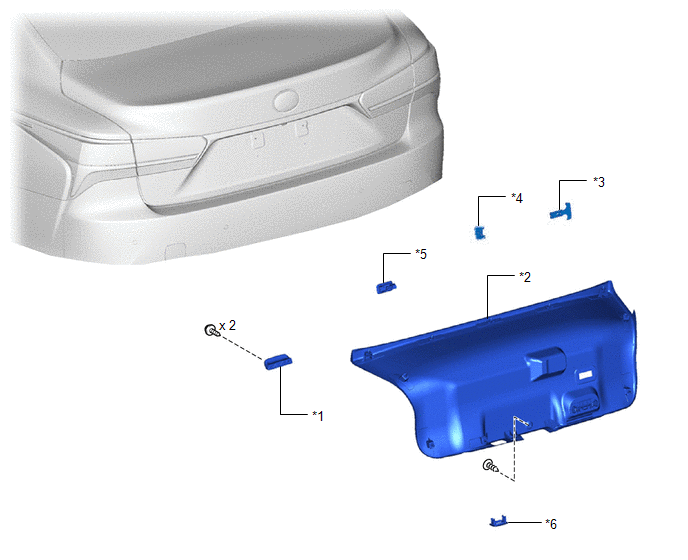

Components [10/2017 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT DOOR ASSIST GRIP | *2 | LUGGAGE COMPARTMENT DOOR COVER |
| *3 | LUGGAGE COMPARTMENT DOOR INSIDE HANDLE | *4 | LUGGAGE LOCK CONTROL CABLE PLATE |
| *5 | NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *6 | SWITCH BEZEL |

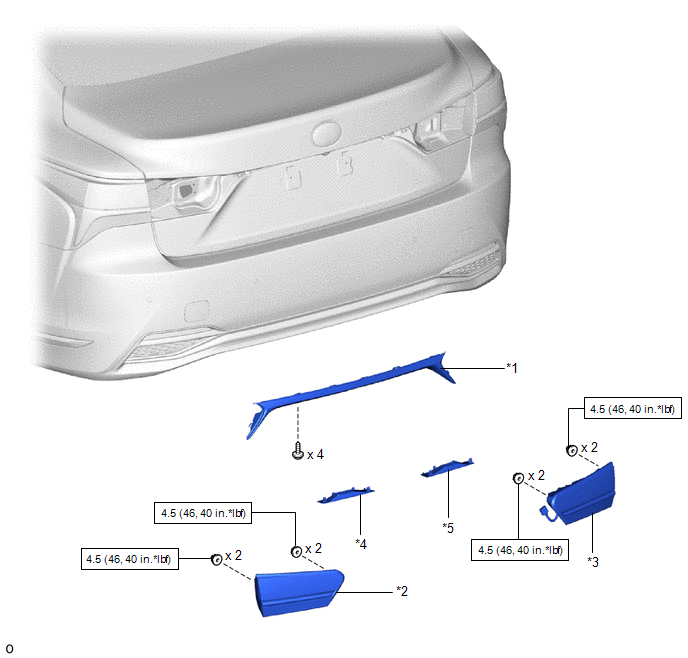

Fig 2: Luggage Compartment Door Outside Garnish Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY | *2 | REAR LIGHT ASSEMBLY LH |
| *3 | REAR LIGHT ASSEMBLY RH | *4 | UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH LH |
| *5 | UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH RH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR | *2 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR LH |
| *3 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR RH | - | - |
| • | Non-reusable part | - | - |
