Components [10/2020 - 11/2021]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Hands Free Power Trunk Lid | - | - |
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|

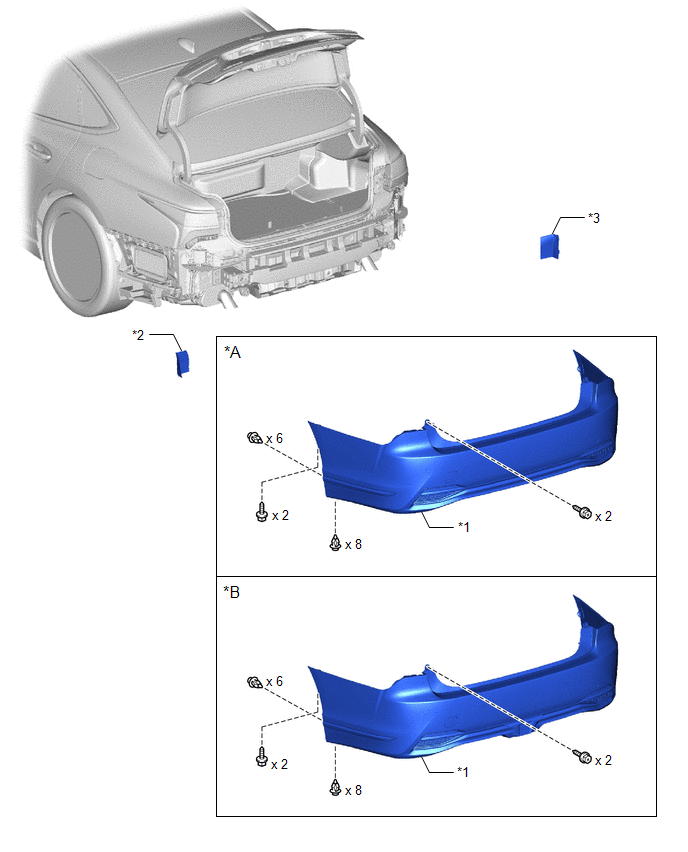

| *A | w/o Advanced Drive | *B | w/ Advanced Drive |
| *1 | REAR BUMPER ASSEMBLY | *2 | REAR COMBINATION LIGHT COVER LH |
| *3 | REAR COMBINATION LIGHT COVER RH | - | - |

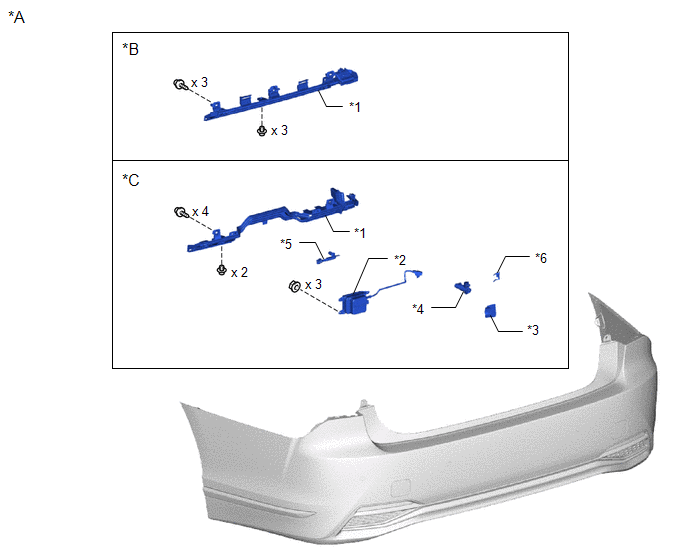

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Hands Free Power Trunk Lid | *B | w/o Advanced Drive |
| *C | w/ Advanced Drive | - | - |
| *1 | KICK DOOR CONTROL BRACKET | *2 | REAR LiDAR ADVANCED DRIVE SENSOR ASSEMBLY |
| *3 | REAR LiDAR CLEANER COVER | *4 | REAR LiDAR CLEANER NOZZLE |
| *5 | REAR NO. 6 LiDAR CLEANER HOSE | *6 | CLAMP |
| • | Non-reusable part | - | - |

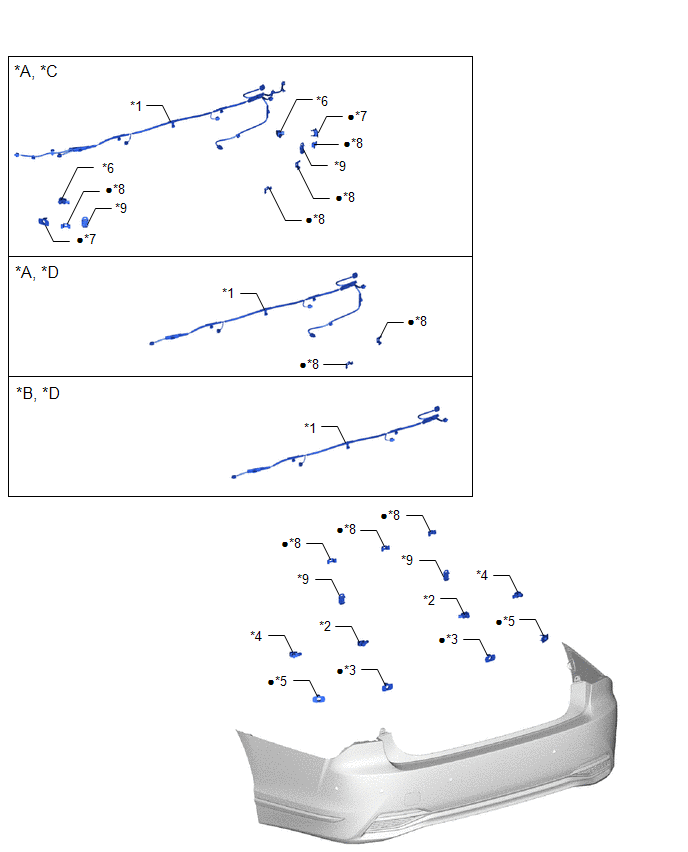

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Hands Free Power Trunk Lid | *B | w/o Hands Free Power Trunk Lid |
| *C | w/ Advanced Park | *D | w/o Advanced Park |
| *1 | NO. 3 LUGGAGE ROOM WIRE | *2 | REAR CENTER ULTRASONIC SENSOR |
| *3 | REAR CENTER ULTRASONIC SENSOR RETAINER | *4 | REAR CORNER ULTRASONIC SENSOR |
| *5 | REAR CORNER ULTRASONIC SENSOR RETAINER | *6 | REAR SIDE ULTRASONIC SENSOR |
| *7 | REAR SIDE ULTRASONIC SENSOR RETAINER | *8 | REAR ULTRASONIC SENSOR CLIP |
| *9 | ULTRASONIC SENSOR CLIP | - | - |
| • | Non-reusable part | - | - |

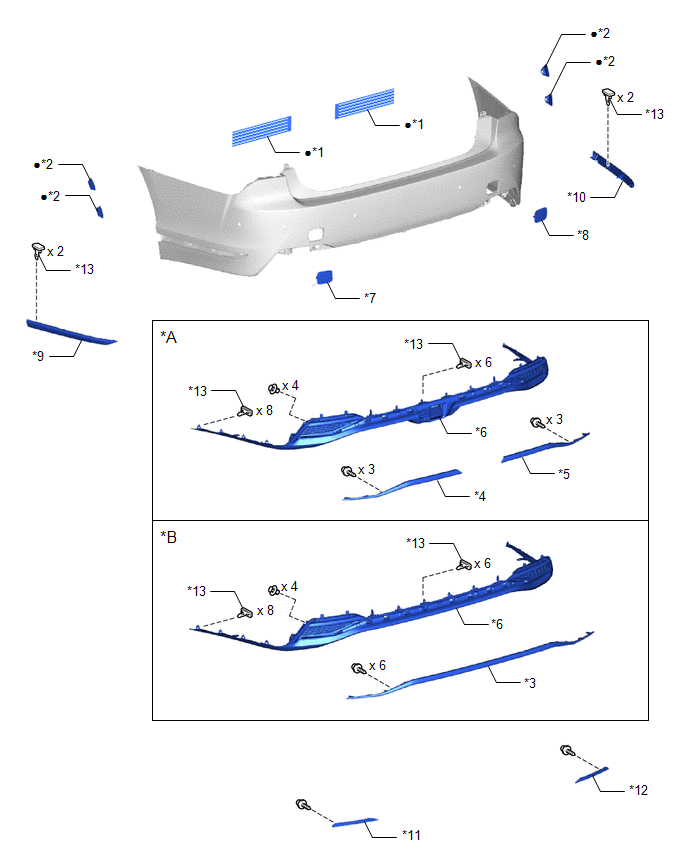

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Advanced Drive | *B | w/o Advanced Drive |
| *1 | NO. 1 MOULDING TAPE | *2 | REAR BUMPER ARM |
| *3 | REAR BUMPER CENTER MOULDING | *4 | REAR BUMPER EXTENSION MOULDING LH |
| *5 | REAR BUMPER EXTENSION MOULDING RH | *6 | REAR BUMPER LOWER COVER |
| *7 | REAR BUMPER PIECE LH | *8 | REAR BUMPER PIECE RH |
| *9 | REAR BUMPER SIDE MOULDING LH | *10 | REAR BUMPER SIDE MOULDING RH |
| *11 | REFLEX REFLECTOR ASSEMBLY LH | *12 | REFLEX REFLECTOR ASSEMBLY RH |
| *13 | OUTSIDE MOULDING RETAINER | - | - |
| • | Non-reusable part | - | - |

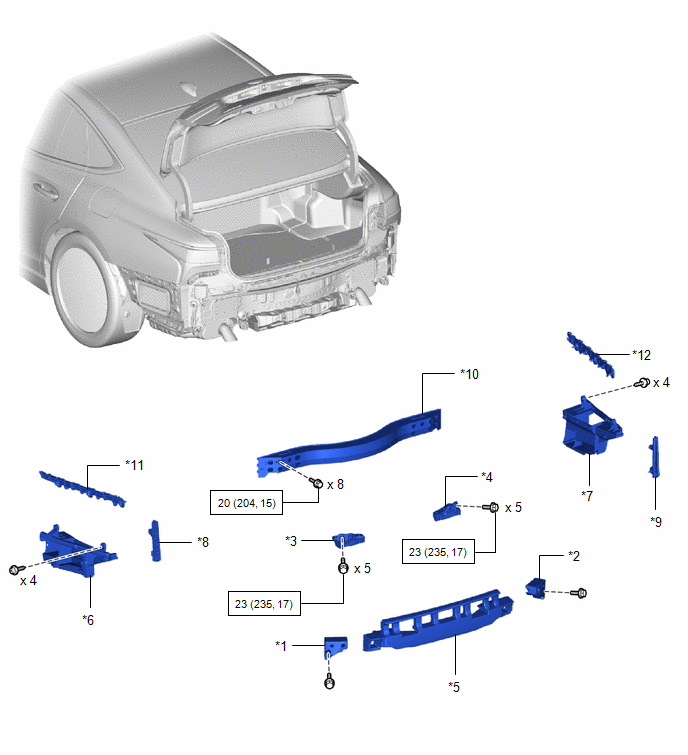

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR BUMPER ARM REINFORCEMENT LH | *2 | REAR BUMPER ARM REINFORCEMENT RH |
| *3 | REAR BUMPER BAR CORNER REINFORCEMENT LH | *4 | REAR BUMPER BAR CORNER REINFORCEMENT RH |
| *5 | REAR BUMPER ENERGY ABSORBER | *6 | REAR BUMPER LOWER RETAINER LH |
| *7 | REAR BUMPER LOWER RETAINER RH | *8 | REAR BUMPER LOWER SIDE RETAINER LH |
| *9 | REAR BUMPER LOWER SIDE RETAINER RH | *10 | REAR BUMPER REINFORCEMENT SUB-ASSEMBLY |
| *11 | REAR BUMPER SIDE SUPPORT LH | *12 | REAR BUMPER SIDE SUPPORT RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
