Installation [12/2017 - 11/2021]: Procedure

  1. ADJUST COMPRESSOR OIL
    1. When replacing the compressor assembly with pulley with a new one, gradually discharge the inert gas (helium) from the service valve, and drain the following amount of oil before installation.
      NOTE:
      • If a new compressor assembly with pulley is installed without removing the same amount of compressor oil as is remaining in the pipes, the amount of compressor oil will be excessive. This prevents heat exchange in the refrigerant cycle and will cause the air conditioning system to malfunction.
      • A certain amount of compressor oil remains in the compressor assembly with pulley during circulation and the compressor may be damaged if the amount of compressor oil is more/less than this amount. Therefore, make sure to adjust the amount of compressor oil correctly.
      • If the amount of compressor oil remaining in the removed compressor assembly with pulley is excessively low, check for compressor oil leaks.
      • Make sure to use ND-OIL 12 or equivalent compressor oil.
    2. Remove the drain bolt (seal washer) from the removed compressor assembly with pulley.
      GTY501445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Drain the compressor oil from the oil port of the removed compressor assembly with pulley as shown in the illustration.
      NOTE:

      Make sure to drain the compressor oil from the oil port.

      GTY806896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Oil Port *b Turn Clockwise
    4. Remove the drain bolt (seal washer) from the new compressor assembly with pulley.
      GTY501445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The drain bolt (seal washer) can be reused.

    5. Drain the following amount of compressor oil from the oil port of the new compressor assembly with pulley as shown in the illustration.

      Standard

      (The amount of oil in a new compressor assembly with pulley: 100 to 115 cc (3.38 to 3.89 fl.oz)) - (The amount of oil in the removed compressor assembly with pulley) = The amount of oil to be removed from the new compressor assembly with pulley.

      NOTE:
      • Make sure to drain the compressor oil from the oil port.
      • Make sure to add the compressor oil from the oil port, not from the discharge or intake port.
      • If a tool is used to add compressor oil to the new compressor assembly with pulley, make sure that it is free of foreign matter.
      • If the amount of compressor oil remaining in the removed compressor assembly with pulley cannot be estimated because the compressor was damaged and oil was discharged due to a frontal collision, etc., install the new compressor assembly with pulley without removing any oil. If the cooler condenser assembly is also replaced, do not add the specified amount of compressor oil for cooler condenser assembly replacement (40 cc (1.35 fl.oz)).
      GTY806896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Oil Port *b Turn Clockwise
    6. Install the drain bolt (seal washer) to the new compressor assembly with pulley.

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      NOTE:

      Make sure that there is no damage or foreign matter on the seal washer edge.

  2. INSTALL COMPRESSOR ASSEMBLY WITH PULLEY
    1. Using an E8 "TORX" socket wrench, install the 2 stud bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY827346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the compressor assembly with pulley with the 2 nuts and 2 bolts.

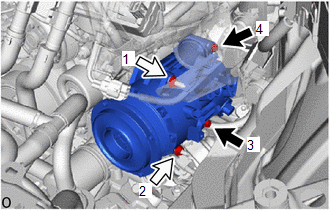

      Fig 1: Compressor Assembly With Pulley Tightening Sequence
      GTY792096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      NOTE:

      Tighten the 2 nuts and 2 bolts in the order shown in the illustration.

      Nut, Bolt

      Torque: 24.5 N.m (250 kgf/cm, 18 ft.lbf)

    3. Connect the connector.
      GTY775413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the suction hose sub-assembly and connecting part of the compressor assembly with pulley.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the suction hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction hose sub-assembly to the compressor assembly with pulley with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      GTY775412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the suction hose sub-assembly.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
  4. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the discharge hose sub-assembly and connecting part of the compressor assembly with pulley.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the discharge hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the discharge hose sub-assembly to the compressor assembly with pulley with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      NOTE:
      • Do not apply excessive force to the discharge hose sub-assembly.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
      GTY827344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 1

  6. INSTALL NO. 2 AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. INSTALL AIR CLEANER SUPPORT BRACKET ASSEMBLY
    1. Install the air cleaner support bracket assembly with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY775420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 13 CONNECTOR HOLDER
    1. Attach the clamp to install the No. 13 connector holder to the air cleaner support bracket assembly.
      GTY810715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Connect the connector.
  9. INSTALL SUCTION HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the suction hose sub-assembly and air conditioning tube and accessory assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the air conditioning tube and accessory assembly.

      Compressor Oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the suction hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction hose sub-assembly to the air conditioning tube and accessory assembly with the nut.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      NOTE:
      • Do not apply excessive force to the suction hose sub-assembly and air conditioning tube and accessory assembly.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
      GTY775419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL AIR CLEANER WITH ELEMENT ASSEMBLY RH

    Refer to PROCEDURE - Step 128 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 128 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 128 [10/2020 - 10/2023]

  11. INSTALL AIR CLEANER WITH ELEMENT ASSEMBLY LH

    Refer to PROCEDURE - Step 127 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 127 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 127 [10/2020 - 10/2023]

  12. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Install the radiator support to crossmember brace sub-assembly RH with the 2 bolts.
      GTY834649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  13. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Install the radiator support to crossmember brace sub-assembly LH with the 2 bolts.
      GTY837321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  14. INSTALL FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 1

  15. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 5

  16. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 9

  17. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 3

  18. WARM UP ENGINE

    Refer to PROCEDURE - Step 6

  19. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 7

  20. INSTALL OIL PAN PROTECTOR

    Refer to PROCEDURE - Step 17

  21. CONNECT NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 17

  22. INSTALL LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 8

  23. INSTALL UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 9

  24. INSTALL RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 10

  25. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 192 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 192 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 193 [10/2020 - 10/2023]
