Components [12/2017 - 10/2023]

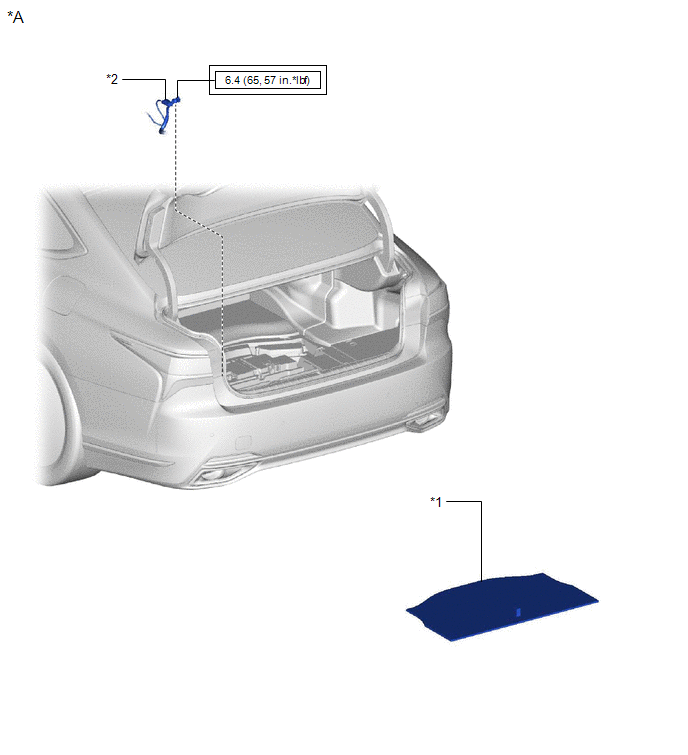

| *A | w/ Hands Free Power Trunk Lid | - | - |
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

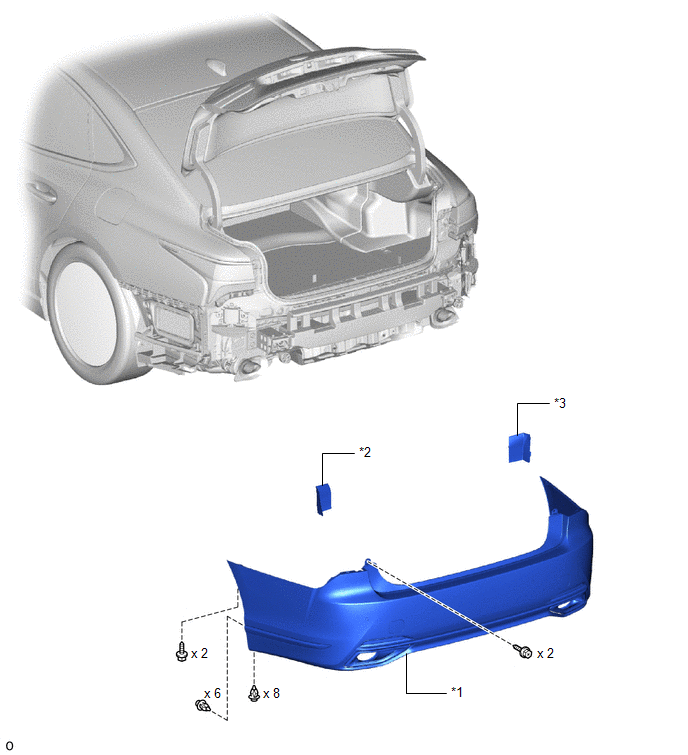

| *1 | REAR BUMPER ASSEMBLY | *2 | REAR COMBINATION LIGHT COVER LH |
| *3 | REAR COMBINATION LIGHT COVER RH | - | - |

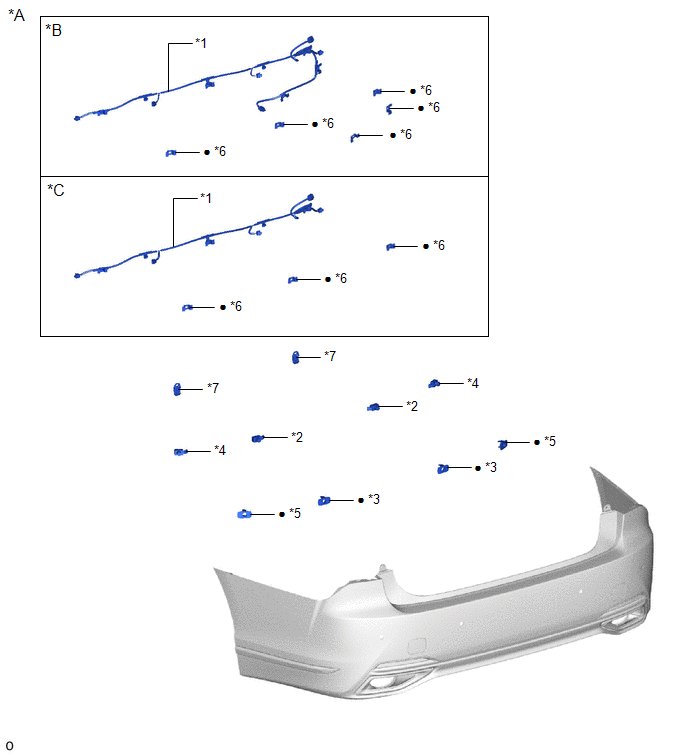

| *A | w/ Parking Support Brake System | *B | w/ Hands Free Power Trunk Lid |
| *C | w/o Hands Free Power Trunk Lid | - | - |
| *1 | NO. 3 LUGGAGE ROOM WIRE | *2 | REAR CENTER ULTRASONIC SENSOR |
| *3 | REAR CENTER ULTRASONIC SENSOR RETAINER | *4 | REAR CORNER ULTRASONIC SENSOR |
| *5 | REAR CORNER ULTRASONIC SENSOR RETAINER | *6 | REAR ULTRASONIC SENSOR CLIP |
| *7 | ULTRASONIC SENSOR CLIP | - | - |
| • | Non-reusable part | - | - |

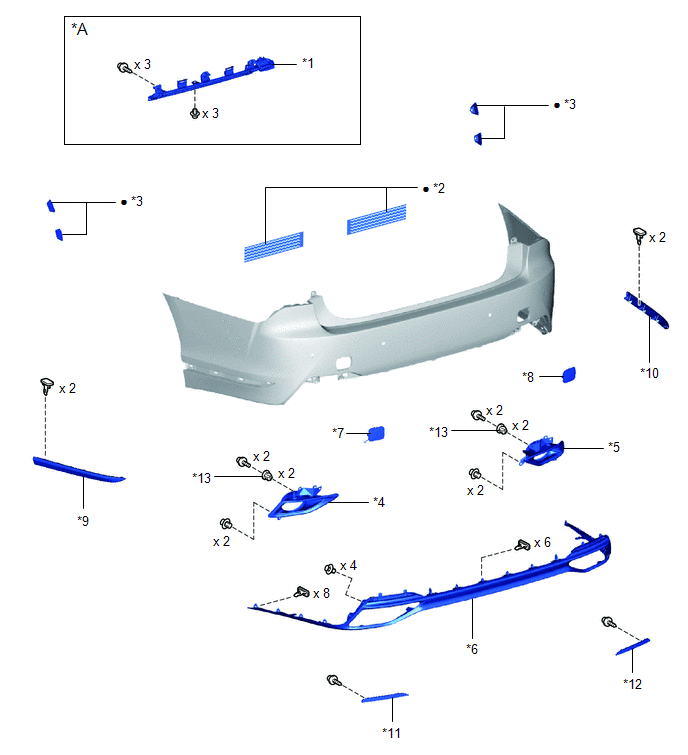

| *A | w/ Hands Free Power Trunk Lid | - | - |
| *1 | KICK DOOR CONTROL BRACKET | *2 | NO. 1 MOULDING TAPE |
| *3 | REAR BUMPER ARM | *4 | REAR BUMPER EXTENSION SUB-ASSEMBLY LH |
| *5 | REAR BUMPER EXTENSION SUB-ASSEMBLY RH | *6 | REAR BUMPER LOWER COVER |
| *7 | REAR BUMPER PIECE LH | *8 | REAR BUMPER PIECE RH |
| *9 | REAR BUMPER SIDE MOULDING LH | *10 | REAR BUMPER SIDE MOULDING RH |
| *11 | REFLEX REFLECTOR ASSEMBLY LH | *12 | REFLEX REFLECTOR ASSEMBLY RH |
| *13 | GROMMET | - | - |
| • | Non-reusable part | - | - |

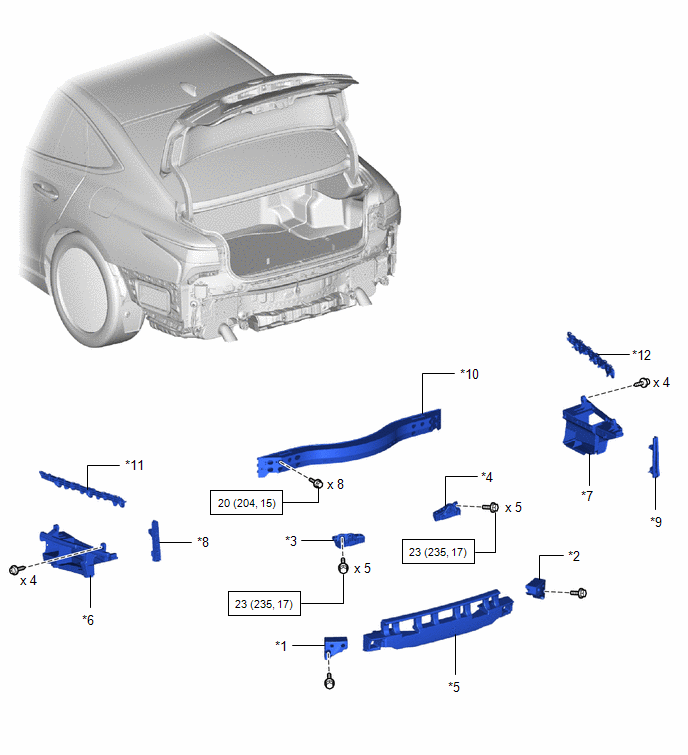

| *1 | REAR BUMPER ARM REINFORCEMENT LH | *2 | REAR BUMPER ARM REINFORCEMENT RH |
| *3 | REAR BUMPER BAR CORNER REINFORCEMENT LH | *4 | REAR BUMPER BAR CORNER REINFORCEMENT RH |
| *5 | REAR BUMPER ENERGY ABSORBER | *6 | REAR BUMPER LOWER RETAINER LH |
| *7 | REAR BUMPER LOWER RETAINER RH | *8 | REAR BUMPER LOWER SIDE RETAINER LH |
| *9 | REAR BUMPER LOWER SIDE RETAINER RH | *10 | REAR BUMPER REINFORCEMENT SUB-ASSEMBLY |
| *11 | REAR BUMPER SIDE SUPPORT LH | *12 | REAR BUMPER SIDE SUPPORT RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
