System Diagram [12/2017 - 10/2020]

HINT:

Inspect the communication function by CAN communication system.

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2017 - 09/2018] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2018 - 10/2020]

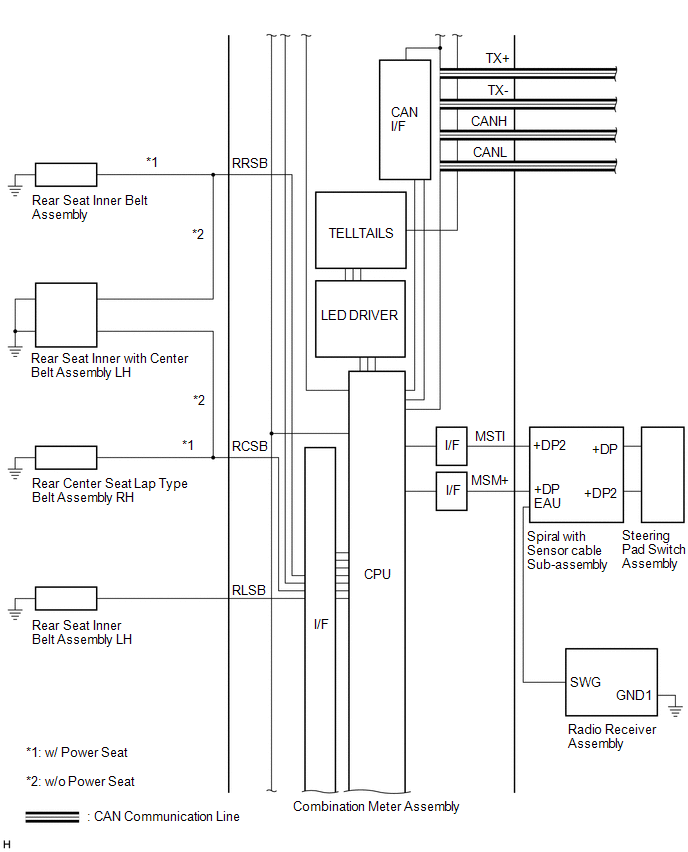

Fig 1: Meter/Gauge System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

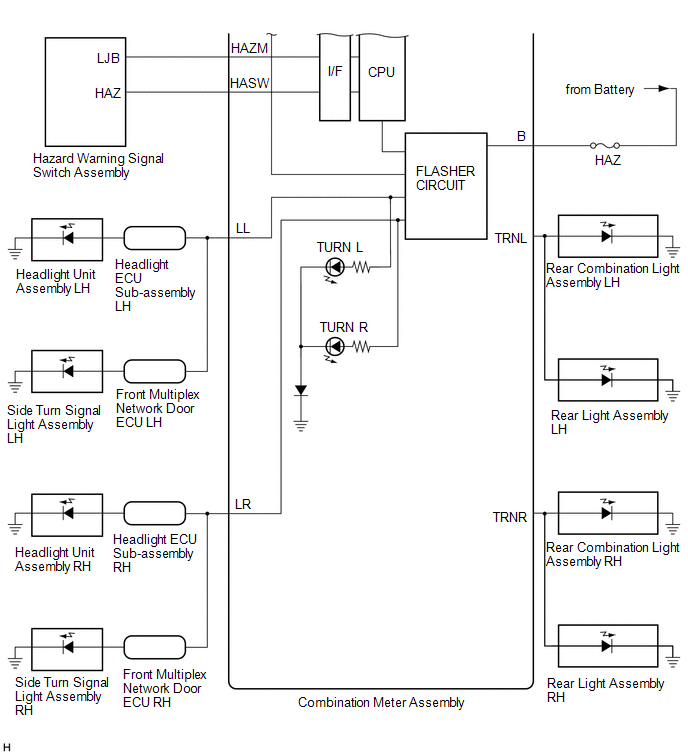

Fig 2: Meter/Gauge System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

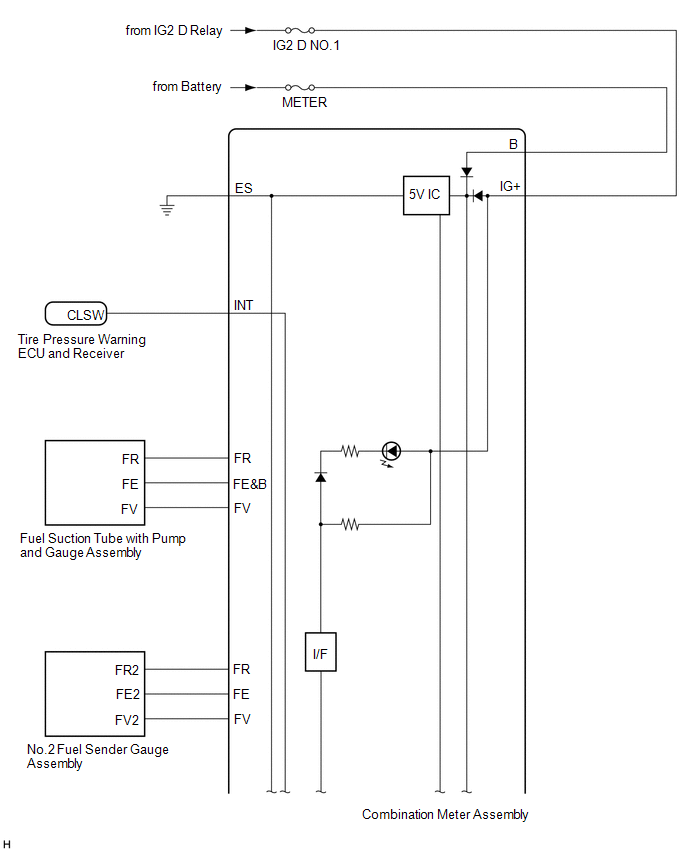

Fig 3: Meter/Gauge System Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

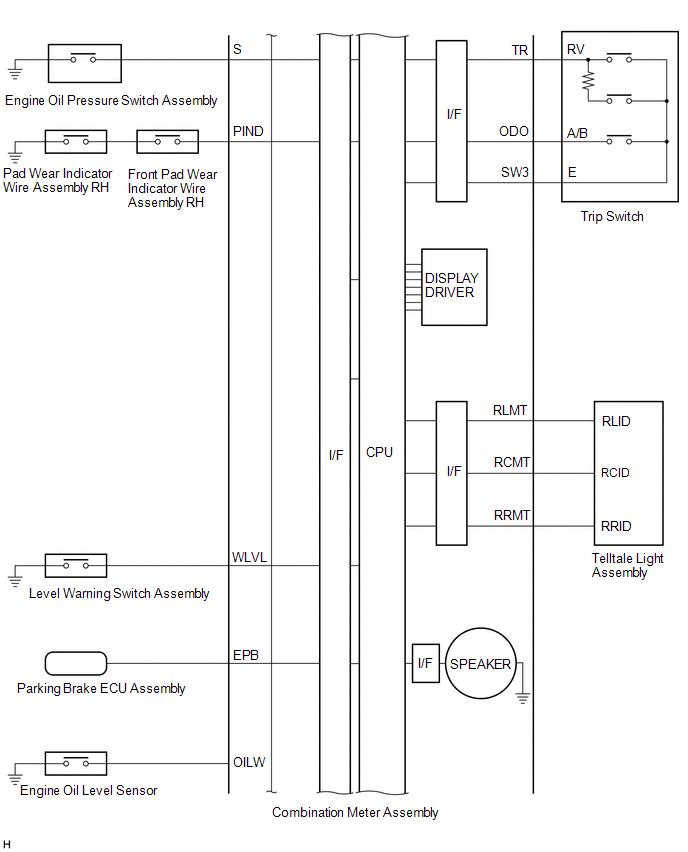

Fig 4: Meter/Gauge System Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Speed Signal Circuit

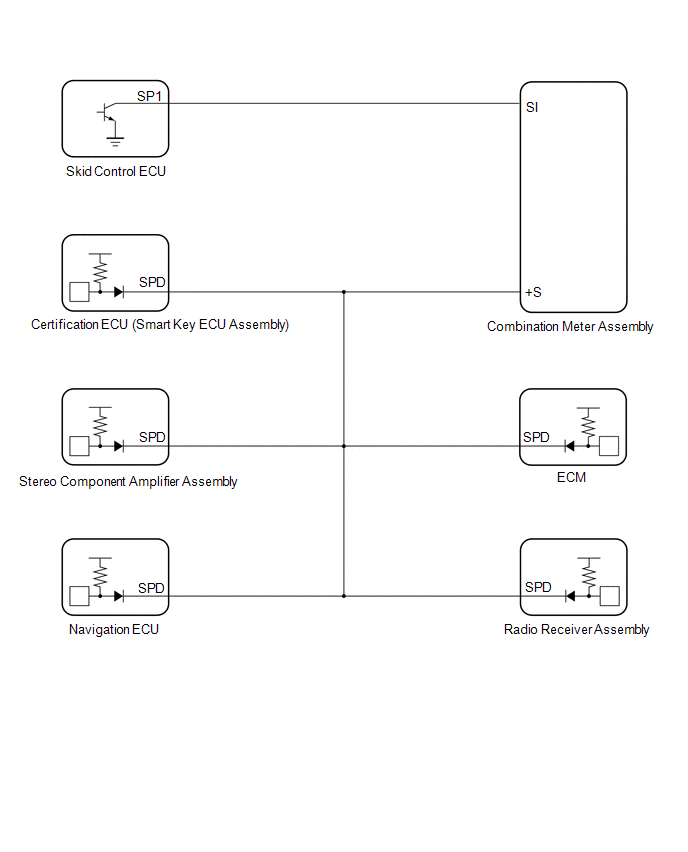

Fig 5: Meter/Gauge System Diagram (Speed Signal) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

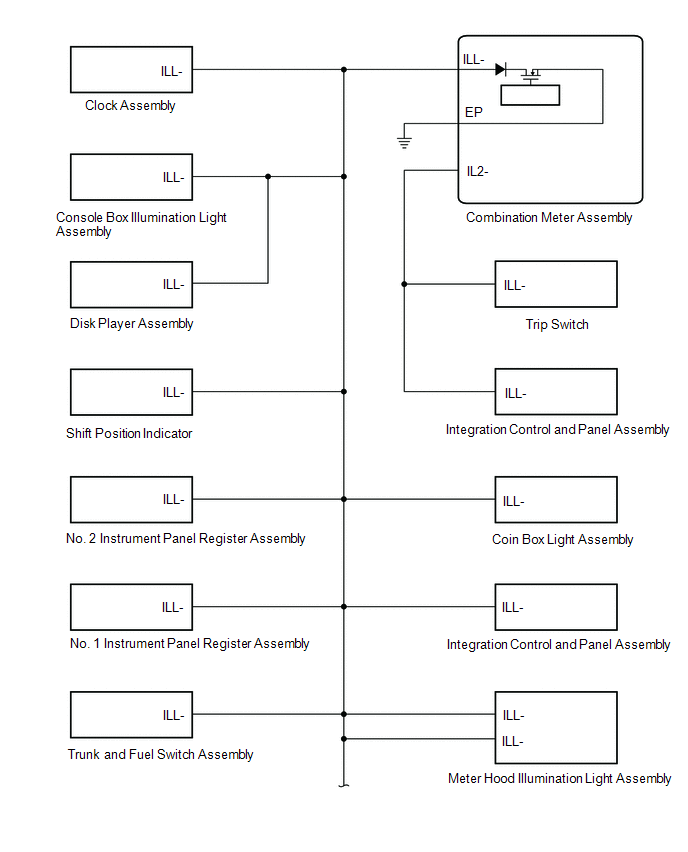

Fig 6: Meter/Gauge System Diagram (Speed Signal; 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

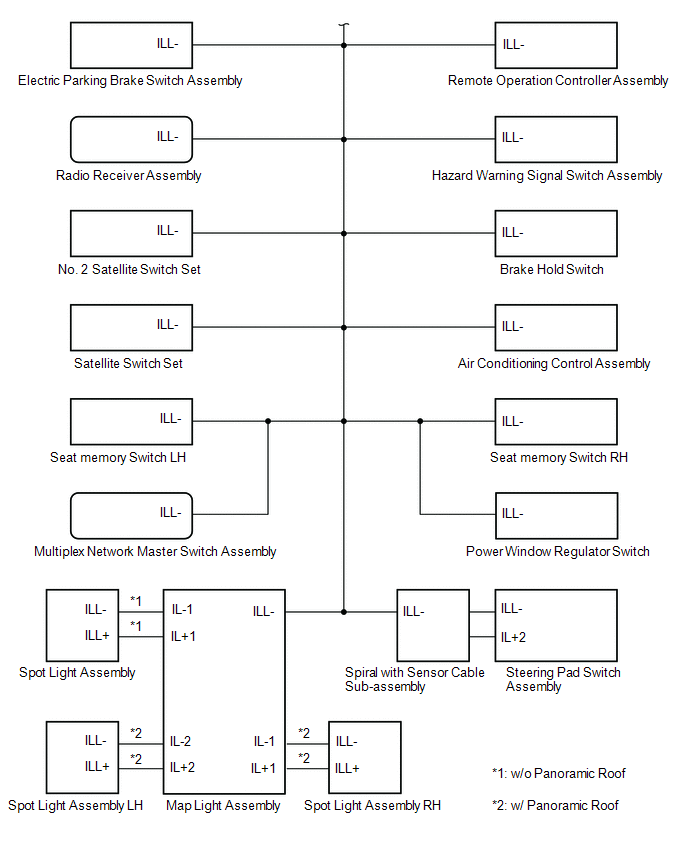

Fig 7: Meter/Gauge System Diagram (Speed Signal) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
