Components [05/2023 - ]

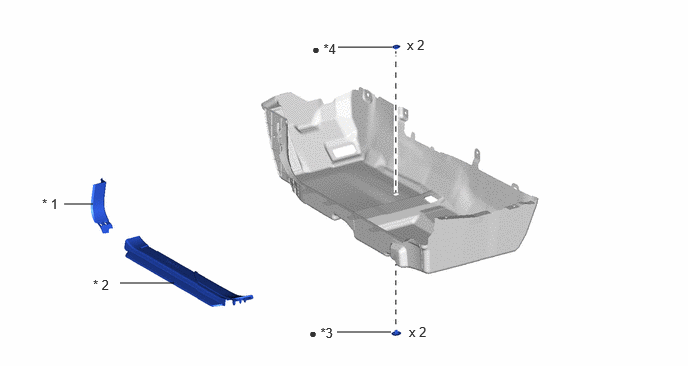

Fig 1: Mat Set Plate Replacement Components
GTY1241932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR OPENING TRIM COVER LH *2 FRONT DOOR SCUFF PLATE LH
*3 MAT SET LOWER PLATE *4 MAT SET UPPER PLATE
• Non-reusable part - -
